6. MCS System Configuration via MCS Editor
6.1 System conditions
• PC Pentium 90 MHz or faster
• 8 MB RAM at least
• PC with Windows 95, 98 or Windows NT/2000 operating system
• 1 CD-ROM drive
• 1 fixed disk with 1 MB of free storage location
• 1 mouse, track ball or touchscreen
• 1 serial RS 232 interface
• 1 keyboard
• 1 corresponding monitor
6.2 Installation of the MCS Editor Software
• Switch on your PC.
• Start your "Windows"-programme
• Put the CD-ROM into the drive.
• Choose "Execute" in the "Start" menu.
• Choose the corresponding drive and program:
1. If you want to start the MCS-Editor with the CD-ROM choose the editor in the Exe. file in German (MCSeditd), English
(MCSedite) or French (MCSeditf).
2. If you want to copy the MCS-Editor on your PC and start from the fixed disk, choose the corresponding language file
(German, English, French) and start the Setup. Follow the instructions on the screen or write the following in the command
line: D:\Englisch\setup.exe (if "D" is your CD-ROM drive)
• Click "OK" and follow the instructions on the screen.
6.3 Connection
• Connect the service port of the MCS 100 via a standard RS 232 connecting cable to the serial RS 232 interface of your PC.
• At the factory the serial interface has been set to "COM 2". For changes refer to chapter 6.7.
6.4 MCS 100 - Creation of a new configuration
48
As soon as all parameters have been entered, you must press both buttons (4) and (5)
simultaneously for saving. The system shows a saving message and carries out a system check
automatically. At last the default screen will appear.

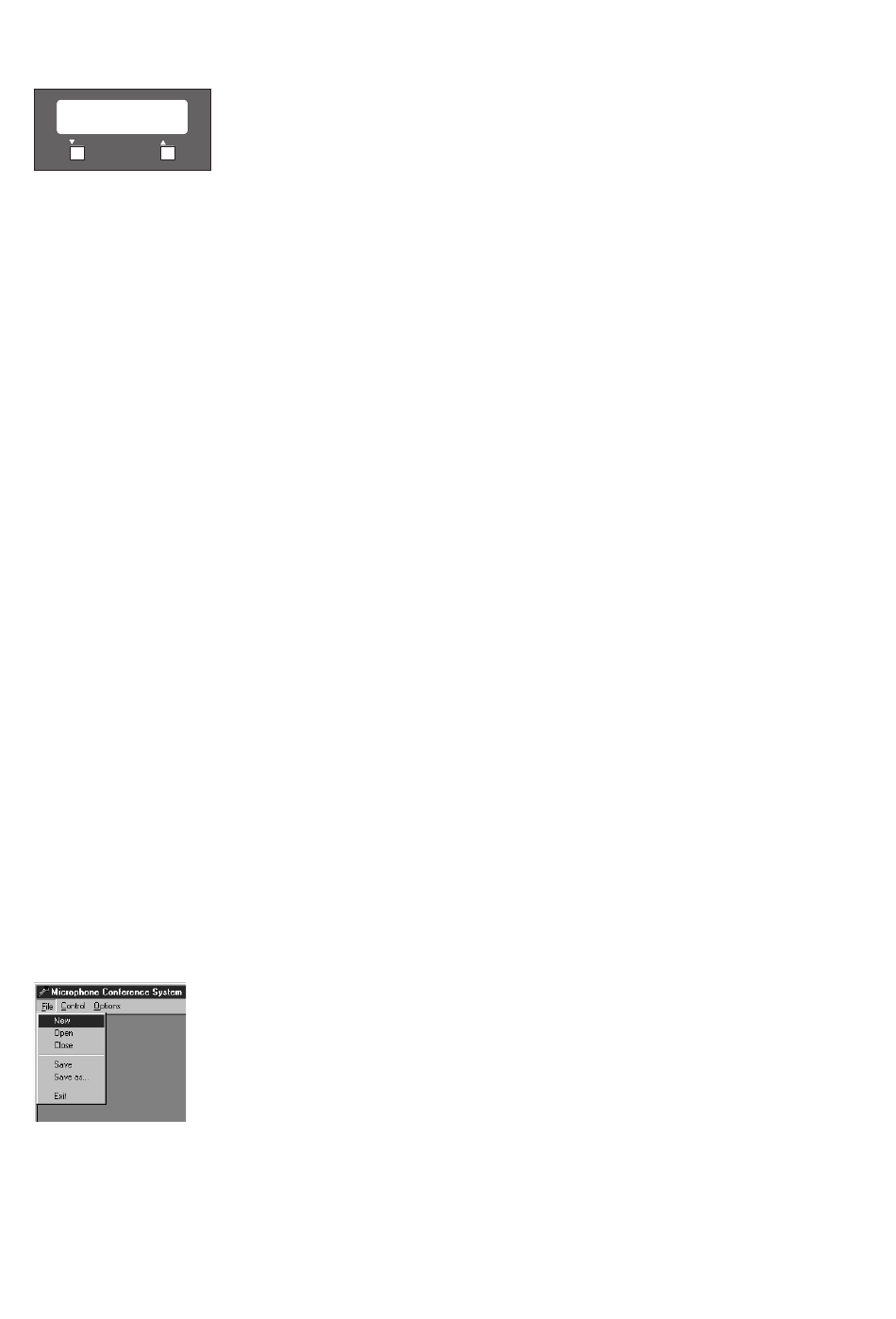

• Start the installed MCS-Editor Software via the "Programs" start menu.
• Choose the "File" menu and click the "New" command.
