Introduction

Thank you for selecting the digital wireless Quinta conference system. Please take some time to read
carefully through this manual before setting up the equipment.
Please refer also to the extensive "Quinta Conference System" manual and "Quinta Conference
Software" manual, which you will find in the internet at www.beyerdynamic.com.
Please also refer to the supplied "Safety Information" booklet.
2.

Controls and Indicators

2.1

Quinta CU Control Unit

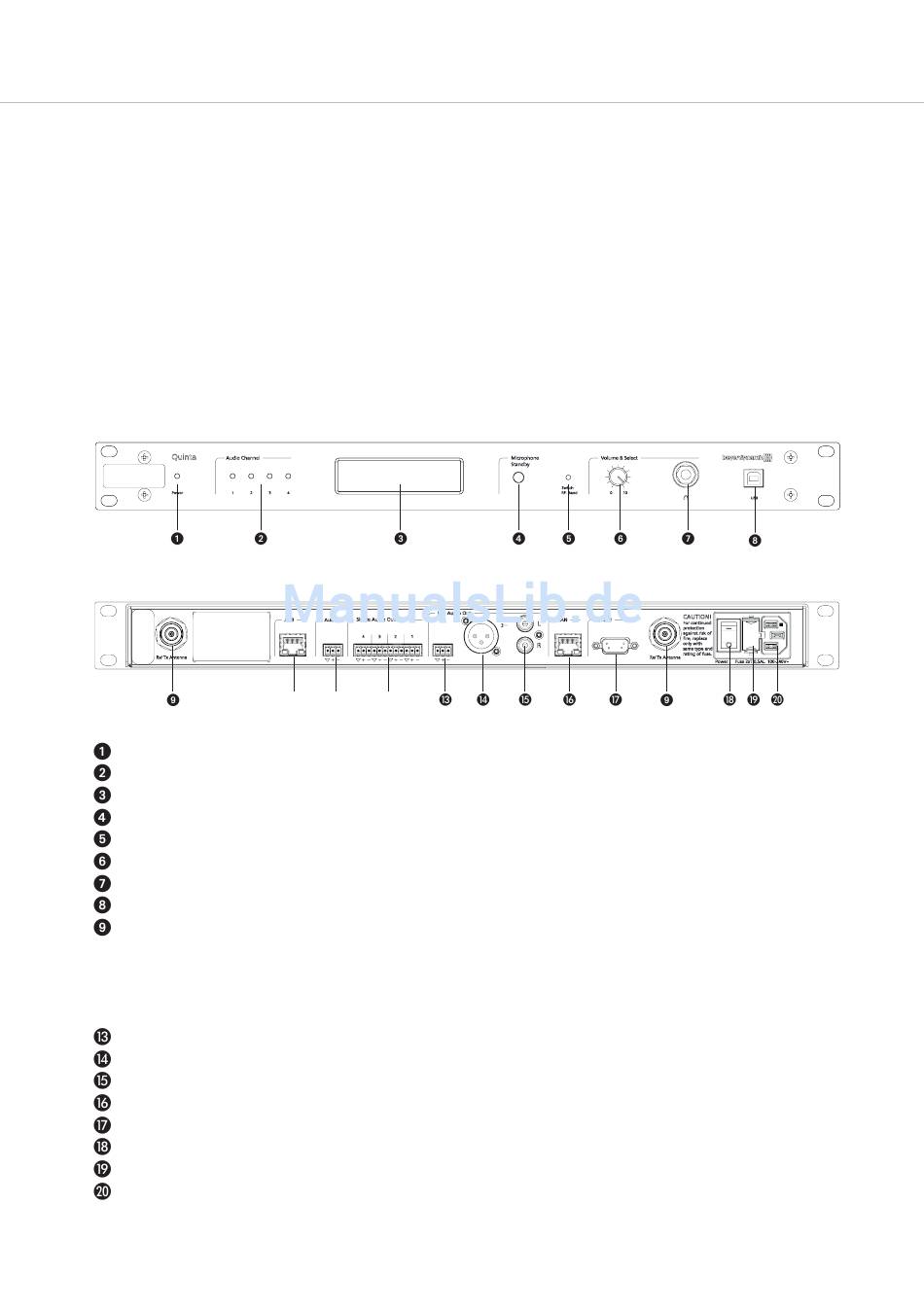

Front View
Rear View
Power on LED
Audio channel LEDs 1 to 4 (white = channel vacant; red = channel occupied)
Display to indicate operating mode, channel, headphone volume
Standby button to turn off all microphone units centrally
Push-button for frequency band selection
Volume control for headphone / channel
Headphone connection
USB connection
Antenna connections
µ AVB (Audio Video Bridging) network connection for digital audio signals via CAT5 cables, RJ45
¸ Audio input (Audio IN) for the connection of external sound sources, 3-pin Phoenix terminal strip,
balanced
¹ Audio output, individual channels, 4 x 3-pin Phoenix terminal strips, balanced
Audio output Mix (Master), 3-pin Phoenix terminal strips, balanced
Audio output Mix (Master), 3-pin XLR, balanced
Audio output Mix (Master), RCA, unbalanced
LAN connection for PC / network, RJ 45
Connection for media control system / PC / network, RS 232
On/Off switch
Fuse
Mains connection
