7. MCS 1036 / MCS 1038 Microphone Units for Voting
The MCS 1036 delegate microphone units and the MCS 1038 chairman microphone unit are available for conferences with a
voting afterwards.
7.1 Connection
The microphone units are connected in a single-cable principle,
looping from one unit to the next, i.e. connect the first
microphone unit to the line 1 connection (9) of the MCS 100,
connect the second microphone to the first microphone unit
until all of the microphone units are connected.
7.2

Controls and Indicators

7.2.1 MCS 1036 Delegate Microphone Unit
(a)
(a) Microphone button with LED for switching on/off or
request-to-talk
1 Present button with LED to confirm presence and for
voting "--" (= Strongly disagree) in Opinion Polls or
No. "1" in Multiple Choice
2 Button with LED for voting "Yes" or "-" (= Disagree) in
Opinion Polls or No. "2" in Multiple Choice.
52
MCS 100
MCS 1036
oder / or
MCS 1038

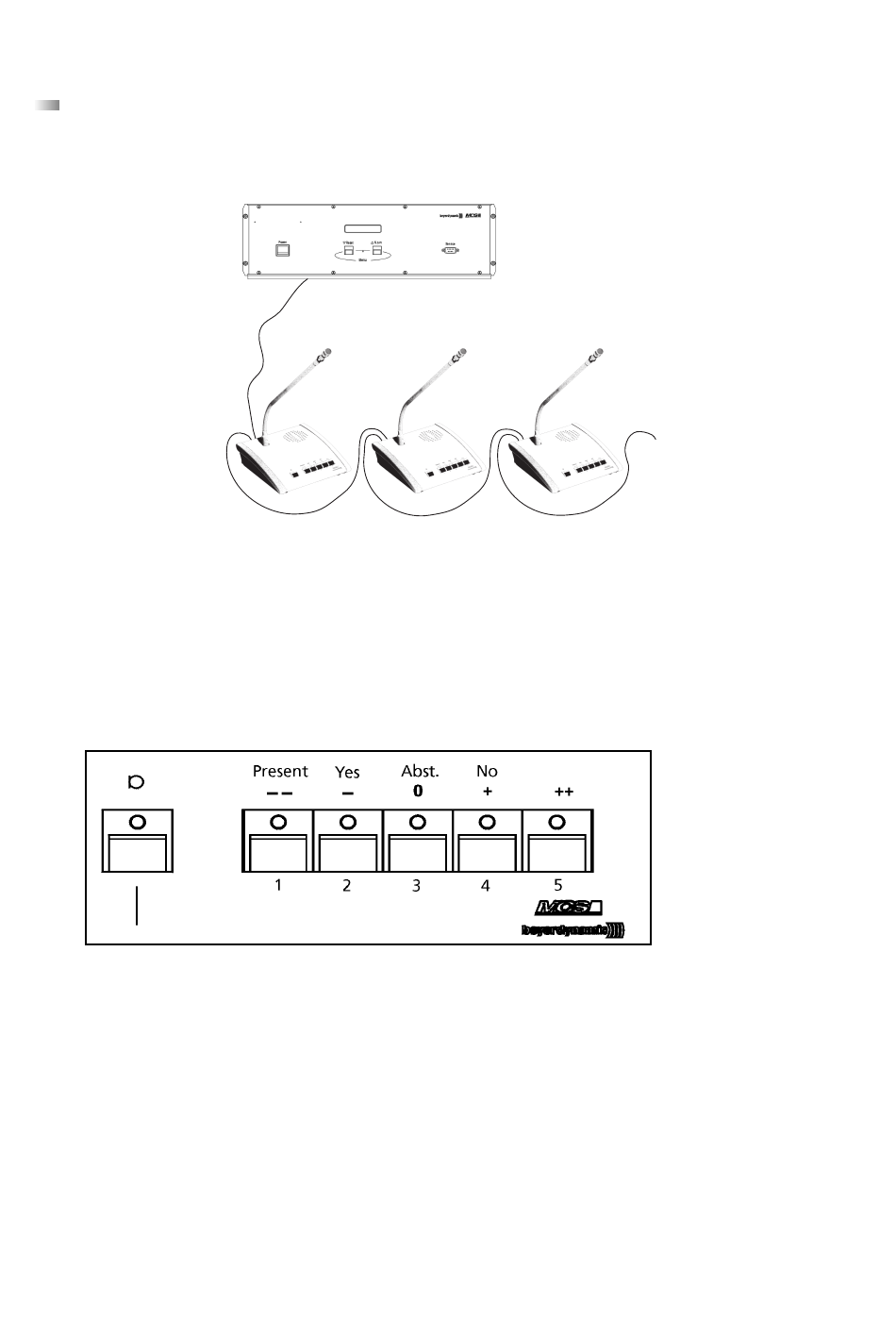

Systemanschlußkabel CA 1402
System Connecting Cable CA 1402
Note: The first microphone unit must use the CA 1514 cable.
For connecting the microphone units after this use the CA 1402
cable.
Note: It is possible to connect 32 microphone units per line (9)
and (10) at maximum.
3 Button with LED for voting "Abstention" or "0"
(= Neutral) in Opinion Polls or No. "3" in Multiple
Choice.
4 Button with LED for voting "No" or "+" (= Agree) in
Opinion Polls or No. "3" in Multiple Choice.
5 Button with LED for voting "++" (Strongly Agree) in
Opinion Polls or No. "5" in Multiple Choice. This LED
will flash in voting pauses.
