Important
Before making any type of adjustment, activa-
te all the safety devices provided and decide
whether staff at work and those in the vicinity
should be informed. In particular, turn off the
gas supply tap, cut off the electricity supply
using the master switch and prevent access to
all devices that might cause unexpected he-
alth and safety hazards if turned on.

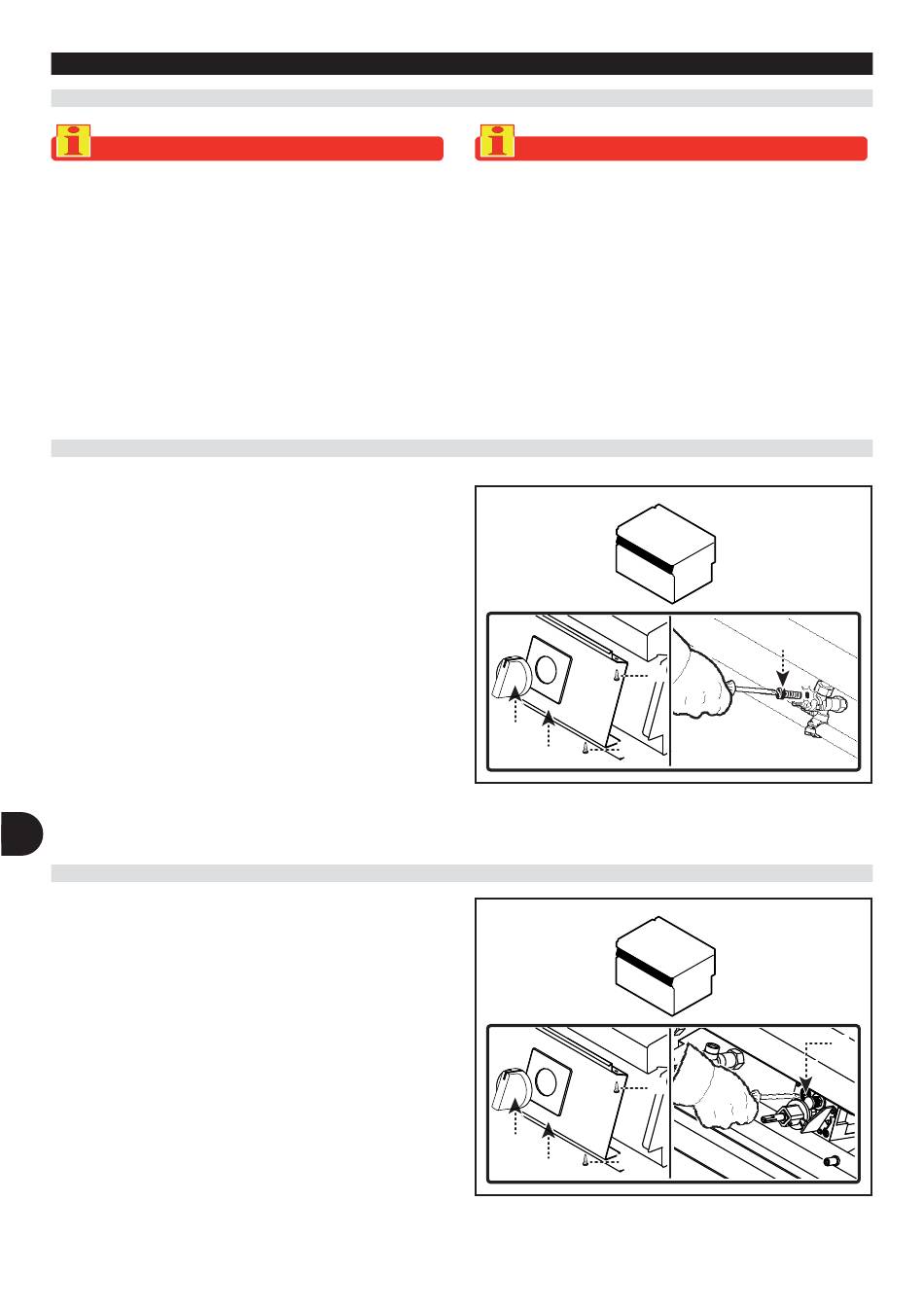

ADJUSTING GAS CONTROL VALVE MINIMUM SETTING (TOP BURNERS)

To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Take out the screws (C) and take down the
3)
control panel (B).
Unscrew the nozzle (D) and replace it with
4)
the one suitable for the type of gas in use (see
table at back of manual).
Fully screw the injector.
5)
After making the setting, seal the screw with
6)
paint.
Replace the control panel (B) and the knob
7)
(A) on completion of the operation.
GB
To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Take out the screws (C) and take down the
3)
control panel (B).
Unscrew the nozzle (D) and replace it with
4)
the one suitable for the type of gas in use (see
table at back of manual).
Fully screw the injector.
5)
After making the setting, seal the screw with
6)
paint.
Replace the control panel (B) and the knobs
7)
(A) on completion of the operation.
3301360_inst_GB_rev.1

ADJUSTMENTS

INSTRUCTIONS AND WARNING FOR ADJUSTMENTS

ADJUSTING GAS VALVE MINIMUM SETTING (OVEN)

Importante Wichitig Important Importante Important
These adjustments are only required if the
type of gas to be connected is diff erent from
that used for testing after the conversion pro-
cedure has been carried out (see pag. 11).
Before making these adjustments, check that
the gas supply pressure is the same as the ra-
ted pressure for the type of gas in use (see ta-
ble at back of manual).
A
B
A
B
- 14 -
D
C
C
C
C
D
D
ENGLISH
