Important
This adjustment is only required if the type
of gas to be connected is diff erent from that
used for testing, after the oven burner air
bushing has been replaced (see page 19). Be-
fore making this adjustment, check that the
gas supply pressure is the same as the rated
pressure for the type of gas in use (see table
at back of manual).
To carry out this operation, proceed as follows.
Turn off the gas supply tap.

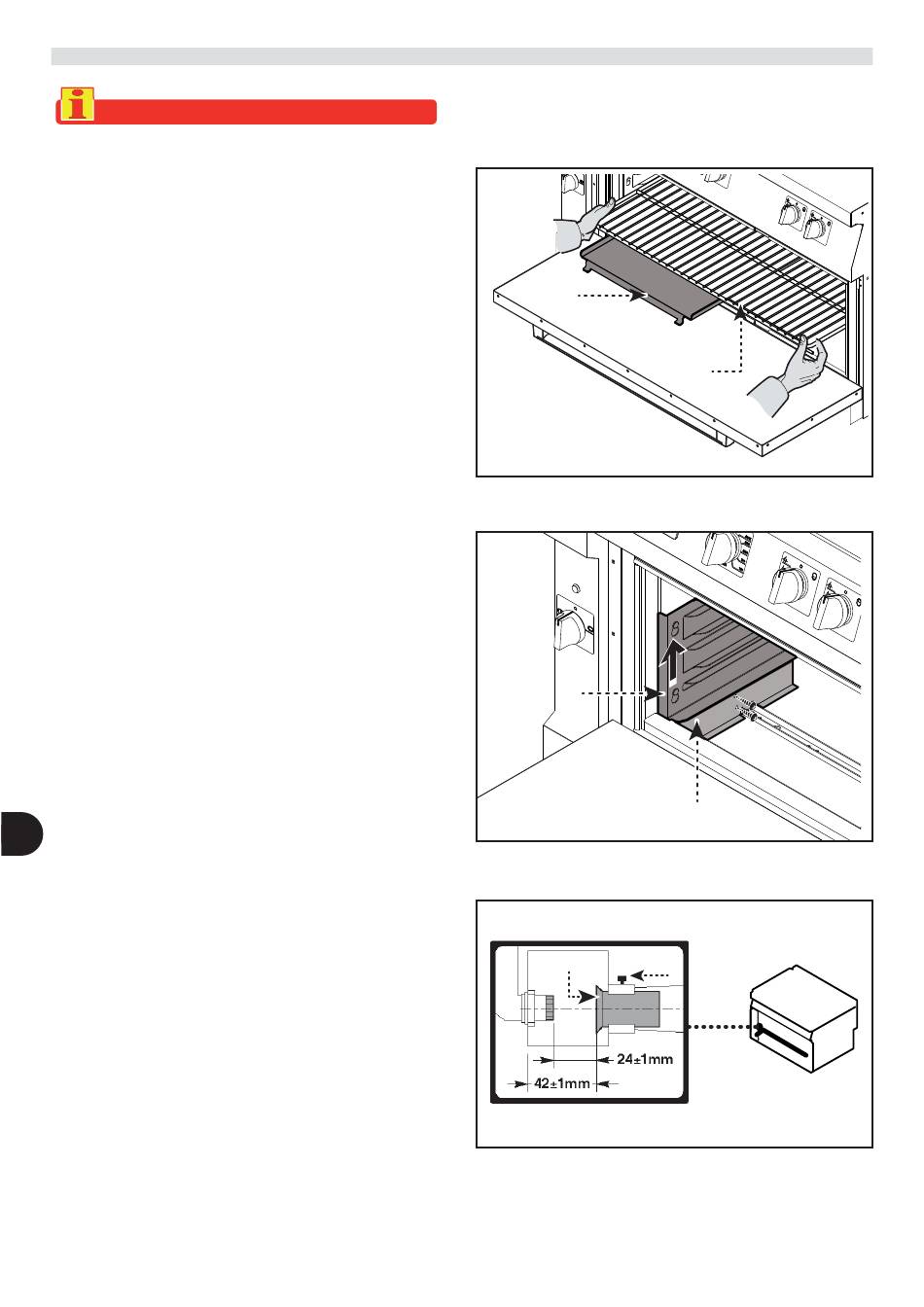

1)
Remove the bottom plates (A) and the grid
2)
(B) from the oven.
Remove the rack (C).
3)
Undo the screws and remove the guard (D).
4)
GB
Undo the locking screw (E).
5)
Set the bush (F) in contact at the distance
6)
shown in the fi gure.
Tighten the screw (E).
7)
Replace the panel (D) and the rack (C) on
8)
completion of the operation.
3301360_inst_GB_rev.1

ADJUSTING OVEN BURNER PRIMARY AIR

A
C
F
- 16 -
B
D
E
