Controls, Indicators and Connectors

The following paragraph illustrates the Controller control panel and
interconnection panel. More details are contained in the appendix
"Technical Information".

Front Panel Description

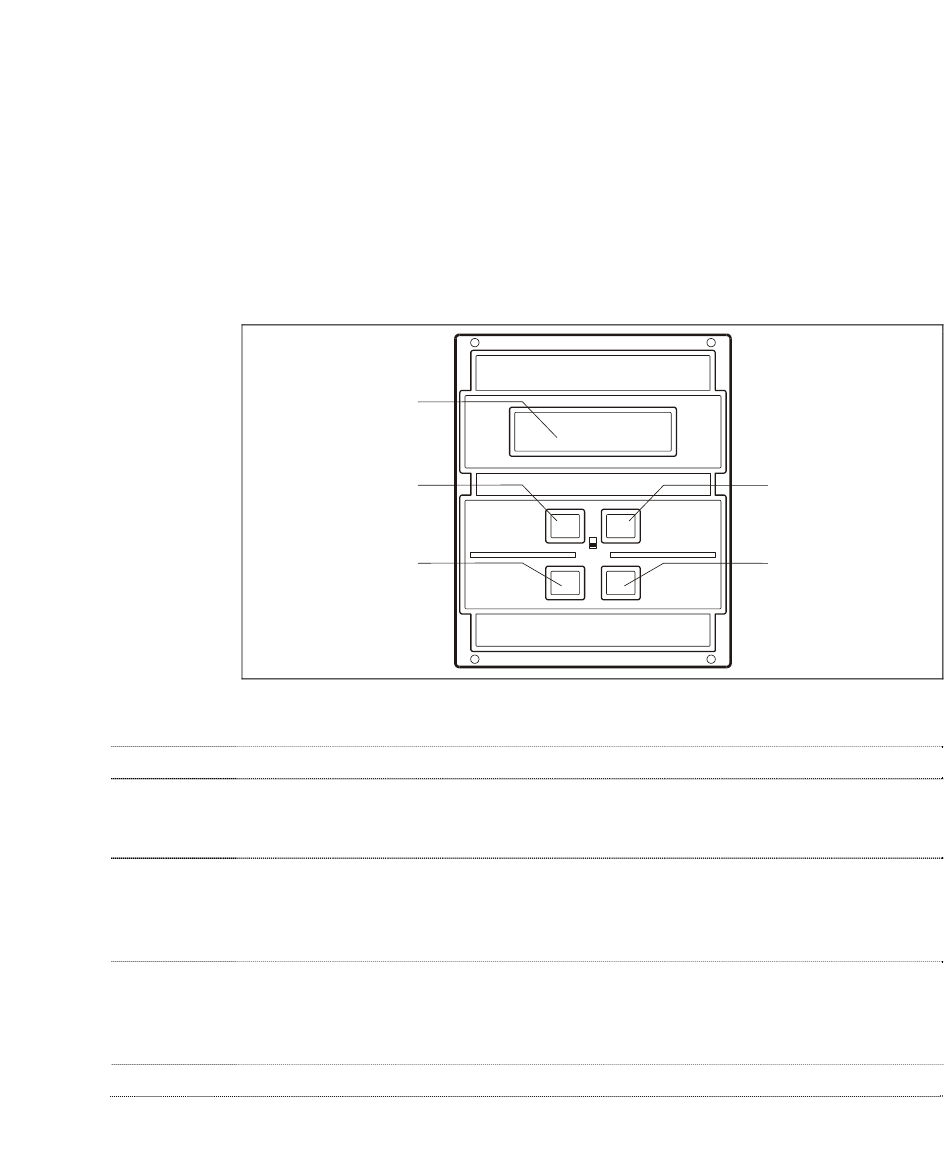

Figure 2
1 Keyboard push-button to recall on the display the cycle number, cycle time and pump life.
2 Keyboard push-button for LOW SPEED mode selection. It is active only when the front panel
operation has been selected. Pressed once, the pump runs at "stand-by" speed. To unselect
the mode, press the push-button again.
3 Keyboard push-button to recall on the display the pump current, pump temperature, pump
power and rotational speed. It is always active regardless of the operating mode selected.
Push-buttons 3 and 1, if pressed together for at least 2 seconds, put the controller in a routine
where it is possible to program some operation parameters.
4 Keyboard push-button for START, STOP/RESET mode selection. It is active only when the
front panel operation has been selected. By pressing once the starting phase begins; if
pressed again it stops the pump. If the pump has been stopped automatically by a fault, this
push-button must be pressed once to reset the controller and a second time to restart the pump.
5 LCD back-lighted alphanumeric display: dot matrix 2 lines x 16 characters.
