16 Instructions for Use
Use

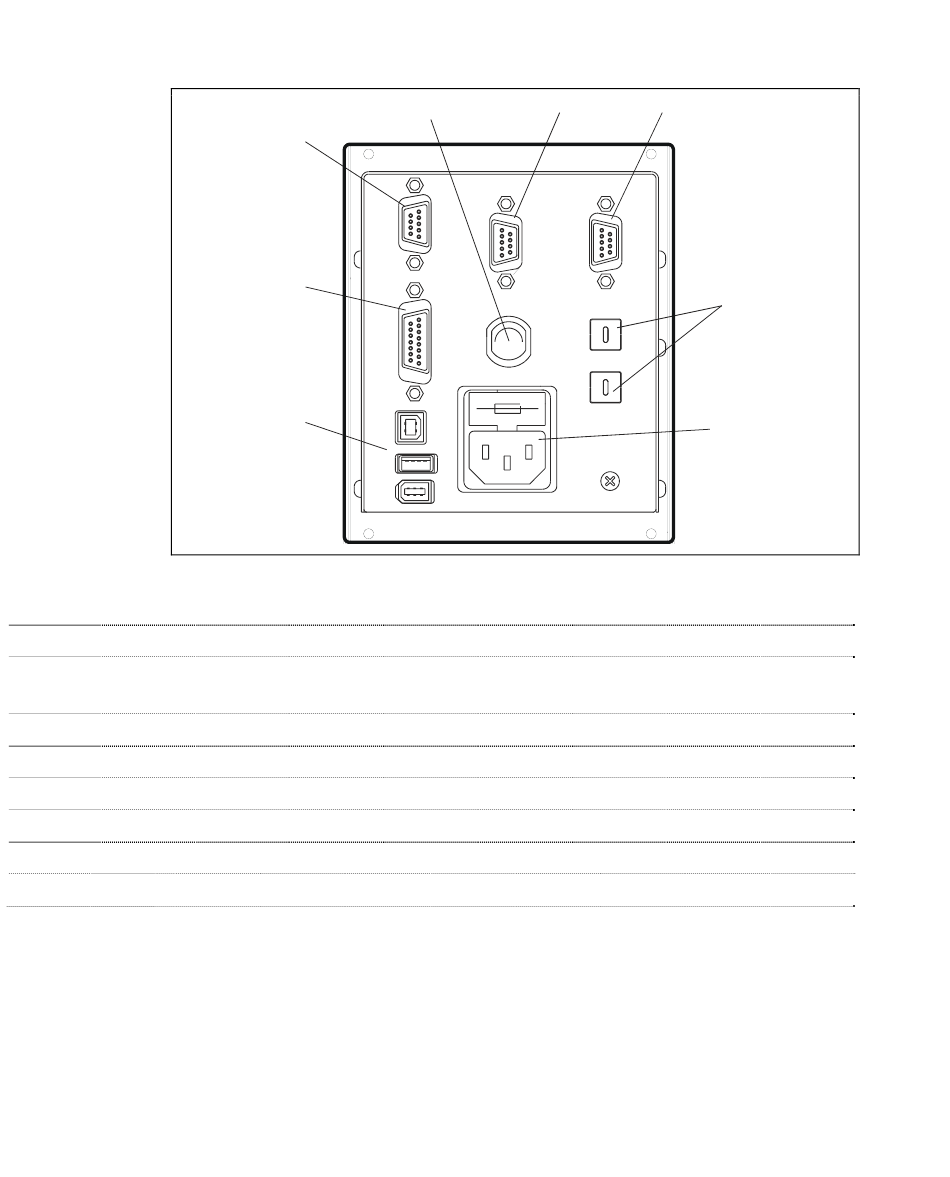

Figure 3
1 Logic input signals connectors (mating connector supplied with link).
2 Logic output signals connector and pump frequency monitor plus programmable analog
output.
3 Power output connector (24 Vdc for pump cooling fan, Vent Valve and Gauge).
4 Controller power entry module consisting of mains fuses, mains socket and EMC filter.
5 Rotary switches for Profibus address setting.
6 Profibus (Optional).
7 Remote control serial connector.
8 Pump cable (5m long).
202/294
8
1
2
3
Controller Turbo-V 301-AG Rear panel
Turbo-V 301-AG Rack Controller User Manual / 87-900-982-01
7
6
5
4
(F)
