All the logic output from the controller must be connected at P2
mating connector. The following table describes the signals available
on the connector.

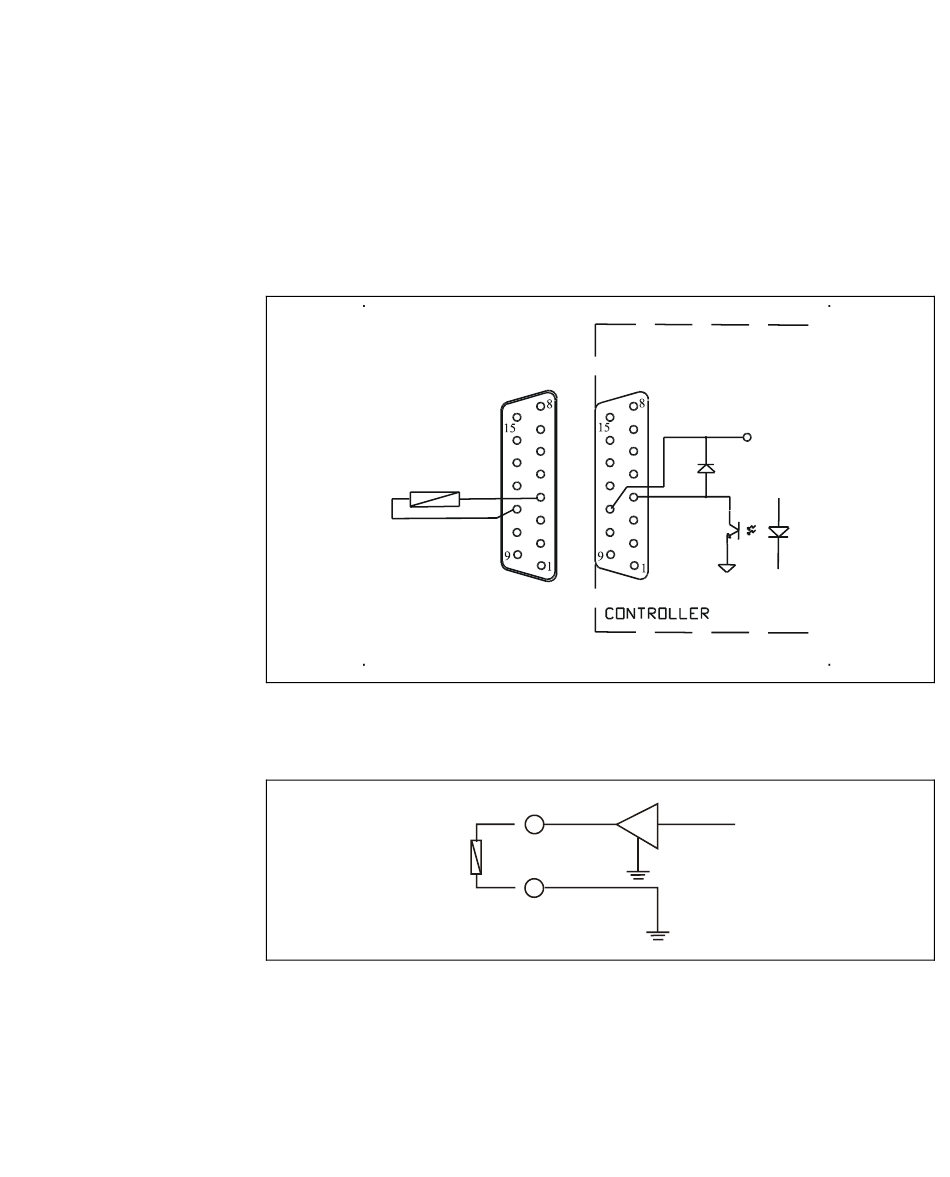

The following figure shows a typical logic output connection (relay
coil) but any other device may be connected e.g. a LED, a computer,
etc., and the related simplified circuit of the controller.
Figure 12
Figure 13
Turbo-V 301-AG Rack Controller User Manual / 87-900-982-01
> 1 K
Digital Output Connection Example
1
> 100 KΩ
2
Analog Output Connection Example
Technical Information
Controller Connection
J 1
+24 V
(F)
17
