17 Technical Information

Profibus Option

Profibus Option

General

The ProfiBus option allow to communicate with the controller as
ProfiBus DP slave device.
The option works as a bi-directional bridge between the ProfiBus
network and the Agilent turbo controller internal link. The interface
provides input data (measures) and output data (commands) to the
controller, and in addiction provides standard and user related
diagnostics, in order to allow the user to manage the exceptions.

Installation

This option is factory installed.

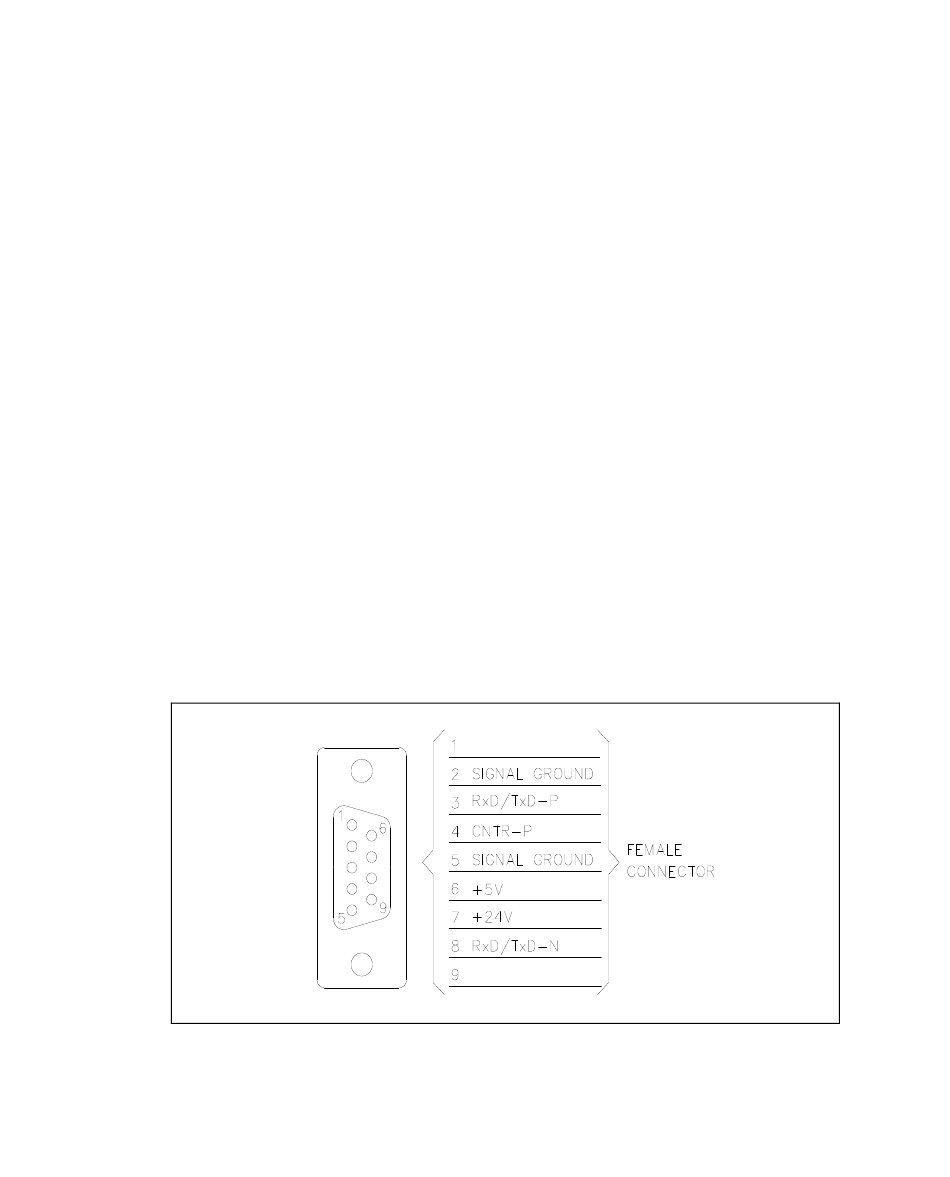

The ProfiBus connector pin-out is reported in the following figure.
Please in order to obtain best performance use ProfiBus certified
cables.
Figure 44
270/294
ProfiBus connector
Turbo-V 301-AG Rack Controller User Manual / 87-900-982-01 (F)
