7.7.

Standard Status Data Structures

Device meets standard protocol according to the standard IEEE488.2. The protocol can be used for
checking of error and status behavior of the device. It enables single-wire transmitting of SRQ
command. The conditions on which SRQ signal (local control request) is sent can be set with
parameters *STB?, *SRE?, *SRE, *ESR?, *ESE?, *ESE a *CLS.

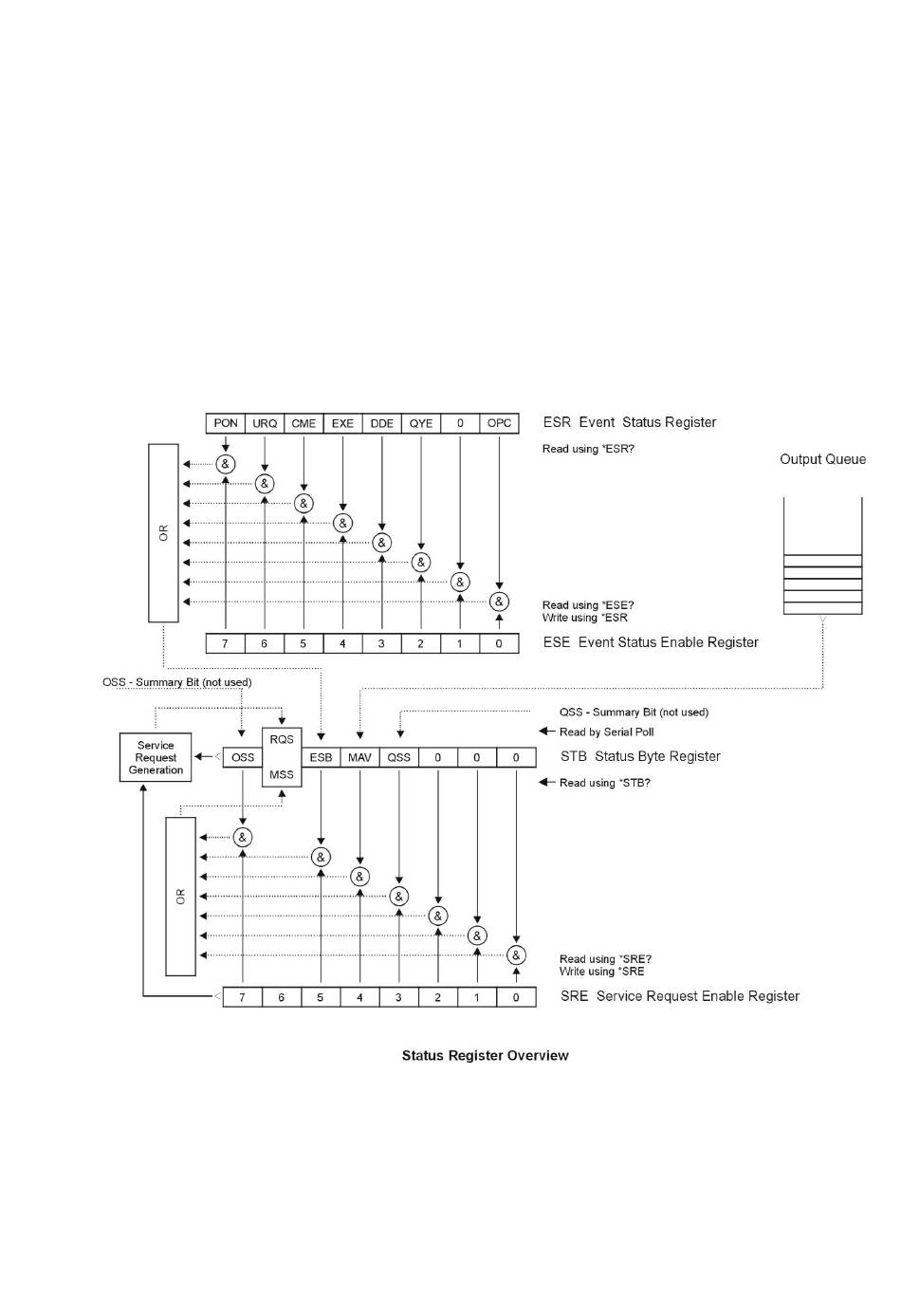

Bild 27 Status Register overview
Status data structure contains following registers:
STB – Status Byte Register
SRE – Service Request Enable Register
ESR – Event Status Register
ESE – Event Status Enable Register
Output Queue
