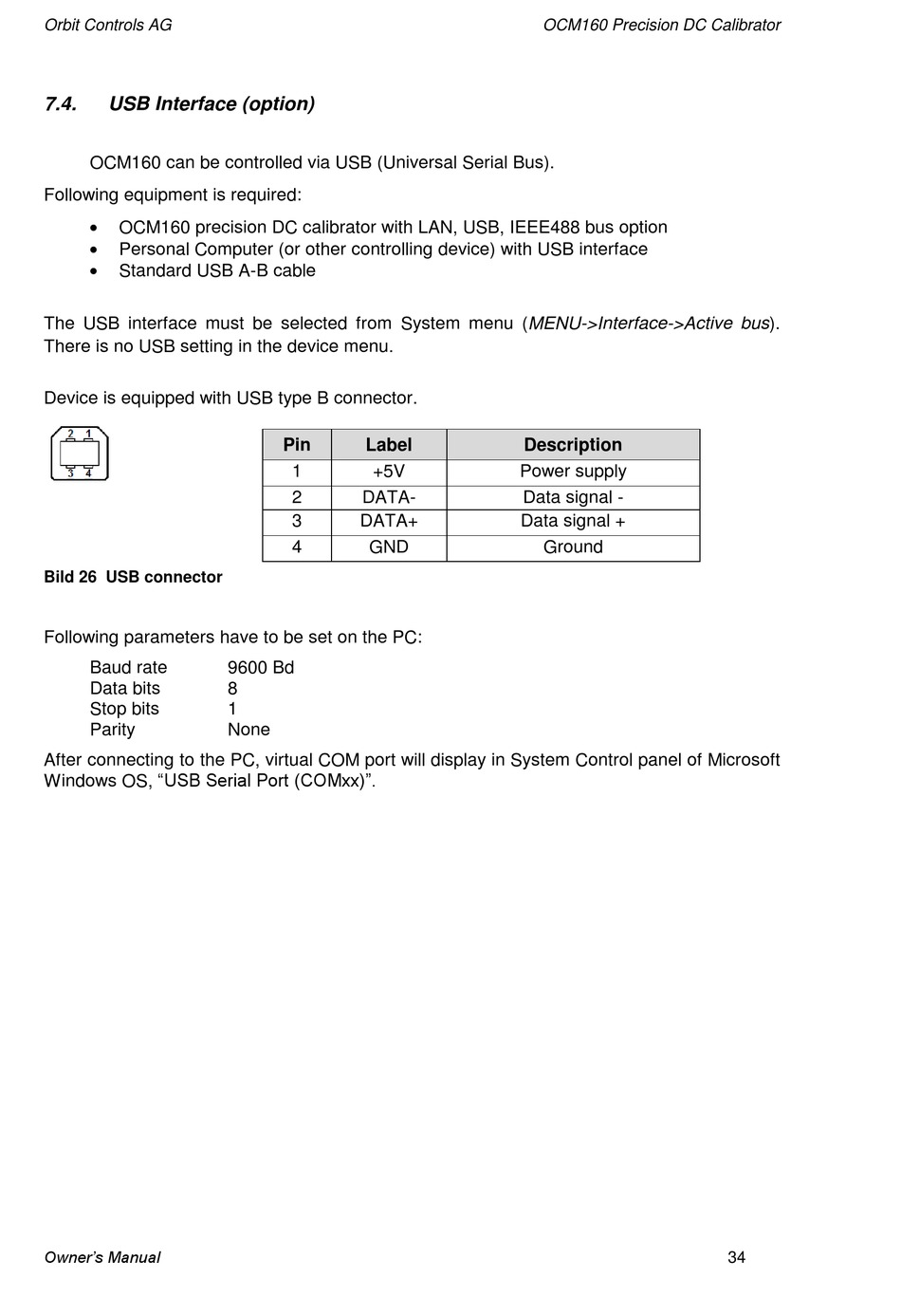

7.4.
USB Interface (option)
OCM160 can be controlled via USB (Universal Serial Bus).
Following equipment is required:
OCM160 precision DC calibrator with LAN, USB, IEEE488 bus option
Personal Computer (or other controlling device) with USB interface
Standard USB A-B cable
The USB interface must be selected from System menu (MENU->Interface->Active bus).
There is no USB setting in the device menu.
Device is equipped with USB type B connector.
Bild 26 USB connector
Following parameters have to be set on the PC:
Baud rate
Data bits
Stop bits
Parity
After connecting to the PC, virtual COM port will display in System Control panel of Microsoft
Windows OS, "USB Serial Port (COMxx)".
Owner's Manual
Pin
Label
1
+5V
2
DATA-
3
DATA+
4
GND
9600 Bd
8
1
None
OCM160 Precision DC Calibrator
Description
Power supply
Data signal -
Data signal +
Ground
