Appendix | Drawings and References for Attachment

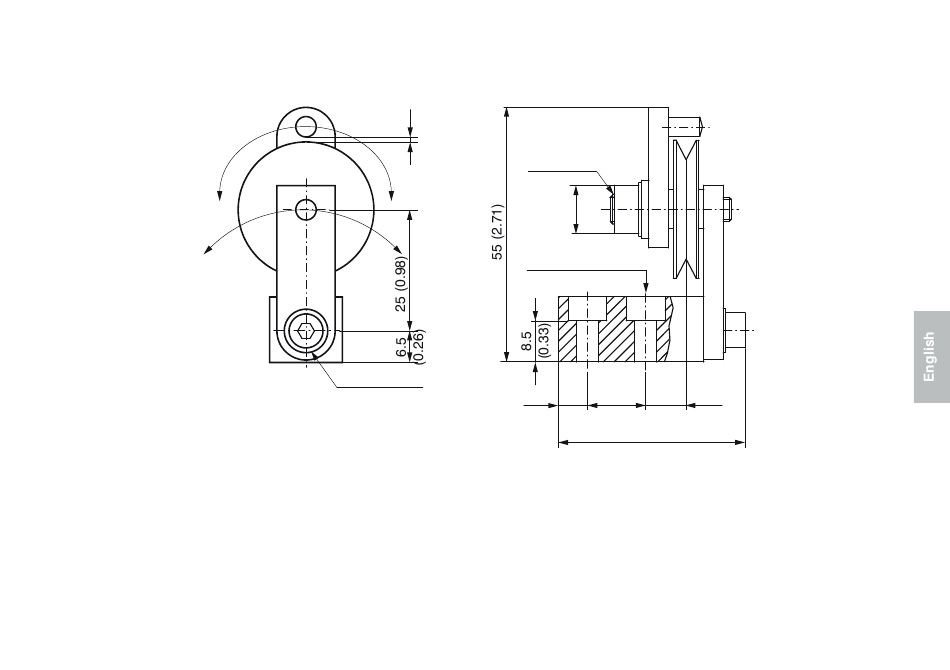

Fig. 25 Guide pulley TR1-WDS with mounting socket, dimensions in mm (inches), not to scale
wireSENSOR, WDS P60/P96/P115
Adjust the distance,
that the wire can't
snap off!
SW3 DIN911
(0.24)
SW3 DIN911
2xM4 DIN84/912
12 8.3
6
(0.47) (.33)
40
(1.57)
