Appendix | Drawings and References for Attachment
(.30 dia.)
ø0.54
(.02 dia.)
M4

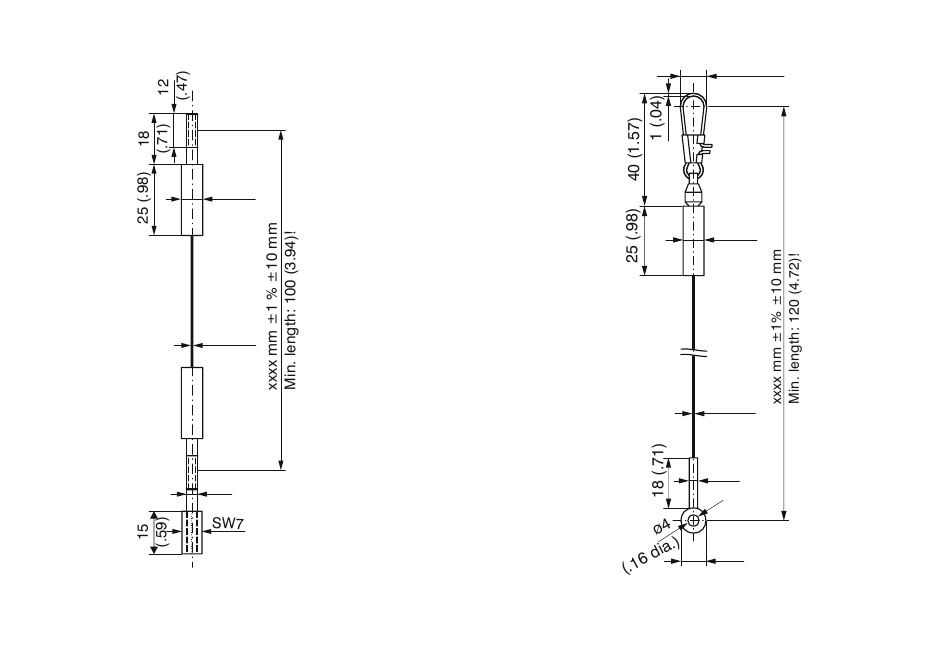

Fig. 29 Wire extension WE-xxxx-M4, dimensions in mm (inches), not to
scale
wireSENSOR, WDS P60/P96/P115
The delivery includes:
1 Pieces wire extension
2 Pieces nut M4 DIN 934-A2
2 Pieces antiturn washer J4.3 DIN 6797
1 Pieces distance piece M4 15 mm long
ø7.5
9.5 (.37)
ø7.5
(.30 dia.)
ø0.45
(.02 dia.)
ø3
(.12 dia)
9
Wire clip 2 mm thick
(.35)
Fig. 30 Wire extension WE-xxxx-CLIP , dimen-
sions in mm (inches), not to scale
