Installation and Mounting
A measuring wire
under tension
where operators are
standing can lead to
injuries.
> Danger of dam-
age to wire and
sensor.
Do not twist the
measuring wire.

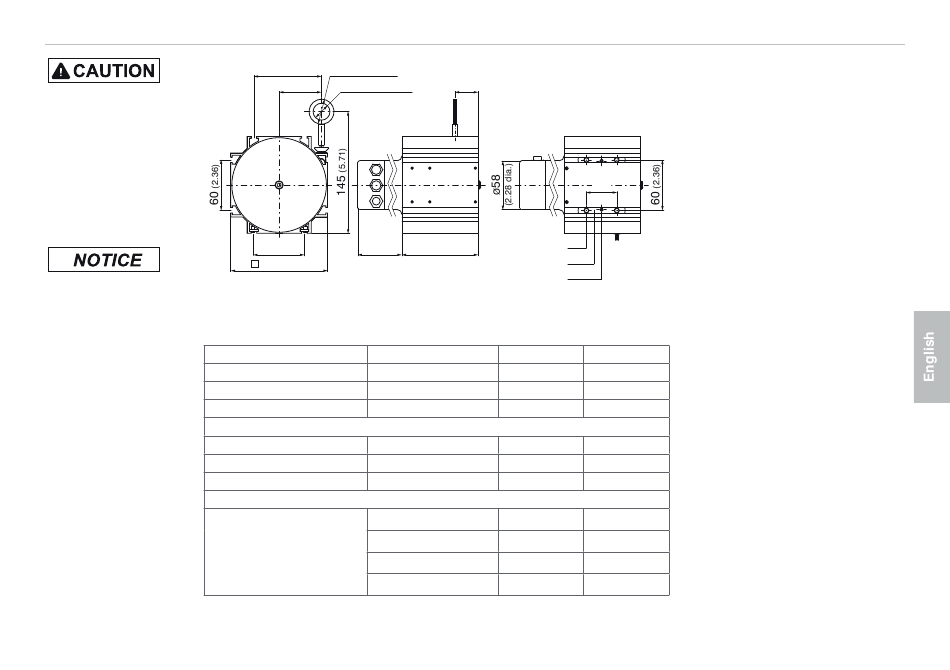

Fig. 16 Dimensional drawing WDS- ... - P115 - CO/PB, dimensions in mm (inches), not to scale
WDS - P115 - U/I/P
WDS - P115 - U/I/P
WDS - P115- HTL/TTL
WDS - P115 - CO/PB
Dimensions in mm (inches)
wireSENSOR, WDS P60/P96/P115
80 ø30
(3.15) (1.18 dia.)
50 ø20.2
(.79 dia.)
(1.97)
60 101
(2.36)
(3.97)
115
(4.53)
Modell
WDS-3000-P115
WDS-4000-P115
WDS-5000-P115
WDS-7500-P115
WDS-10000-P115
WDS-15000-P115
WDS-5000-P115
WDS-7500-P115
WDS - P115 - SSI
WDS-10000-P115
WDS-15000-P115
A
36
(1.42)
B 4x M6
2x Slot nut
2x Fixation screw M4
A
186 (7.32)
180 (7.09)
180 (7.09)
37 (1.46) 153 (6.02)
44,5 (1.75) 196 (7.72)
60,5 (2.38) 228 (8.89)
28,5 (1.12) 91 (3.58)
37 (1.46) 112 (4.40)
44,5 (1.75) 155 (6.10)
60,5 (2.38) 187 (7.36)
B
-
-
-
