Installation and Mounting
A measuring wire
under tension
where operators are
standing can lead to
injuries.

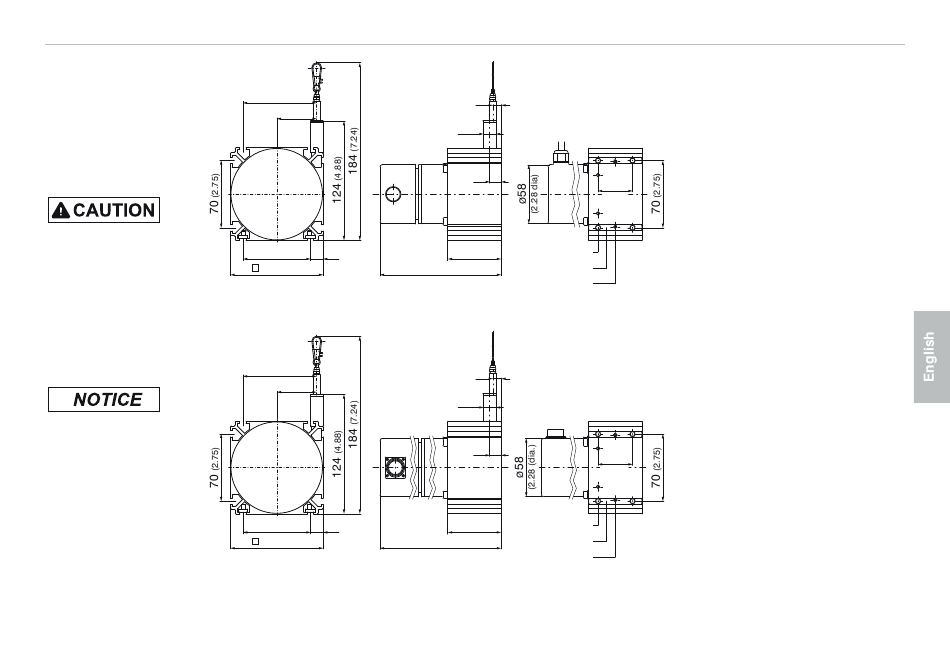

Fig. 9 Dimensional drawing WDS- ... - P96 - HTL/TTL, dimensions in mm (inches), not to scale
> Danger of dam-
age to wire and
sensor.
Do not twist the
measuring wire.
Fig. 10 Dimensional drawing WDS- ... - P96 - SSI, dimensions in mm (inches), not to scale
wireSENSOR, WDS P60/P96/P115
B
A
70 13
(2.75)
(.51)
96 123
(3.78)
B
A
70 13
(2.75)
(.51)
96 139
(3.78)
10
(.39)
ø13
(.51 dia.)
13
36
(.51)
(1.42)
56 4x M6
(2.20)
2x Slot nut
(4.48)
2x Fixation screw M4
10
(.39)
ø13
(.51 dia.)
13
36
(.51)
(1.42)
56 4x M6
(2.20)
2x Slot nut
(5.47)
2x Fixation screw M4
