Installation and Mounting

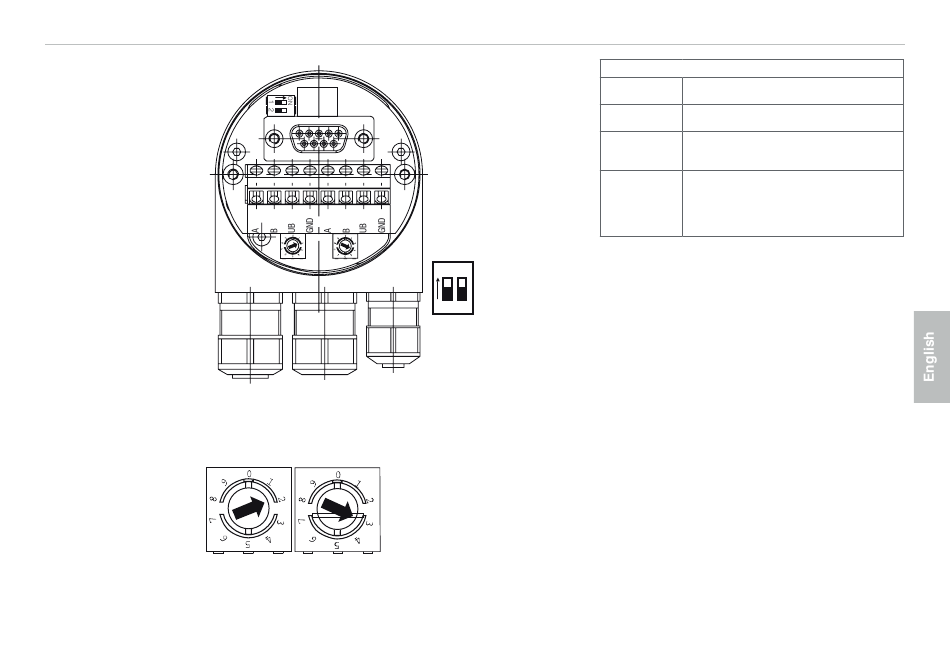

Settings of user address for Profibus
Adress can be set with rotary switch.
Example: User adress 23
wireSENSOR, WDS P60/P96/P115
Contact description Profibus-DP
A
B
UB
GND
Settings of terminating
resistor for Profibus-DP
ON
1 2
ON = Last user
OFF = User X
Negative serial data line
Positive serial data line
Supply voltage
10 ... 30 VDC
Ground contact for UB
(Terminals with the same des-
ignation are internally intercon-
nected.)
