Appendix | Drawings and References for Attachment
Mounting instructions for magnetic holder MH2 - WDS
The force normal to the St 37 plate is approximately 13 kg / 459 oz at +20 °C (+68 °F).
The lateral force sustainable is, dependent on the surface, about 20 - 35 % of normal adhesion.
Operation temperature: -40 to +120 °C (-40 °F to +248 °F)
Temperature coefficient of the adhesion (reversible): -4 % per 10 °C at 20 °C
Strong vibration may cause a displacement of the magnetic holder when subject to a strong lateral force.
Weight appr. 55 g

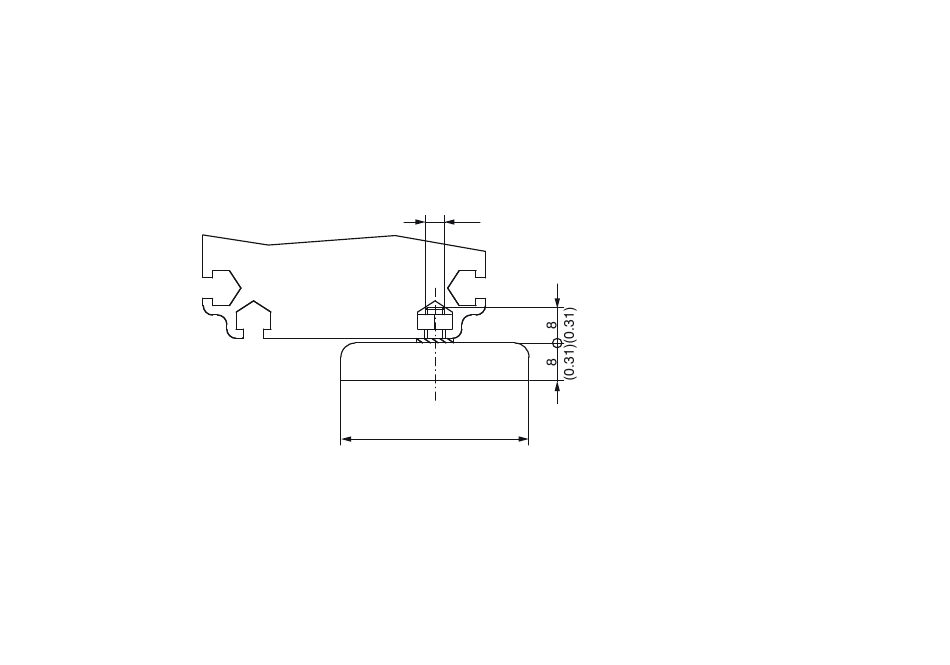

Fig. 24 Magnetic holder MH2 - WDS, dimensions in mm (inches), not to scale
i
wireSENSOR, WDS P60/P96/P115
ø40 (dia. 1.57)
When mounting, make sure there is adequate adhesion!
Uneven surfaces, layers of lacquer and rust reduce adhesion.
M4
