MICRO-EPSILON wireSENSOR WDS series Betriebsanleitung Seite 89

Installation and Mounting
ON
1 2 3

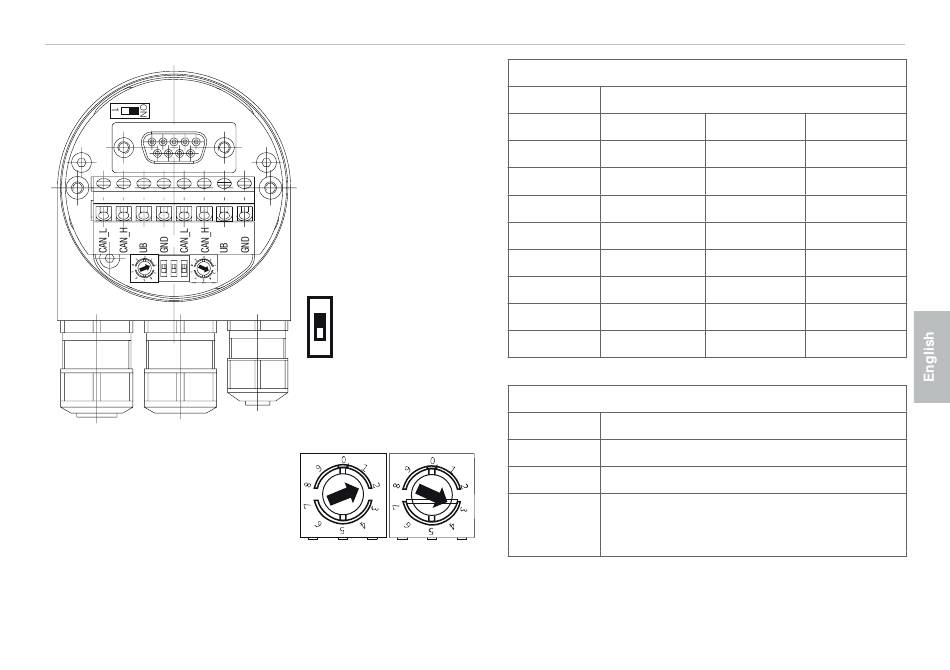

Settings of user address for
CANopen
Adress can be set with rotary switch.
Example: User address 23
wireSENSOR, WDS P60/P96/P115
Setting of terminating
resistor for CANopen
ON
1
ON = Last user
OFF = User X
Setting CANopen baud rate
Baud rate Setting dip switch
1
10 kBit/s OFF
20 kBit/s OFF
50 kBit/s OFF
12 kBit/s OFF
250 kBit/s ON
500 kBit/s ON
800 kBit/s ON
1 MBit/s ON
Contact description CANopen
CAN_L CAN Bus Signal (dominant Low)
CAN_H CAN Bus Signal (dominant High)
UB Supply voltage 10 ... 30 VDC
Ground contact for UB
GND (Terminals with the same designation are inter-
nally interconnected).
2 3
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
Page 89
