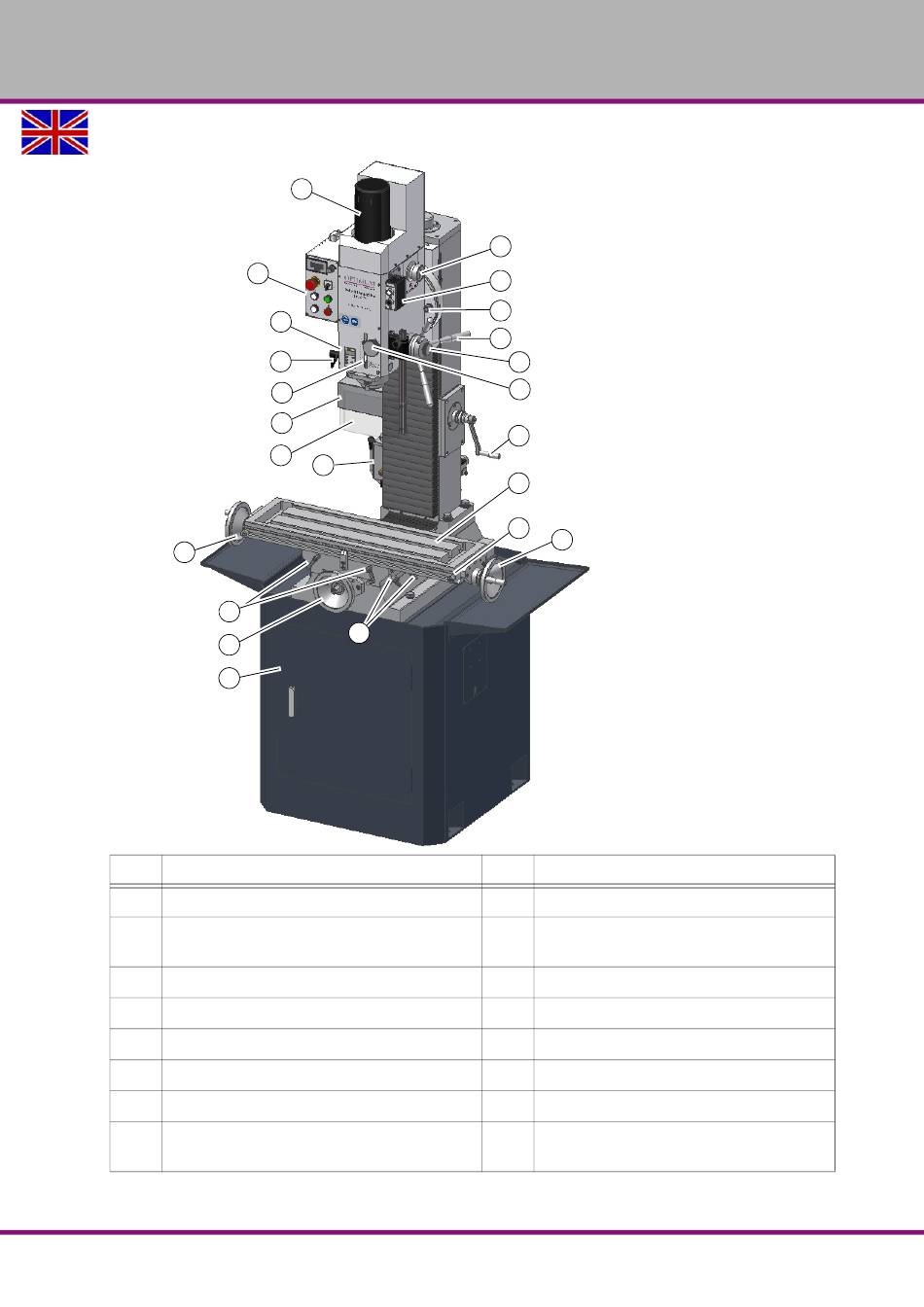

Control and indicating elements BF46TC

2
20
11
12
13
Pos. Designation
1 Pneumatic tool changer
3 Digital display fine crossfeed of spindle
sleeve
5 Meter rule with scale
7 Spindle protection
9 Fine adjustment of spindle sleeve
11 Clamping lever for X-axis
13 Machine base (optionally)
15 Control panel tool change
"CLAMPING" / "RELEASING"
