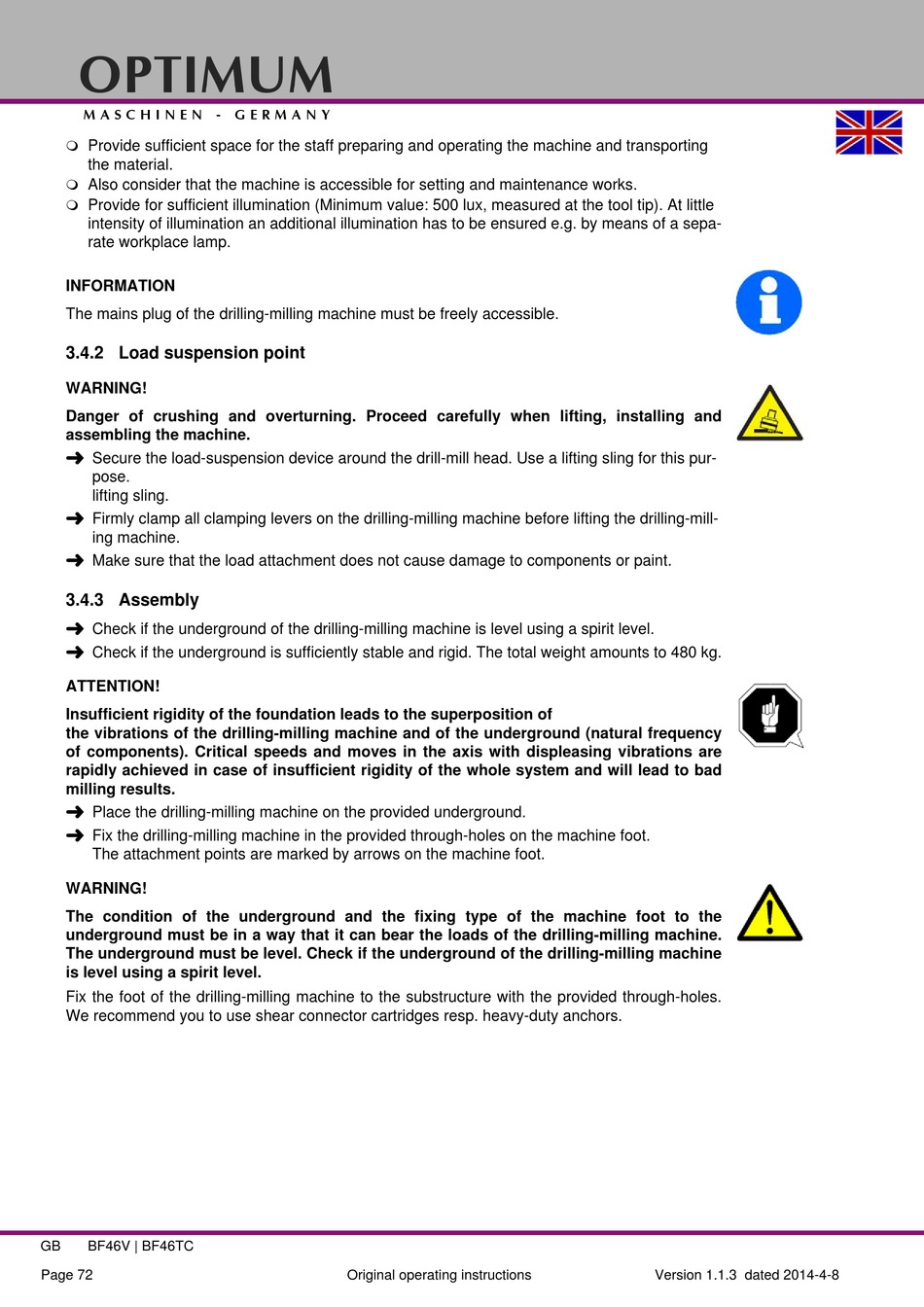

Provide sufficient space for the staff preparing and operating the machine and transporting
the material.

Also consider that the machine is accessible for setting and maintenance works.

Provide for sufficient illumination (Minimum value: 500 lux, measured at the tool tip). At little
intensity of illumination an additional illumination has to be ensured e.g. by means of a sepa-
rate workplace lamp.
INFORMATION
The mains plug of the drilling-milling machine must be freely accessible.

3.4.2 Load suspension point

WARNING!
Danger of crushing and overturning. Proceed carefully when lifting, installing and
assembling the machine.

Secure the load-suspension device around the drill-mill head. Use a lifting sling for this pur-
pose.
lifting sling.

Firmly clamp all clamping levers on the drilling-milling machine before lifting the drilling-mill-
ing machine.

Make sure that the load attachment does not cause damage to components or paint.

3.4.3 Assembly


Check if the underground of the drilling-milling machine is level using a spirit level.

Check if the underground is sufficiently stable and rigid. The total weight amounts to 480 kg.
ATTENTION!
Insufficient rigidity of the foundation leads to the superposition of
the vibrations of the drilling-milling machine and of the underground (natural frequency
of components). Critical speeds and moves in the axis with displeasing vibrations are
rapidly achieved in case of insufficient rigidity of the whole system and will lead to bad
milling results.

Place the drilling-milling machine on the provided underground.

Fix the drilling-milling machine in the provided through-holes on the machine foot.
The attachment points are marked by arrows on the machine foot.
WARNING!
The condition of the underground and the fixing type of the machine foot to the
underground must be in a way that it can bear the loads of the drilling-milling machine.
The underground must be level. Check if the underground of the drilling-milling machine
is level using a spirit level.
Fix the foot of the drilling-milling machine to the substructure with the provided through-holes.
We recommend you to use shear connector cartridges resp. heavy-duty anchors.
