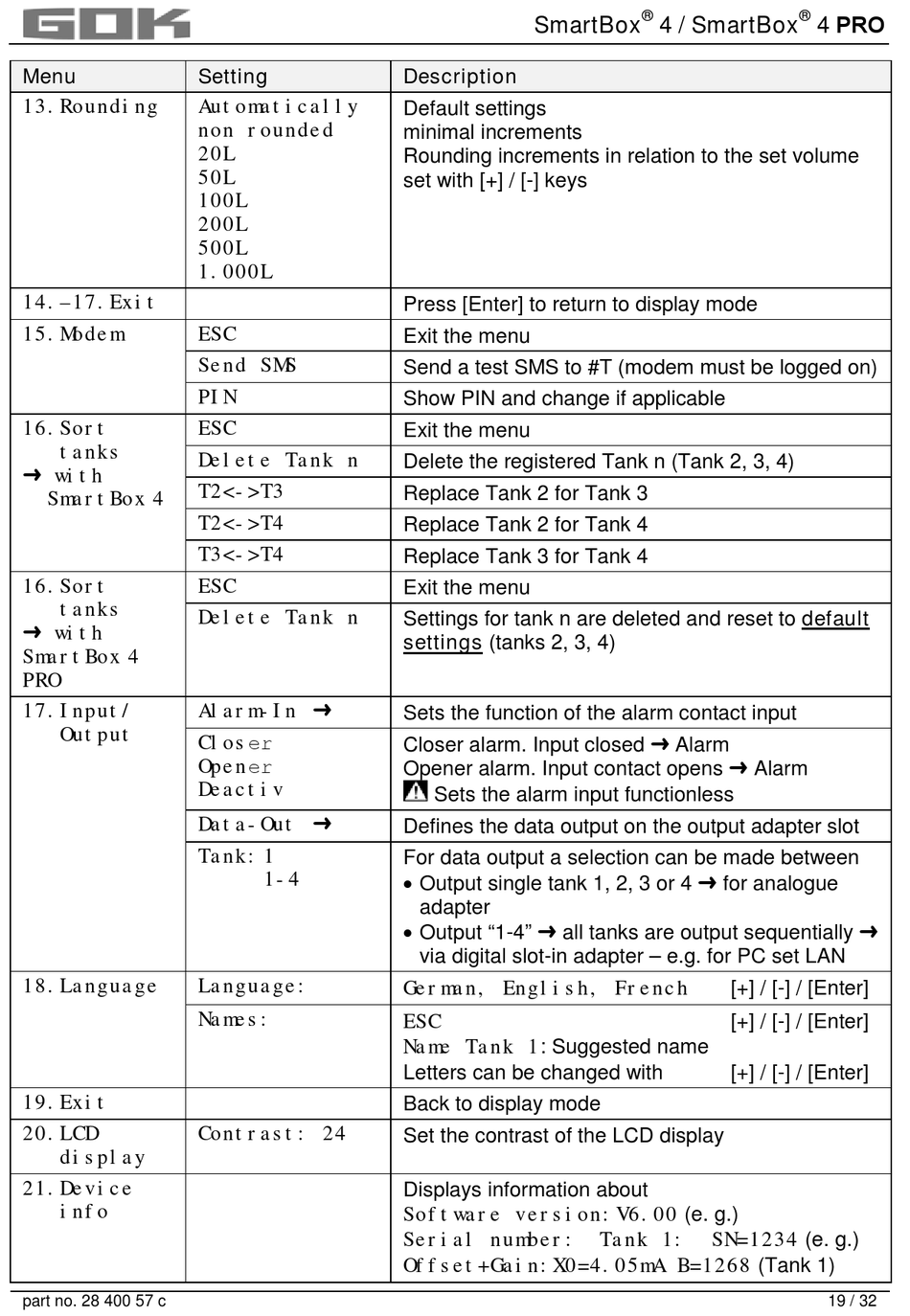

Menu
13.Rounding
14.–17.Exit
15.Modem
16.Sort
tanks
 with
SmartBox 4
16.Sort
tanks
 with
SmartBox 4
PRO
17.Input/
Output
18.Language
19.Exit
20.LCD
display
21.Device
info
part no. 28 400 57 c
Setting
Automatically
non rounded
20L
50L
100L
200L
500L
1.000L
ESC
Send SMS
PIN
ESC
Delete Tank n
T2<->T3
T2<->T4
T3<->T4
ESC
Delete Tank n
Alarm-In 
Closer
Opener
Deactiv
Data-Out 
Tank: 1
1-4
Language:
Names:
Contrast: 24
SmartBox
Description
Default settings
minimal increments
Rounding increments in relation to the set volume
set with [+] / [-] keys
Press [Enter] to return to display mode
Exit the menu
Send a test SMS to #T (modem must be logged on)
Show PIN and change if applicable
Exit the menu
Delete the registered Tank n (Tank 2, 3, 4)
Replace Tank 2 for Tank 3
Replace Tank 2 for Tank 4
Replace Tank 3 for Tank 4
Exit the menu
Settings for tank n are deleted and reset to default
settings (tanks 2, 3, 4)
Sets the function of the alarm contact input
Closer alarm. Input closed  Alarm
Opener alarm. Input contact opens  Alarm
Sets the alarm input functionless
Defines the data output on the output adapter slot
For data output a selection can be made between
• Output single tank 1, 2, 3 or 4  for analogue
adapter
• Output "1-4"  all tanks are output sequentially 
via digital slot-in adapter – e.g. for PC set LAN
German, English, French
ESC
Name Tank 1: Suggested name
Letters can be changed with
Back to display mode
Set the contrast of the LCD display
Displays information about
Software version: V6.00 (e. g.)
Serial number:
Offset+Gain:X0=4.05mA B=1268 (Tank 1)
®
4 / SmartBox
[+] / [-] / [Enter]
[+] / [-] / [Enter]
[+] / [-] / [Enter]
Tank 1: SN=1234 (e. g.)
®
4 PRO
