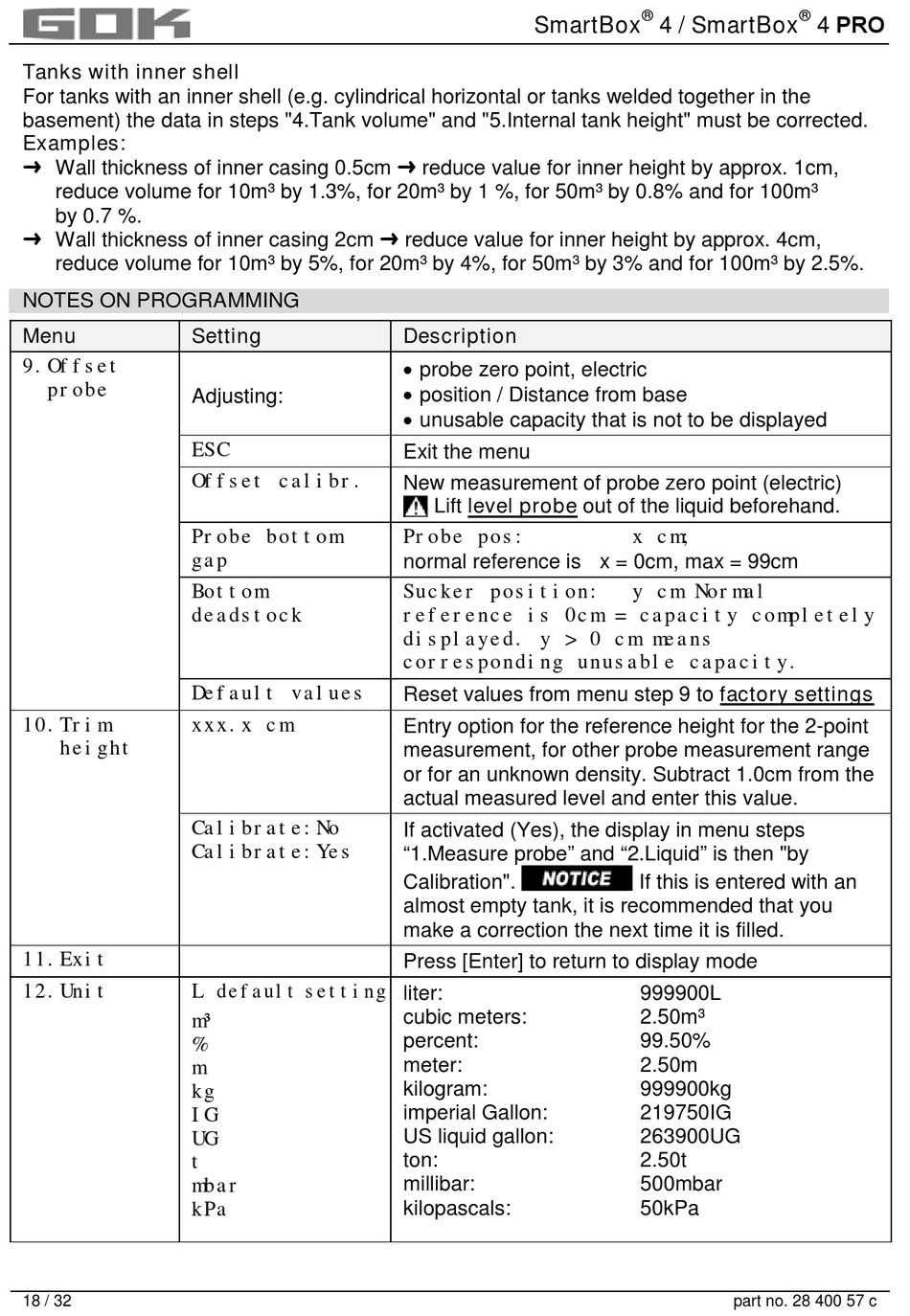

Notes On Programming - GOK SmartBox 4 Montage- Und Bedienungsanleitung

Tanks with inner shell
For tanks with an inner shell (e.g. cylindrical horizontal or tanks welded together in the
basement) the data in steps "4.Tank volume" and "5.Internal tank height" must be corrected.
Examples:
 Wall thickness of inner casing 0.5cm  reduce value for inner height by approx. 1cm,
reduce volume for 10m³ by 1.3%, for 20m³ by 1 %, for 50m³ by 0.8% and for 100m³
by 0.7 %.
 Wall thickness of inner casing 2cm  reduce value for inner height by approx. 4cm,
reduce volume for 10m³ by 5%, for 20m³ by 4%, for 50m³ by 3% and for 100m³ by 2.5%.

NOTES ON PROGRAMMING

Menu Setting
9.Offset
probe
Adjusting:
ESC
Offset calibr.
Probe bottom
gap
Bottom
deadstock
Default values
10.Trim xxx.x cm
height
Calibrate:No
Calibrate:Yes
11.Exit
12.Unit L
m³
%
m
kg
IG
UG
t
mbar
kPa
18 / 32
default setting
SmartBox
Description
• probe zero point, electric
• position / Distance from base
• unusable capacity that is not to be displayed
Exit the menu
New measurement of probe zero point (electric)
Lift level probe out of the liquid beforehand.
Probe pos:
normal reference is x = 0cm, max = 99cm
Sucker position:
reference is 0cm = capacity completely
displayed. y > 0 cm means
corresponding unusable capacity.
Reset values from menu step 9 to factory settings
Entry option for the reference height for the 2-point
measurement, for other probe measurement range
or for an unknown density. Subtract 1.0cm from the
actual measured level and enter this value.
If activated (Yes), the display in menu steps
"1.Measure probe" and "2.Liquid" is then "by
Calibration".
almost empty tank, it is recommended that you
make a correction the next time it is filled.
Press [Enter] to return to display mode
liter:
cubic meters:
percent:
meter:
kilogram:
imperial Gallon:
US liquid gallon:
ton:
millibar:
kilopascals:
® ®
4 / SmartBox
x cm;
y cm Normal
If this is entered with an
999900L
2.50m³
99.50%
2.50m
999900kg
219750IG
263900UG
2.50t
500mbar
50kPa
