INSTALLATION OF THE REAR DROPOUT COVERS
To complete the wheel installation, you will find
two covers in the toolbox provided with your bike.
These should be installed last, after tensioning the
chain, tightening the wheel, and securing the quick
release axles.
To hold the stiffeners in place, you will find 2 FHC
M4x10mm screws in the hardware, which should
be tightened to 1Nm using a torque wrench and
a HEX2 bit.

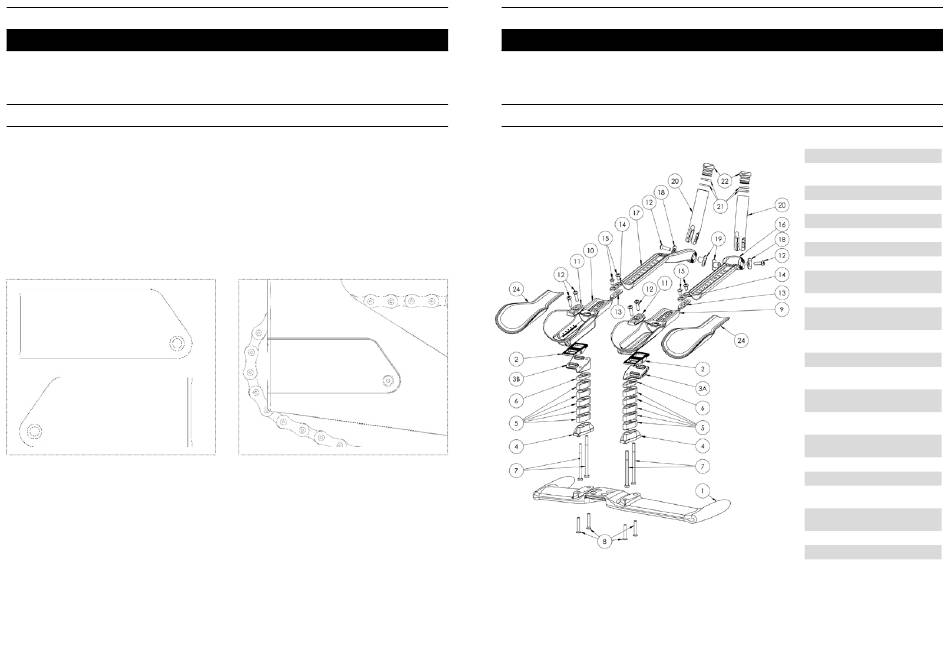

EXPLODED VIEW OF THE AERGO EXTENSIONS
N° Designation Qty
1 LOOK P24 Pursuit 1
Handlebar
2 Flat armrest cradle 2
3a Flat armrest support (right) 11
3b Flat armrest support (left) 1
4 Basebar flat interface 2
5 10mm spacer 10
6 5mm spacer 2
7 M5 Low cap screw – sup- 4
port tightening
8 FHCX M5x30 screw 4
9 Armrest extension (left 1
offset)
10 Armrest extension (left 1
offset)
11 Upper armrest plate 2
12 M5x20 TFX rounded screw 6
for armrest tightening
13 Lower clamping plate for 2
extension
14 Upper clamping plate for 2
extension
15 M5x10 TFX rounded screw 4
for extension tightening
16 Left extension end 1
17 Right extension end 1
18 Support plate for extension 2
handlebar clamp screw
19 Extension handlebar clamp 2
nut
20 Extension handlebar grip 2
21 O-ring 4
22 Extension handlebar plug 2
