INSTALLATION OF THE SEAT HARDWARE
Before cutting your seat post, please assemble the
seat mounting hardware with the seat.
On the part called the Seatmast, you have the
choice between two positions depending on the
desired setback. The assembly is done with a part
called the Asymmetric Cradle, which is reversible
to best hold the saddle rails and achieve the
desired saddle position and angle.

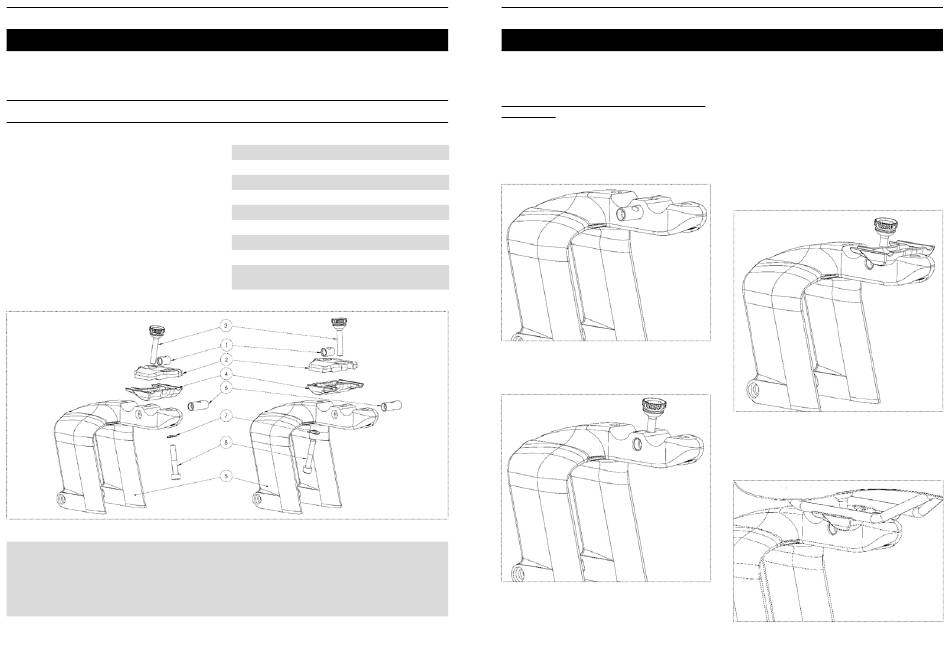

Below are views of the two possible mounting
types (front offset or rear offset):
ASSEMBLY PRECAUTIONS:
Coat the M6x35 screw (8) and the knob (3) with regular threadlocker type LOCTITE 243 TM.
After each assembly/disassembly/loosening for adjustment, it will be necessary to apply a drop of regular
threadlocker type LOCTITE 243 TM on the M6x35 screw (8).
N° Designation
1 M6 Barrel 10x14
2 Short Clamp
3 Knob – Threadlocker LOCTITE 243
4 Asymmetric Cradle
5 Seatmast
6 M6 Barrel 10x25
7 Spherical Washer
8 M6x35 Screw – Allen HEX5 – 8Nm –
Threadlocker LOCTITE 243»
ORDER OF ASSEMBLY
HARDWARE
1- Insert the M6 10x25 barrel into the side hole of
Qty
the seatmast and center it.
1
1
1
1
1
1
1
1
2- Screw the knob into the barrel.
OF THE SEAT
3- Place the asymmetric cradle on one of the
cylindrical seats of the seatmast after applying
carbon/aluminum mounting paste (type VAR
NL-78300) between the carbon cradle and the
aluminum cradle, do not grease.
4- Place your saddle on the cradle (the hardware
is compatible with any type of rails).
