FRONT WHEEL FITTING INSTALLATION
In the toolbox that accompanies your frame,
you will find a bag containing all the necessary
components for installing the version of the kit you
need.

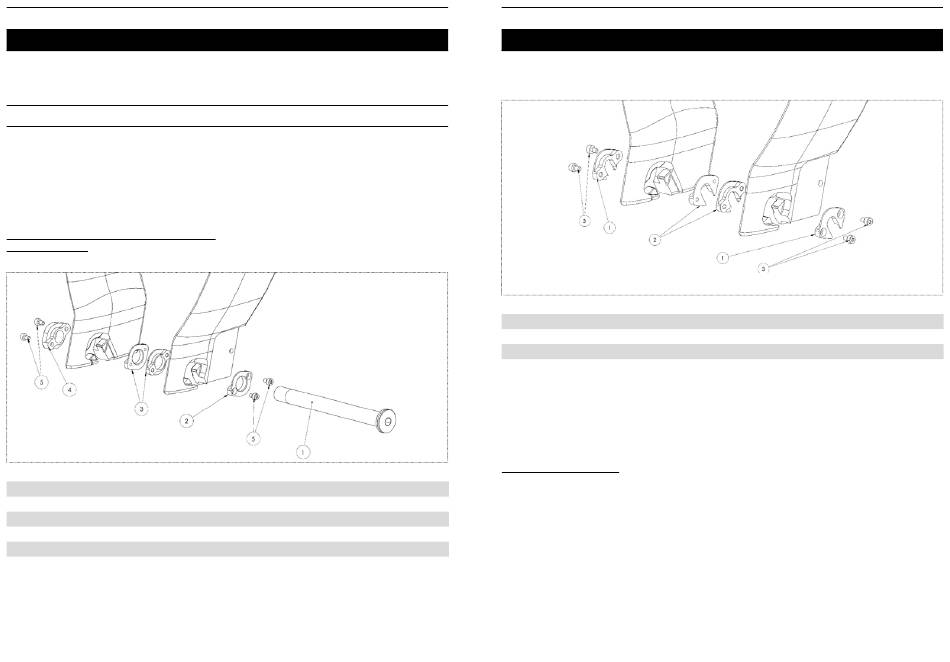

EXPLODED VIEW OF THE HARDWARE FOR
12MM THRU-AXLE
N° Designation
1 12mm Front Thru-Axle – Allen HEX 6 – 10Nm – greased
2 Shim washer
3 Threaded shim washer
4 M12 Nut
5 M3x5 Screw – Torx T10 – 1Nm – LOCTITE 243 threadlocker
This hardware allows the use of a 12mm thru-axle
with a flat support or a standard axle, depending
on the wheels used.
N° Designation
1 10mm Axle Shim Washer – notched
2 10mm Axle Shim Washer – threaded
3 M3x5 Screw – Torx T10 – 1Nm – LOCTITE 243 threadlocker

ASSEMBLY PREPARATION

Qty
1 – Select the parts you will need for the desired
1
assembly.
1
2
2 – Clean and degrease the parts and fork blades
with a degreasing product, except for the M3x5mm
1
screws that are already coated with threadlocker.
4
3 – Equip yourself with a torque wrench with a HEX
6 bit and a TORX T10 bit.
Qty
2
2
4
