2.15 Foreseeable misuse
WARNING! Risk of serious injury due to misuse!
» Adhere strictly to the intended use of the tool, as it is designed for a specific
function. Modifying the tool or using it for other functions than its designated for
is strictly prohibited and can potentially lead to personal injury, damage to the
tool and/or workpiece.
» Strictly using the tool as intended helps mitigate the risks associated with misuse,
promoting a safer working environment and reducing the potential for accidents
or tool damage.

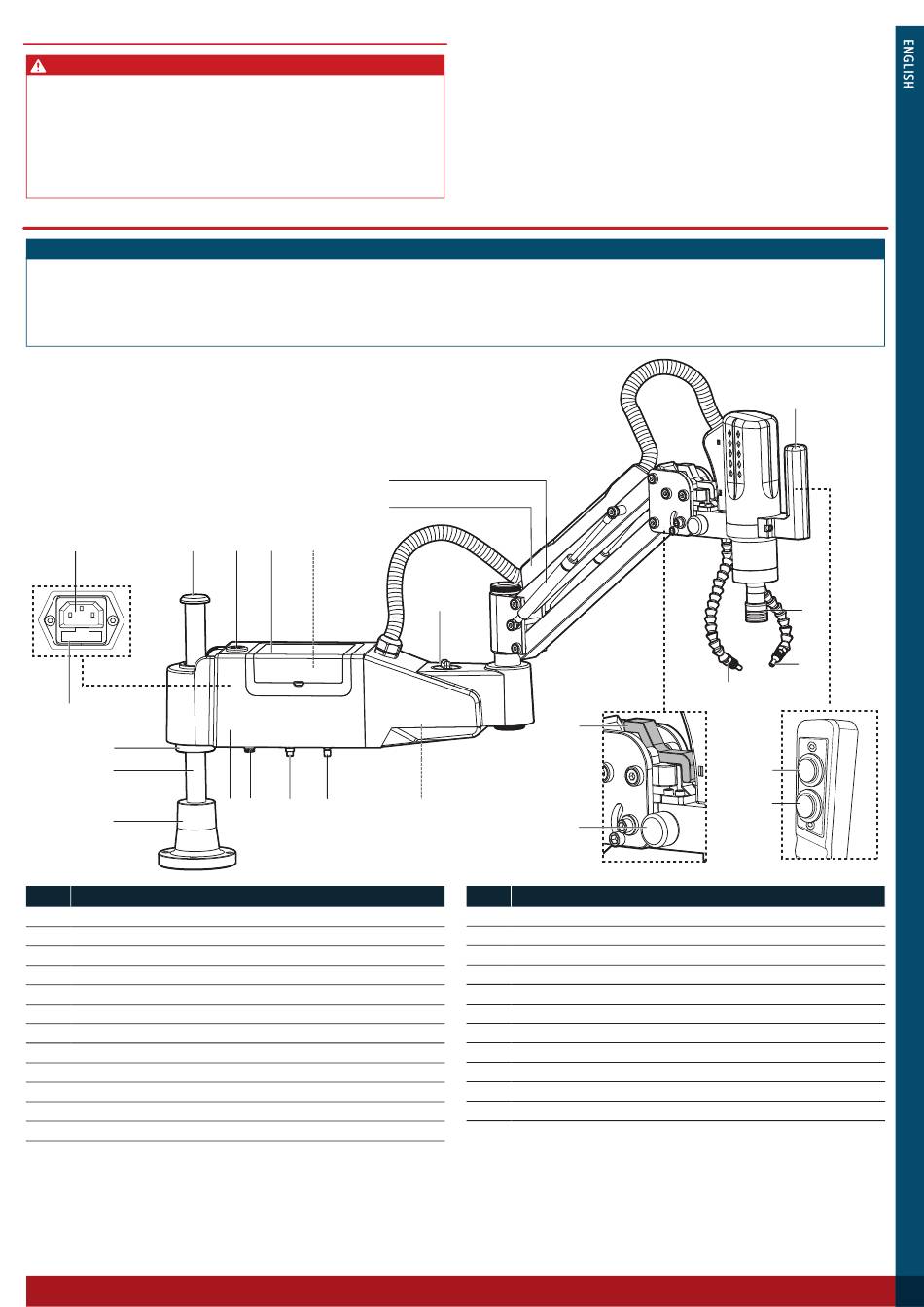

3. Overview
NOTICE!
» The information and illustrations provided in this manual may vary from the specific configuration of the tool. This variation is due to the manual encompassing all potential
configurations and optional features. To ensure accurate guidance, refer exclusively to the information directly related to the specific configuration you have purchased.
Prioritise the sections and details that align with the specific configuration of the tool to maximise the usefulness of the manual and optimise your experience with the
tool. By adhering to this manual, confusion, potential errors or improper usage resulting from relying on information that may not be applicable to the specific model or
configuration can be avoided.
1
2
25
24
23
22
No.
Part name
1
Power inlet
2
Cover cap
3
Power button
4
Protective cover
5
Control panel
6
Oil fill plug
7
Articulating arm
8
Support struts
9
Control handle
10
Collet chuck
11
Oil nozzle
12
Air nozzle
13
Reverse button
8
7
3
4
5
20
21
19
18
• The tool is not intended for using on materials other than metal, such as wood or
plastic. Attempting to use the tool on non-metallic materials could cause the tool
to bind, experience dangerous kickback or lose control, resulting in significant
safety risks.
• The tool is not intended for drilling or screwing. Using the tool for unintended
purposes could overload the spindle, causing the tool to break or bind and
potentially leading to personal injury or damage to the workpiece.
6
16
17
15
No.
Part name
14
Start button
15
Locking knob
16
Tilt release lever
17
Oil reservoir
18
Air valve
19
Oil valve
20
Air inlet (with quick-connect fitting)
21
Support arm
22
Support base
23
Support column
24
Height adjustment collar
25
Fuse holder with fuses
9
10
11
12
13
14
7
