8. Operation settings
8.1 Ordinary operation

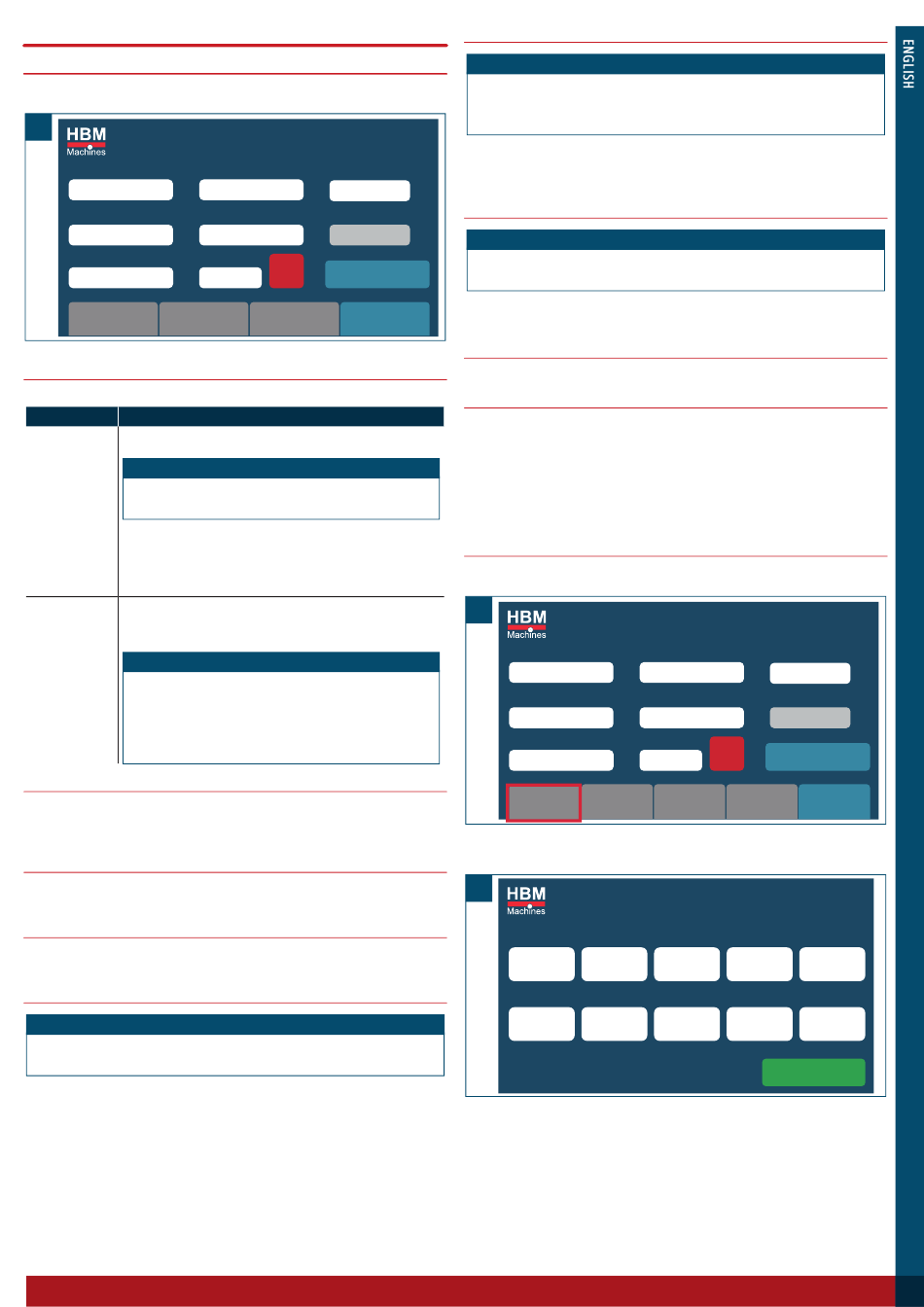

The operating controls and settings for the tool (Fig. E), including speed, torque, and
depth, can be adjusted and monitored through the control panel (5).
E
Thread Select
M4.00
Tapping Speed
312
rpm
Return Speed
312 rpm
User Machine
Parameter Parameter
8.1.1 Operating mode
The tool operates in two modes: Manual mode and Auto mode.
Mode
Manual mode 1. Press and hold the start button (14) to begin tapping.
NOTICE!
» The tapping depth is cleared each time the start button (14)
is pressed.
2. The motor automatically stops until the set tapping depth is
reached.
3. Release the start button (14).
4. Press and hold the reverse button (13) until fully retracted.
Auto mode
1. Press the start button (14) once to begin tapping.
2. The tool automatically taps to the set depth and then retracts.
NOTICE!
» The tool pauses for the hole bottom delay after the tapping
process before retracting. Adjust the hole bottom delay in
the User parameter (refer to chapter 8.2 User parameter).
» There will be one extra retraction cycle when the tap exits the
workpiece.
8.1.2 Thread select
Tap Thread Select to choose the desired thread size. The tool automatically retrieves
the pre-configured tapping pitch and torque values corresponding to the selected
thread size.
8.1.3 Tapping speed
Tap Tapping Speed to adjust the feed speed of the tapping operation within the
maximum spindle speed.
8.1.4 Return speed
Tap Return Speed to adjust the retraction speed of the tapping operation within the
maximum spindle speed.
8.1.5 Tapping pitch
NOTICE!
» The corresponding tapping pitch generates automatically if a thread size is
selected.
Tap Tapping Pitch to manually input a non-standard pitch value, with a range of
0.001 to 10 mm.
Tapping Pitch Tapping Depth
0.700
mm
15.00
Torque Setting Actual Depth
OFF N.m 2.000
Count
Clear MANUAL
111
Deep Hole Ordinary
Operation Operation
Tapping
8.1.6 Torque setting
NOTICE!
» The torque setting can be adjusted only if the Torque Protection function is
enabled in the User Parameter (refer to chapter 8.2 User parameter).
» The torque setting is not available for deep hole operation.
• Tap Torque Setting to adjust the torque limit for the tapping operation.
• If the tapping force reaches the protected torque limit, the tool automatically stops
and retracts for a set number of cycles. It continues until the set depth is reached.
mm
8.1.7 Count
mm
NOTICE!
» The hole count is stored in memory even after the tool is switched off and
restarted.
• The tool maintains a count of the number of holes processed.
• To reset the count to zero, tap Clear.
8.1.8 Tapping depth
Tap Tapping Depth to set the desired tapping depth, with a range of 0.01 to 500 mm.
8.1.9 Actual depth
The actual depth shows the real-time measurement of the tapping depth as the
operation progresses. The actual depth value increases incrementally during tapping.
• In Manual mode, the tapping process stops when the actual depth reaches the set
tapping depth. Release the start button (14) and press the reverse button (13) to
retract the tool.
• In Auto mode, the tapping process automatically stops and the tool retracts when
the actual depth reaches the set depth.
8.1.10 User settings memory
• After adjusting the parameter settings, the complete set can be saved for future
use. To save the current settings, tap FileX (Fig. F).
F
Thread Select
M4.00
Tapping Speed
312
Return Speed
312
File 1
• To recall previously saved settings, tap FileX and select the desired preset from
the file list (Fig. G).
G
User Settings Memory
File 1
M4
File 6
M4
Tapping Pitch
0.700
mm
Torque Setting
rpm OFF
N.m
Count
Clear
111
rpm
User Machine Deep Hole
Parameter Parameter Operation
File 2 File 3 File 4
M4 M4 M4
File 7 File 8 File 9
M4 M4 M4
Tapping Depth
mm
15.00
Actual Depth
2.00
mm
MANUAL
Ordinary
Operation
File 5
M4
File 10
M4
BACK
