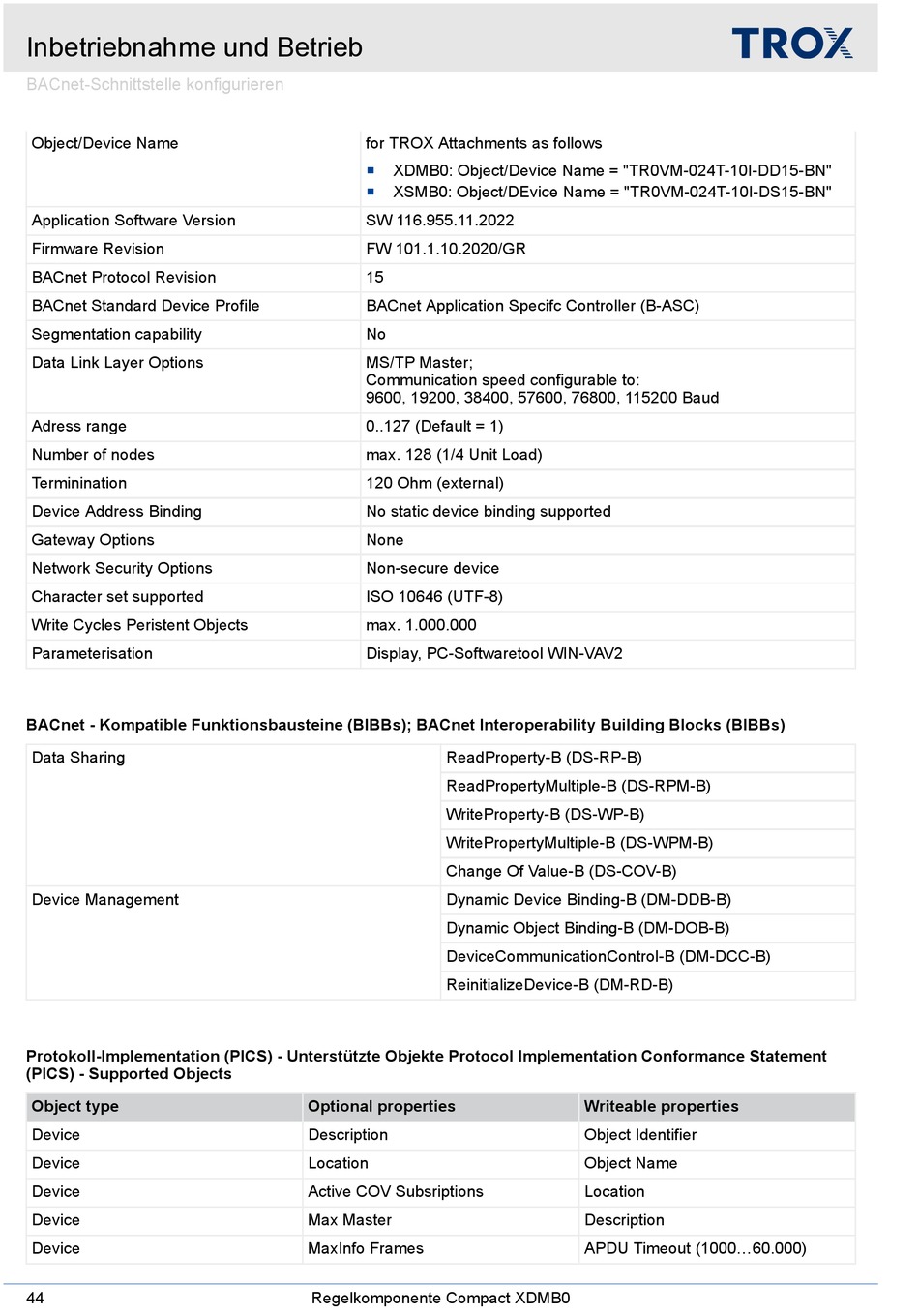

Inbetriebnahme und Betrieb
BACnet-Schnittstelle konfigurieren
Object/Device Name
Application Software Version
Firmware Revision
BACnet Protocol Revision
BACnet Standard Device Profile
Segmentation capability
Data Link Layer Options
Adress range
Number of nodes
Terminination
Device Address Binding
Gateway Options
Network Security Options
Character set supported
Write Cycles Peristent Objects
Parameterisation
BACnet - Kompatible Funktionsbausteine (BIBBs); BACnet Interoperability Building Blocks (BIBBs)
Data Sharing
Device Management
Protokoll-Implementation (PICS) - Unterstützte Objekte Protocol Implementation Conformance Statement
(PICS) - Supported Objects
Object type
Device
Device
Device
Device
Device
44
for TROX Attachments as follows
XDMB0: Object/Device Name = "TR0VM-024T-10I-DD15-BN"

XSMB0: Object/DEvice Name = "TR0VM-024T-10I-DS15-BN"

SW 116.955.11.2022
FW 101.1.10.2020/GR
15
BACnet Application Specifc Controller (B-ASC)
No
MS/TP Master;
Communication speed configurable to:
9600, 19200, 38400, 57600, 76800, 115200 Baud
0..127 (Default = 1)
max. 128 (1/4 Unit Load)
120 Ohm (external)
No static device binding supported
None
Non-secure device
ISO 10646 (UTF-8)
max. 1.000.000
Display, PC-Softwaretool WIN-VAV2
ReadProperty-B (DS-RP-B)
ReadPropertyMultiple-B (DS-RPM-B)
WriteProperty-B (DS-WP-B)
WritePropertyMultiple-B (DS-WPM-B)
Change Of Value-B (DS-COV-B)
Dynamic Device Binding-B (DM-DDB-B)
Dynamic Object Binding-B (DM-DOB-B)
DeviceCommunicationControl-B (DM-DCC-B)
ReinitializeDevice-B (DM-RD-B)
Optional properties
Description
Location
Active COV Subsriptions
Max Master
MaxInfo Frames
Regelkomponente Compact XDMB0
Writeable properties
Object Identifier
Object Name
Location
Description
APDU Timeout (1000...60.000)
