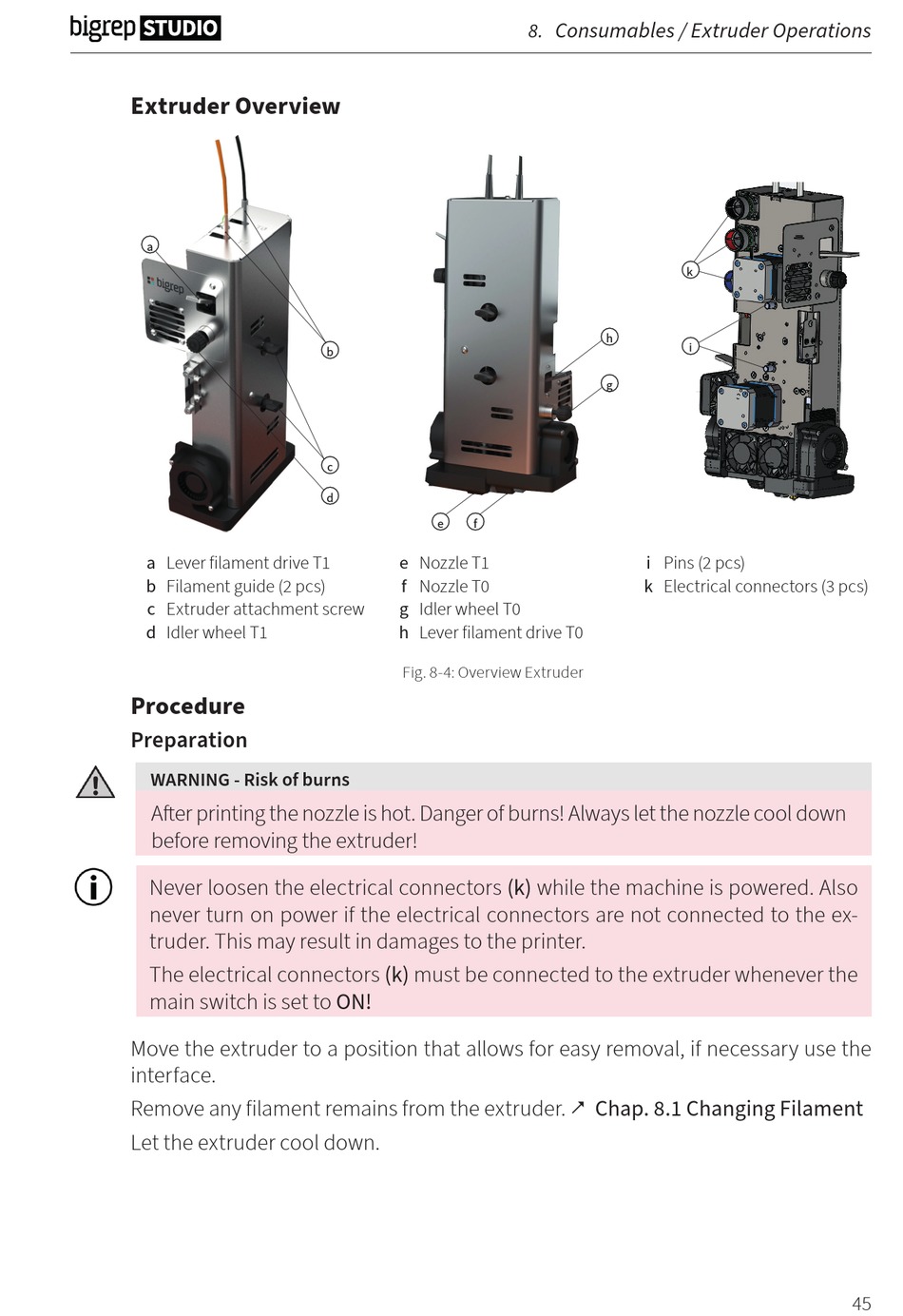

Extruder Overview
a
a Lever filament drive T1
b Filament guide (2 pcs)
c Extruder attachment screw
d Idler wheel T1
Procedure
Preparation
WARNING - Risk of burns
After printing the nozzle is hot. Danger of burns! Always let the nozzle cool down
before removing the extruder!
Never loosen the electrical connectors (k) while the machine is powered. Also
never turn on power if the electrical connectors are not connected to the ex-
truder. This may result in damages to the printer.
The electrical connectors (k) must be connected to the extruder whenever the
main switch is set to ON!
Move the extruder to a position that allows for easy removal, if necessary use the
interface.
Remove any filament remains from the extruder. & Chap. 8.1 Changing Filament
Let the extruder cool down.
b
c
d
e
f
e Nozzle T1
f Nozzle T0
g Idler wheel T0
h Lever filament drive T0
Fig. 8-4: Overview Extruder
Consumables / Extruder Operations
8.
k
h
i
g
i Pins (2 pcs)
k Electrical connectors (3 pcs)
45
