Cleanfit CPA472D: Umbau / Cleanfit CPA472D: Retrofit
8
Umbau von induktiven auf
pneumatische Endschalter
8.1 Vorbereitung
#
Bitte stellen Sie sicher, dass der Prozess
abgeschaltet ist und abgeschaltet bleibt!
Folgendes Kit ist für den Umbau erforderlich:
51502874.
1.
Bei den folgenden Arbeiten beachten Sie bitte
unbedingt die Sicherheitshinweise in
2.

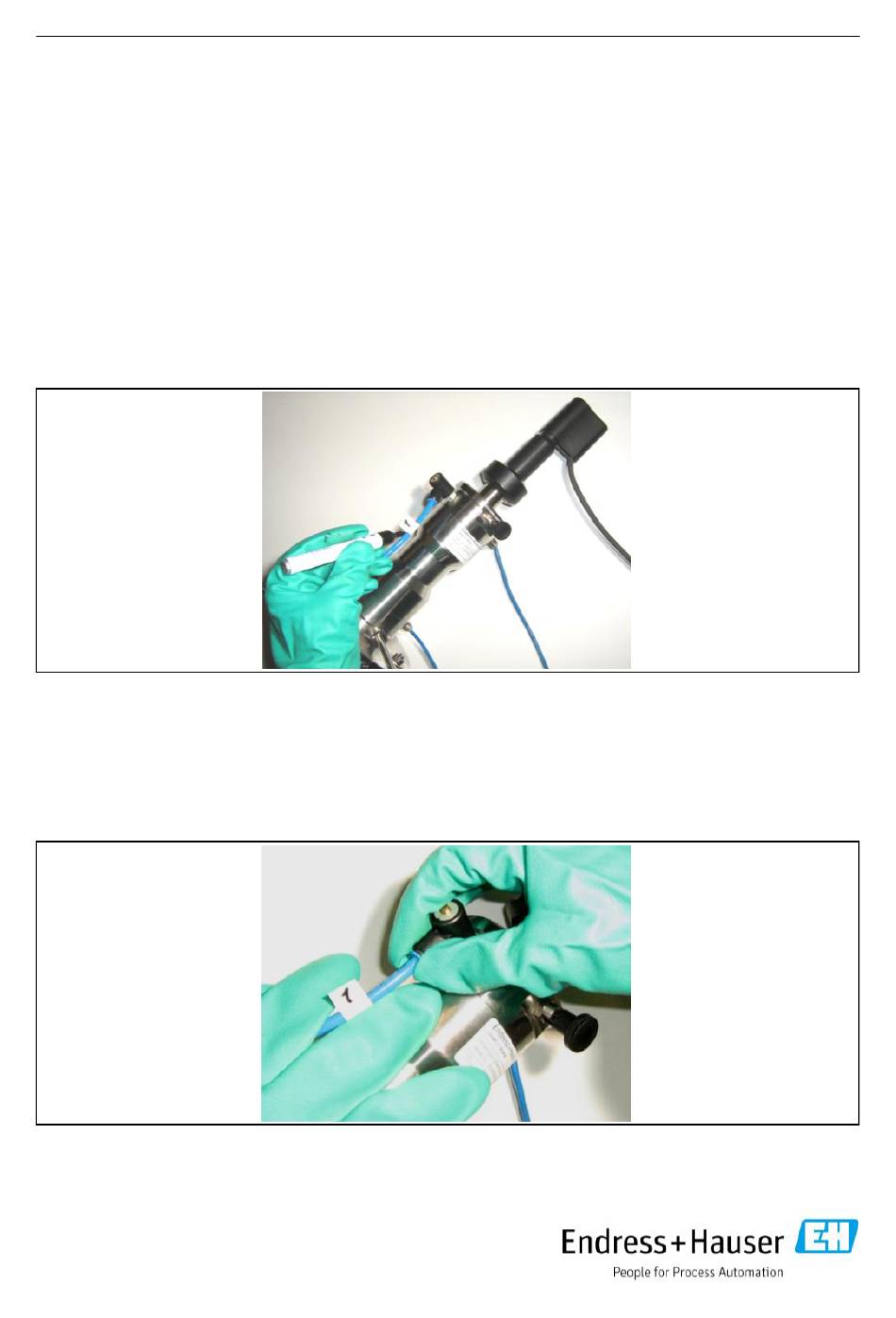

Bitte kennzeichnen Sie, falls erforderlich, alle
vorhandenen Verbindungen an der Armatur
mit Klebeetiketten (siehe Abbildung 1).
Abbildung 1
Verbindungen
kennzeichnen
3.
Ziehen Sie an den pneumatischen Anschlüssen die
vorhandenen Luftschläuche ab.
Drücken Sie dazu z.B. rechts auf den Ring am pneu-
matischen Anschluss und ziehen Sie gleichzeitig den
Luftschlauch nach links heraus (siehe Abbildung 2).
Demontieren Sie alle anderen Verbindungen, soweit
erforderlich.
Abbildung 2
Luftschläuche
abziehen
71297785 Cleanfit CPA472D: Retrofit
Kapitel 3.1.
133
8
Retrofit from electric to
pneumatic limit switches
8.1 Preparation
#
Please make sure that the process is
switched off and stays switched off!
Following kit is required for the retrofit:
51502874.
1.
For the follwing works please consider
thereby the safety notes in
2.
Please mark, if required, all available
connections at the process assembly,
using adhesive labels (see figure 1).
3.
Pull off the available air hoses at the pneumatic
connections.
Press for this e.g. at the right side on the ring at
the pneumatic connection and at once pull off
the air hose to the left side (see figure 2).
Uninstall all other connections, as far as this is
required.
68
chapter 3.1.
Figure 1
Mark the
connections
Figure 2
Pull off the
air hoses
