Cleanfit CPA472D: Umbau / Cleanfit CPA472D: Retrofit
20.
Nehmen Sie den ausgebauten induktiven Endschalter
und schrauben Sie die 2 Muttern, mit den glatten Stirn-
seiten zueinander, auf dem Endschalter, bis hin zum
Ende des Gewindes am Kabel.
Kontern Sie die 2 x 2 Muttern mit zwei Flachschlüsseln
17 mm (siehe Abbildung 15).

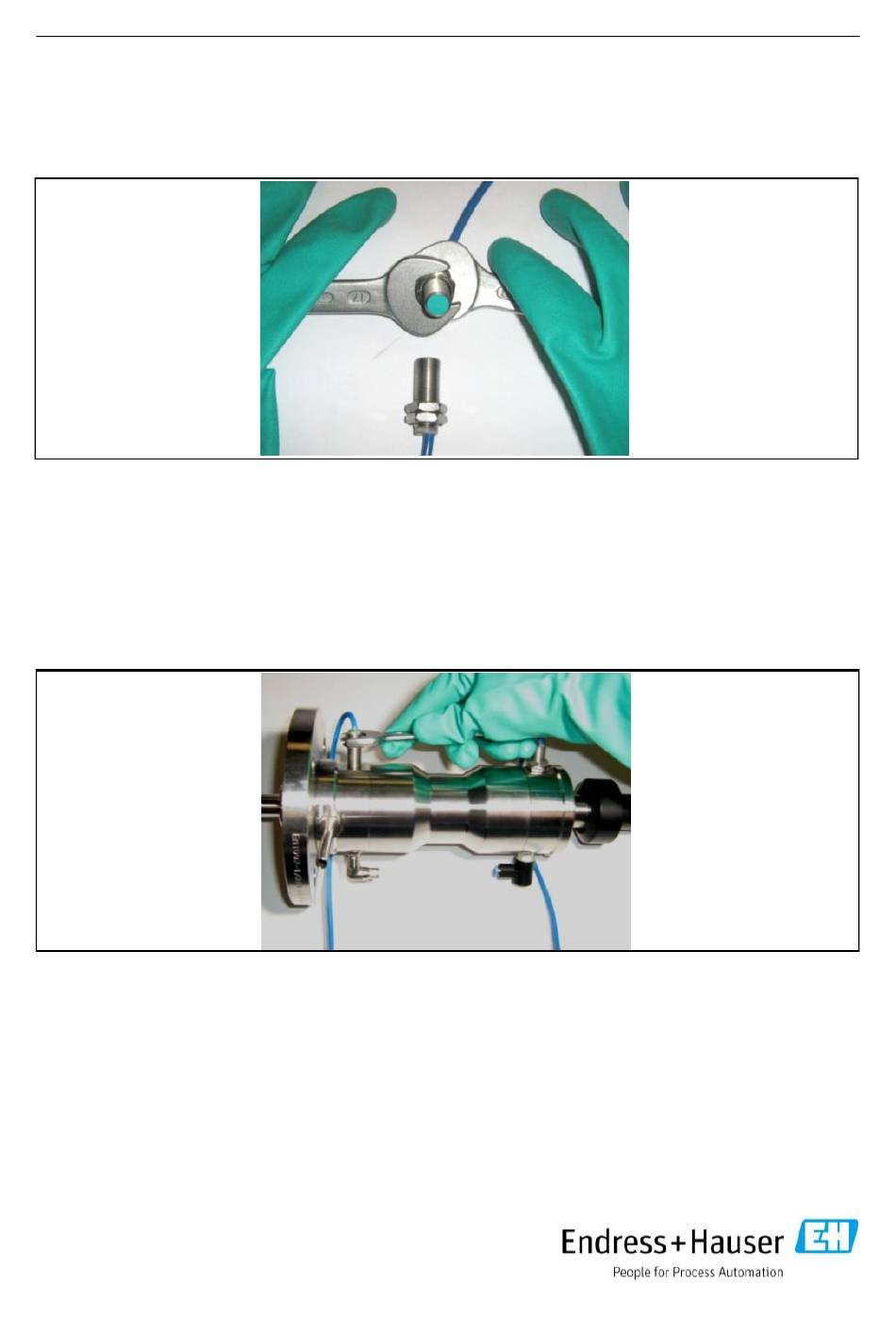

Abbildung 15
Kontern der Muttern am
elektrischen Endschalter
21.
Schrauben Sie den induktiven Endschalter mit
Gewindedichtband, in die Gewindebohrung
am Spülgehäuse für Flanschanschluss, durch
Drehen im Uhrzeigersinn, mit einem Flach-
schlüssel 17 mm (siehe Abbildung 16).
Sobald Sie den Anschlag erreicht haben, d.h. der
Endschalter den Kolben im Innern berührt, drehen
Sie den Endschalter ca. 1/2 Umdrehung zurück,
gegen den Uhrzeigersinn.
Abbildung 16
Induktiven Endschalter
anschrauben
71297785 Cleanfit CPA472D: Retrofit
133
20.
Take the dismantled electric limit switch and
screw the 2 nuts, with the smooth end faces to
each other, on the electric limit switch, up to
the end of the thread at the cable.
Tighten the 2 x 2 nuts, using two 17 mm wrenches
(see figure 15).
21.
Screw the electric limit switch with thread
sealing tape into the threaded hole on the
rinse chamber for flange connection, by
turning it clockwise, using a 17 mm wrench
(see figure 16).
As soon as you have reached the stop, i.e. the
limit switch has reached the bulb in the inside,
turn the limit switch about a 1/2 turn counter-
clockwise.
45
Figure 15
Tighten the nuts at the
electric limit switch
Figure 16
Screw in electric
limit switch
