Cleanfit CPA472D: Umbau / Cleanfit CPA472D: Retrofit
10.
Der Umbau kann nur im ausgebauten Zustand
der Armatur erfolgen.
11.
Demontieren Sie die Armatur von der Prozess-
befestigung durch Drehen der Überwurfmutter
gegen den Uhrzeigersinn (siehe Abbildung 8).

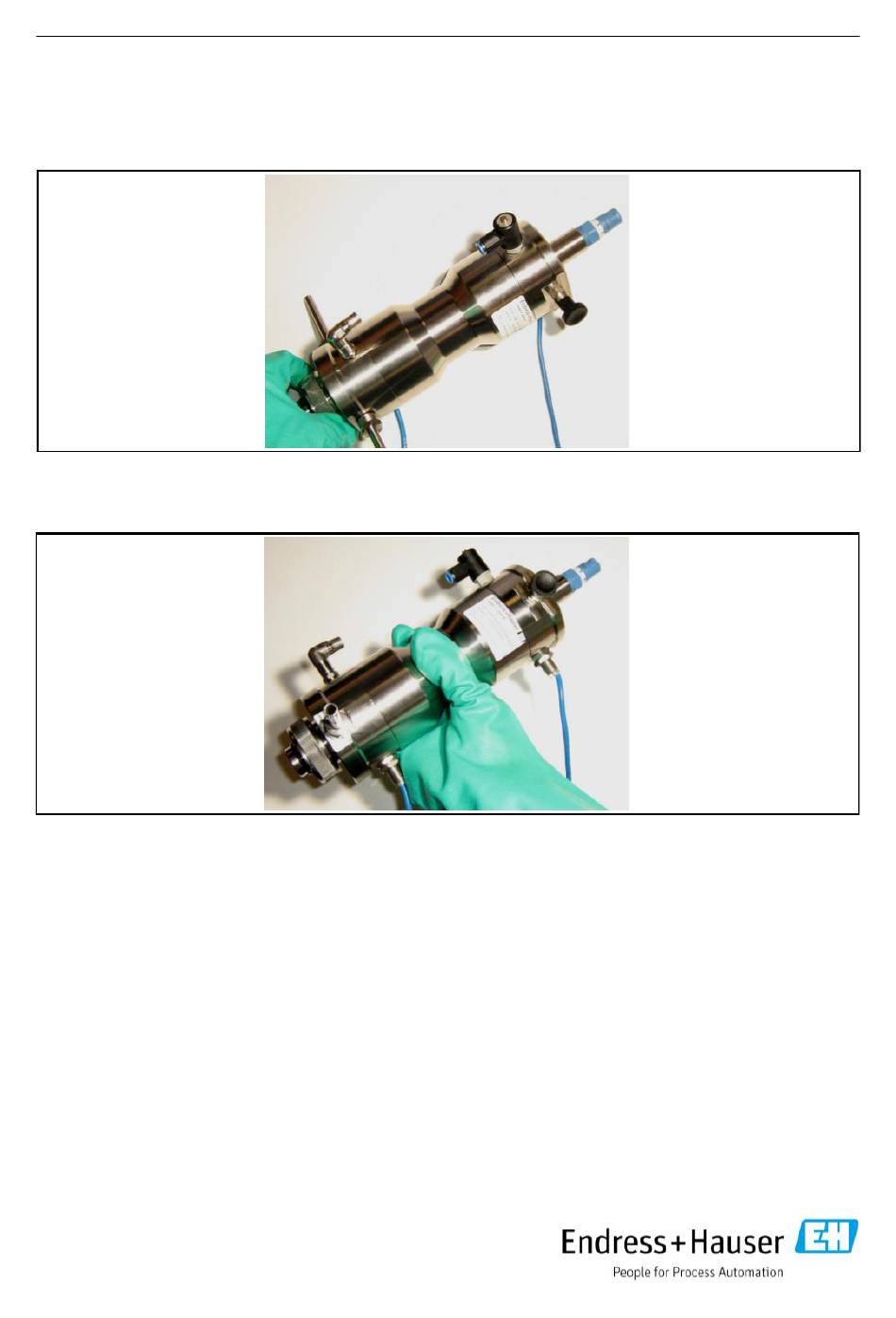

Abbildung 8
Armatur von der Prozess-
befestigung lösen
12.
Nehmen Sie die Armatur von der Prozessbefestigung
ab (siehe Abbildung 9) und legen Sie diese auf eine
ebene Fläche.
Abbildung 9
Armatur
abnehmen
13.
Falls ein Elektroden/Sensor-Bruch vorliegt, schütteln
#
Sie bitte vorsichtig die restlichen Glassplitter aus der
Elektrodenführung heraus und entfernen Sie diese.
14.
Nach der Vorbereitung können Sie Teile umbauen, wie
nachfolgend beschrieben.
71297785 Cleanfit CPA472D: Retrofit
133
10.
The retrofit can only be done in the demounted
state of the process assembly.
11.
Demount the process assembly from the process
fitting by turning the cap nut counter-clockwise
(see figure 8).
12.
Detach the process assembly from the
process fitting (see figure 9) and put it
on a plain area.
13.
If the electrode/sensor is broken, please shake
#
the rest of the glass splinters carefully out of the
electrode guide and remove them.
14.
After the preparation, you can retrofit parts, as
described in the
following.
37
Figure 8
Loosen the process assembly
from the process fitting
Figure 9
Detach the
process assembly
