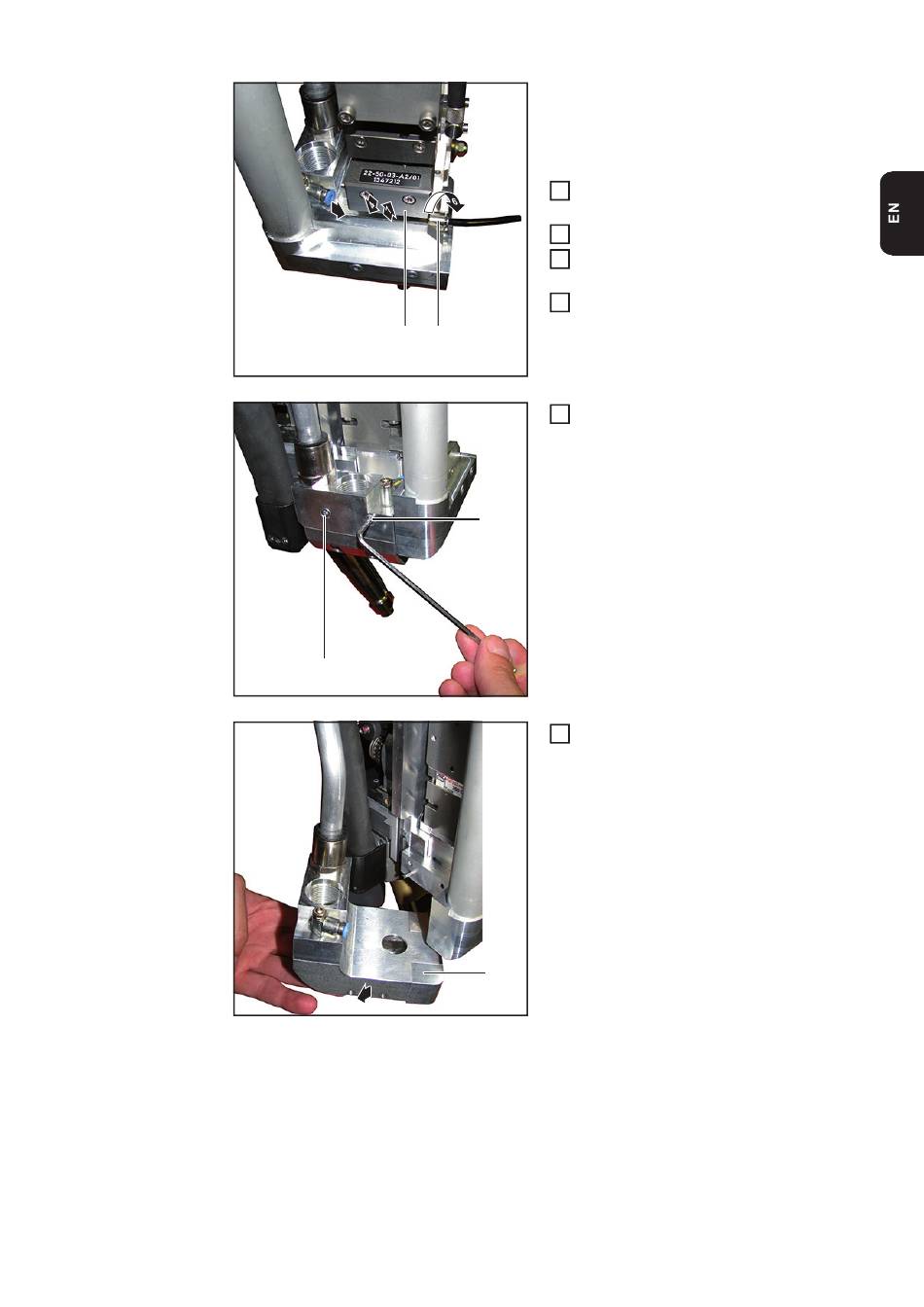

IMPORTANT! When removing and inser-
ting the protective glass drawer, ensure that
it does not become dirty, scratched or da-
maged in any way.
Take protective glass drawer (5) out of
4
the laser optics system
Disconnect air hose
5
Swivel the air connection (6) to one
6
side
Reinsert the protective glass drawer
7
(5)
Remove the two Allen screws (7) and
8
(8)
(3 mm)
Pull Crossjet (9) forwards
