And finally...
78
(6)
(5)
(4)
(1)
(2)

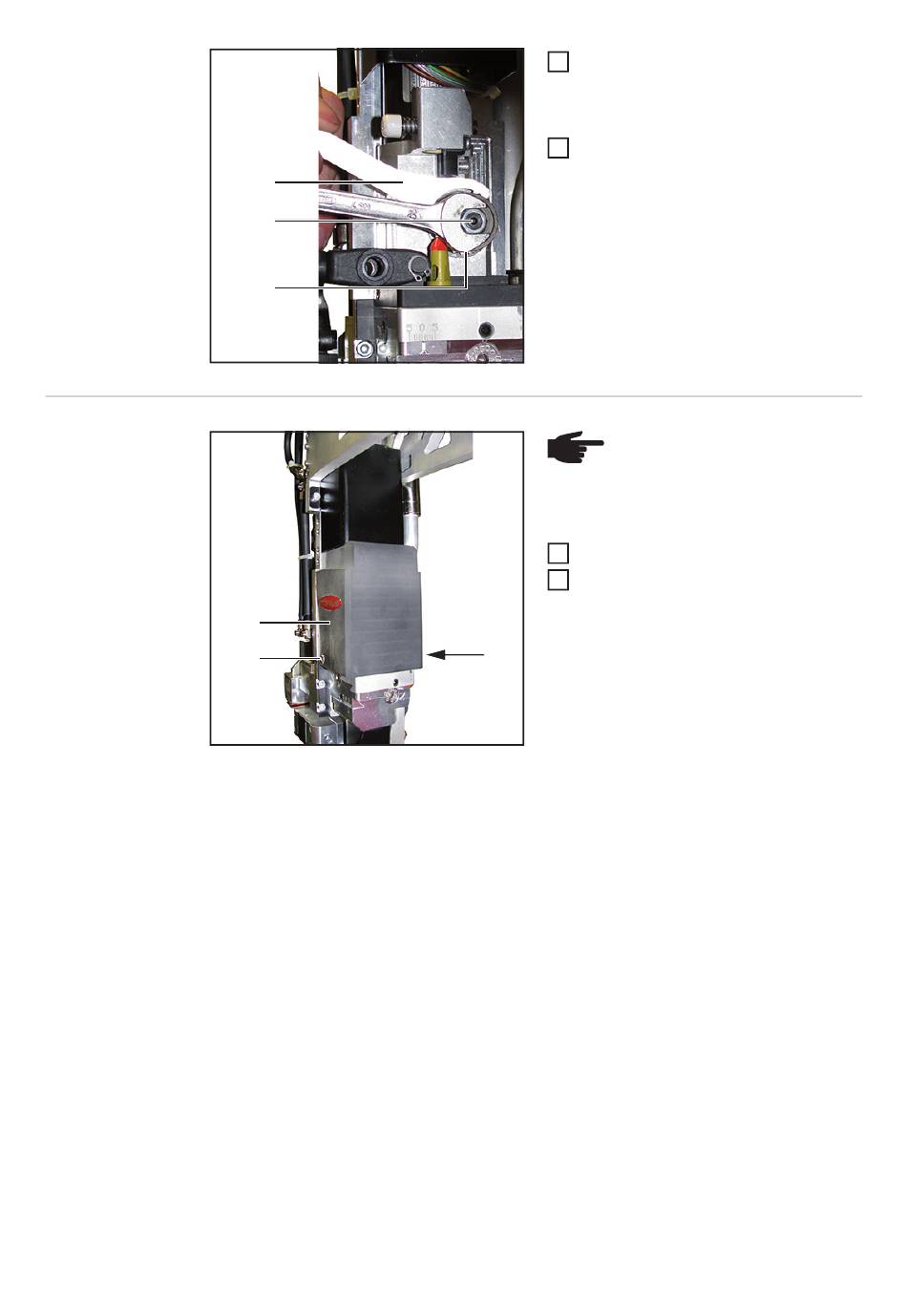

Remove 10 mm hexagonal nut (5) -
5
counter on the drive roller (4) using the
sprocket wrench (6) from the laser wel-
ding head scope of supply
Remove drive roller (4)
6
Fit in reverse sequence
NOTE! When fitting the covers en-
sure that cables are not trapped,
crushed or damaged in any way.
Fit drive rollers cover (1)
1
Secure drive rollers cover (1) with two
2
Allen screws (2)
(3 mm)
(2)
