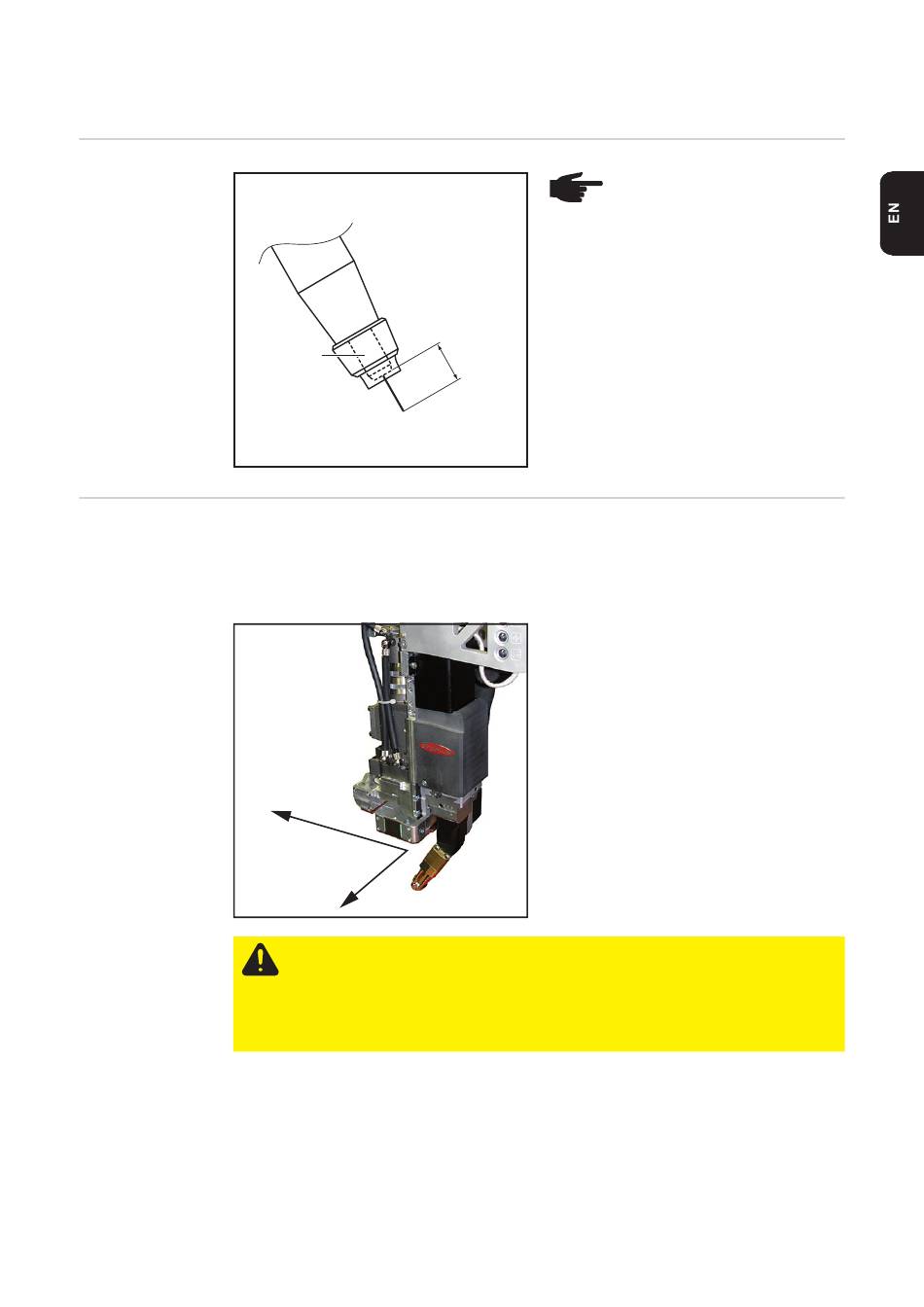

Adjusting the laser welding head
Stick-out
Schweißbrenner
Kontaktrohr
Adjustable axes
The physical position of the arc process relative to the laser beam can be adjusted in two
Cartesian coordinate axes.
Adjustment in the z-axis can only be carried out by collimating the laser optics system.
y (± 3 mm)
x (± 2 mm)
CAUTION! Risk of damage to optical fibre if laser welding head is positioned per-
pendicular to the surface of the workpiece.
If the laser optics system is placed at a right angle to the surface of the workpiece,
the laser will be reflected directly into the laser optics system. The optical fibre can
be seriously damaged if this occurs.
Always set the laser welding head at a forwards or backwards tilt angle.
NOTE! When setting the physical
position of the welding torch, en-
sure the stick-out is always 14
mm.
14 mm
Stick-Out
