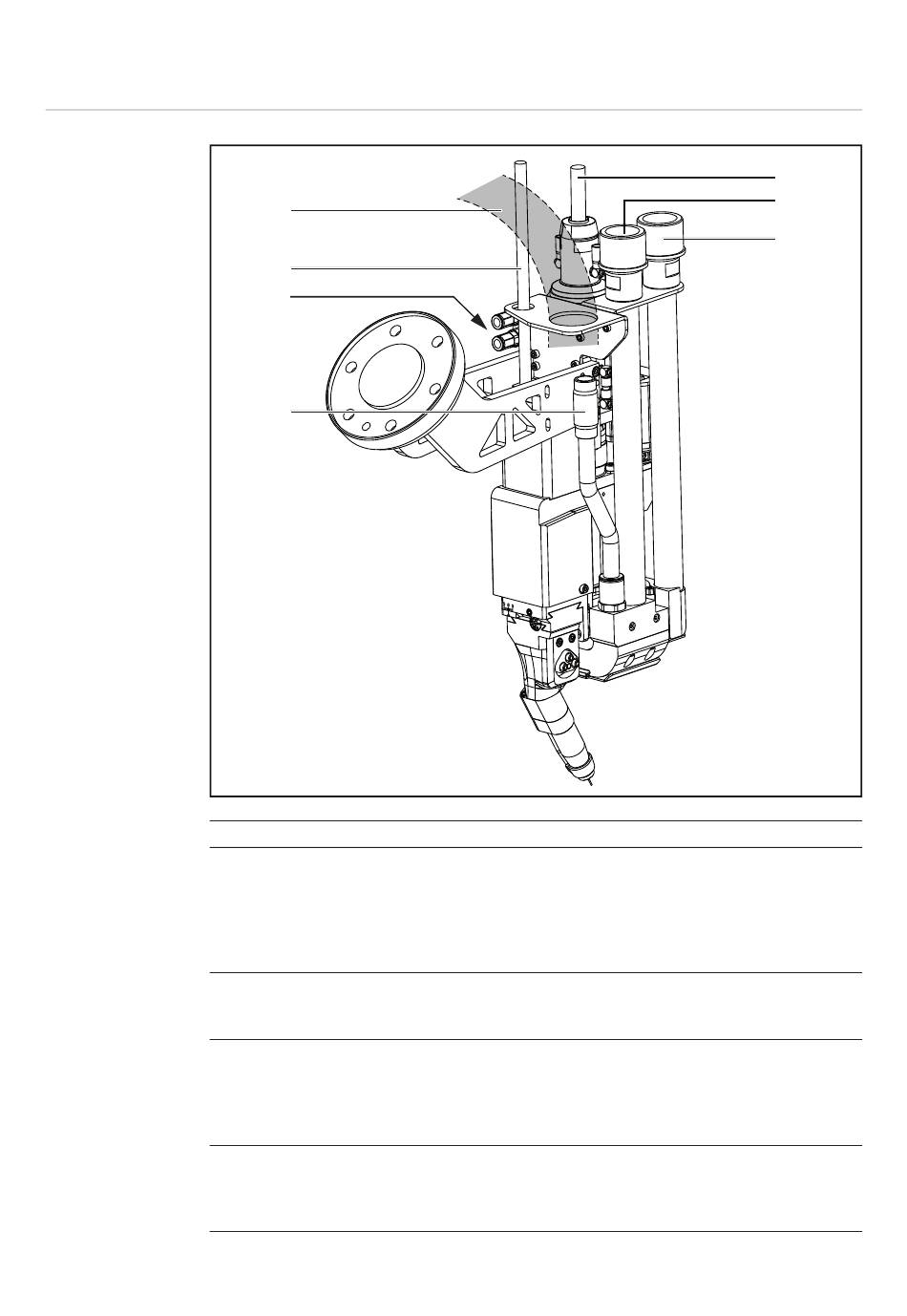

Connection specifications
Connection spec-
ifications
Item
(1)
(2)
(3)
(4)
68
(7)
(6)
(5)
(4)
Designation
Fibre optic cable for laser,
bending radius > 100 mm
IMPORTANT! Only use a fibre optic cable with fibres of </= 0.3 mm.
Larger fibres can affect the welding result and cause damage to the laser welding
head.
Crossjet outlet air connection,
for connecting a hose matching the following specifications:
-
internal diameter Di = 40 mm
Additional extractor connection,
for connecting a hose matching the following specifications:
-
internal diameter Di = 40 mm
-
max. length = 10 m
-
required extraction capacity 60 m³/h
Crossjet compressed air connection
(of LaserHybrid interconnecting hosepack)
-
Operate at 6 bar with and with a volumetric flow of 60 m³/h
-
Crossjet outlet air 170 m³/h
(1)
(2)
(3)
