Setting the radial air flow
Requirements IMPORTANT! The radial air flow must be set before switching on the laser welding head.
The flow rate meter from the laser welding head scope of supply
is required to set the radial air flow.
Setting the radial
air flow
82
(1)
1
2
3
(2) (3)
IMPORTANT! When removing the protecti-
ve glass drawer, ensure that it does not be-
come dirty, scratched or damaged in any
way.

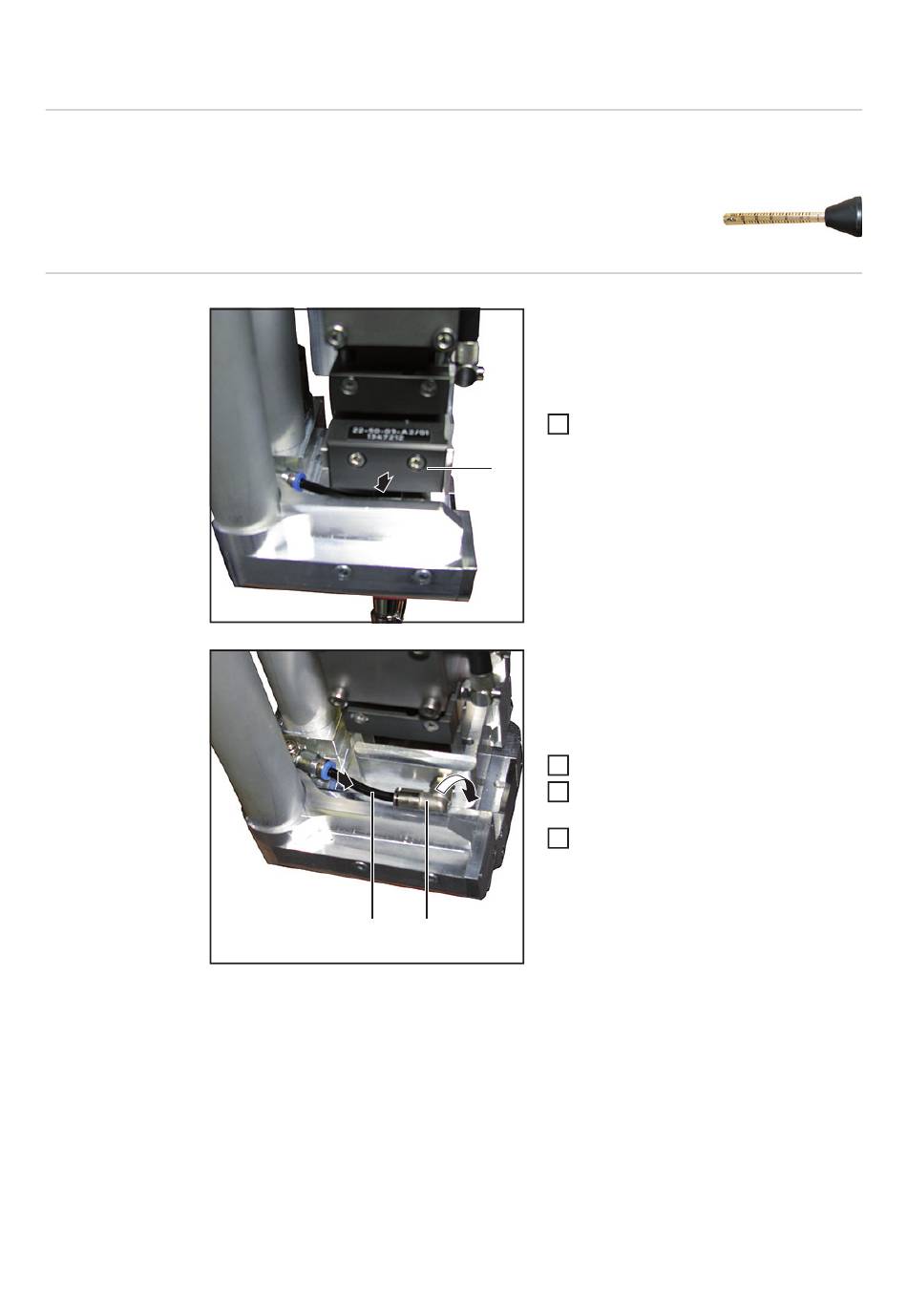

Take protective glass drawer (1) out of
1
the laser optics system
IMPORTANT! When inserting the protecti-
ve glass drawer, ensure that it does not be-
come dirty, scratched or damaged in any
way.
Disconnect air hose (2)
2
Swivel the air connection (3) to one
3
side
Reinsert the protective glass drawer
4
