– Check the plug (3) of the diagnostic socket
for damage and tight fit.
20.2

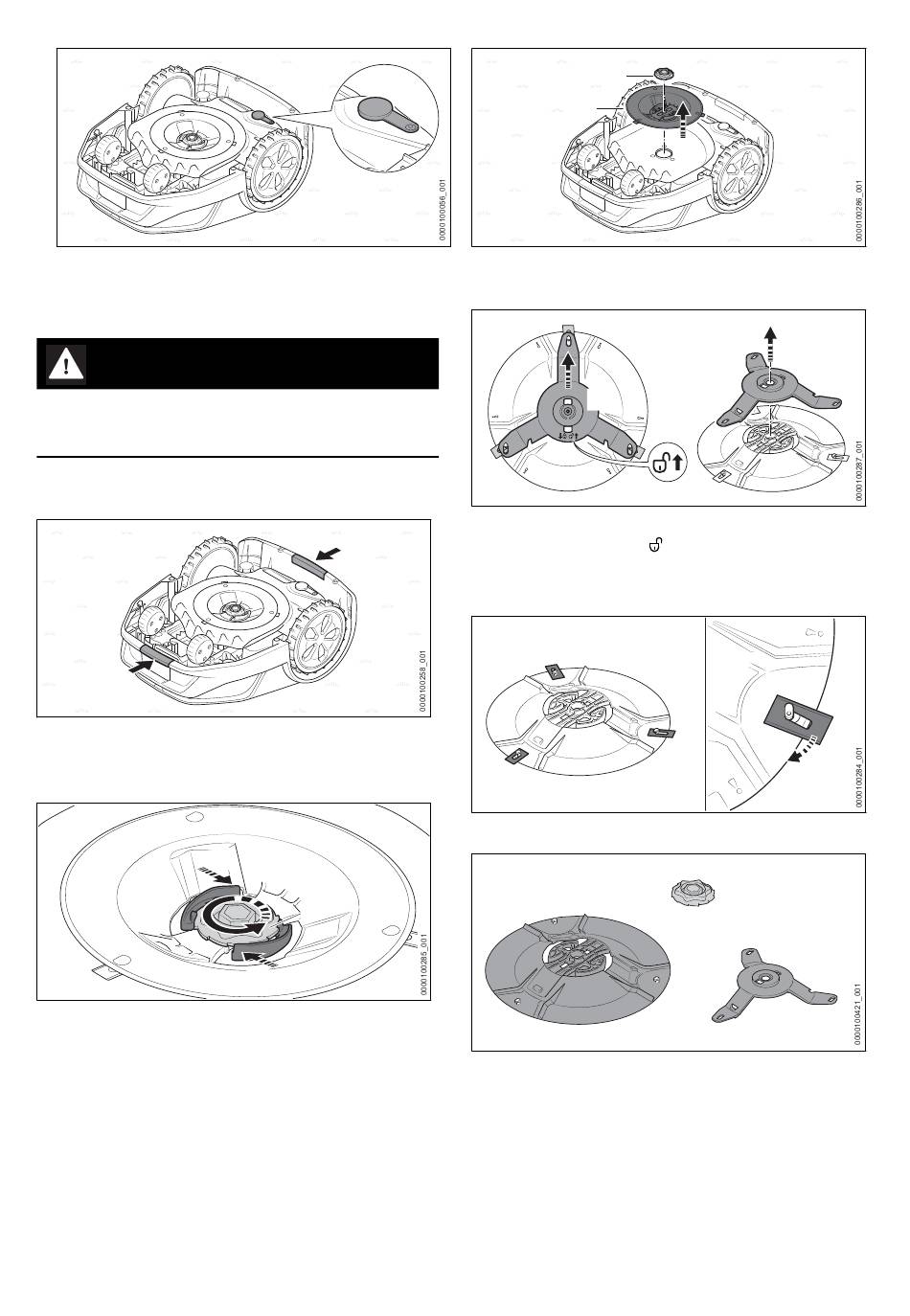

Replacing blades
WARNING
■ The cutting edges of the blades are sharp.
There is a risk of cutting oneself.
► Wear work gloves made of robust material.
► Stop the robot mower and activate the device
lock.
1
► Grip the robotic mower at the front grip sur‐
face (1) and the rear grip surface (2).
► Turn the robot mower on its back.
► Press and hold the lever (3).
► Rotate the nut (4) counterclockwise until it can
be removed.
88
3
2
3
4
3
20 Maintenance and replacement of blades
4
5
► Remove the nut (4).
► Remove the blade disk (5).
6
► Push the blade carrier (6) in the direction indi‐
cated by the arrow
The blade carrier (6) is unlocked.
► Remove the blade carrier (6).
7
7
► Detach all old blades (7).
5
► Clean, blade disk (5), blade carrier (6) and
nut (4).
.
7
4
6
0458-011-9801-A
