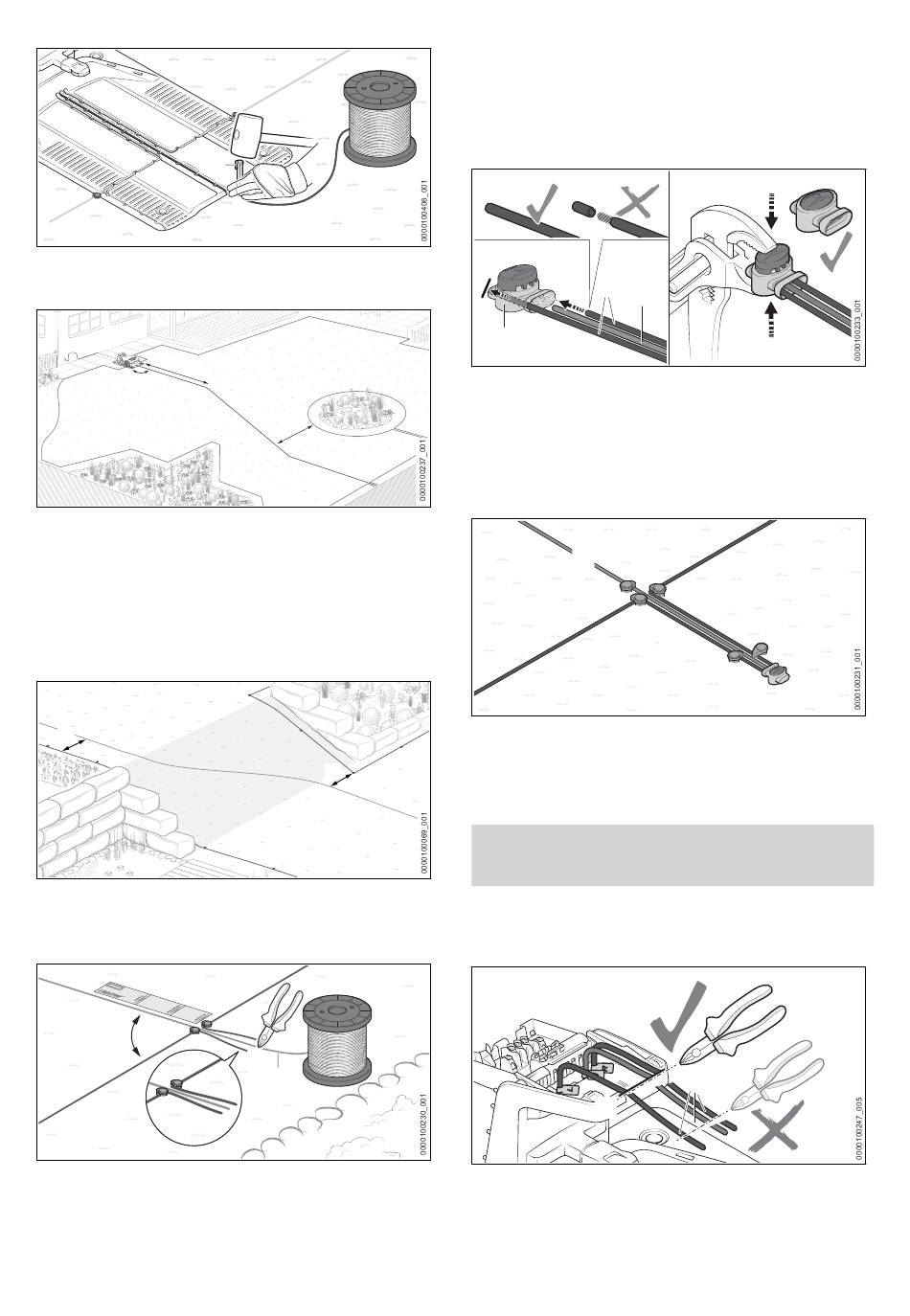

► Attach the guide wire (1) directly at the base
plate (5) with a fixing pin (6).
b
90°
► Route the guide wire (1) for b =2 m in a
straight line and at a right angle (90°) from the
docking station to the mowing area.
► Route the guide wire (1) to the wire loop (7) at
the edge of the mowing area. The distance to
circumferential perimeter wire (8) must be at
least c = 27.5 cm.
c
► Route the guide wire diagonally on inclines.
The distance to the perimeter wire must be at
least c = 27.5 cm.
90°
► Route guide wire (1) for at least e = 37 cm
®
(length: 1x iMOW
at a right angle (90°) to the wire loop (7).
80
1
6
8
1
c
7
c
7
1
Ruler) in a straight line and
11 Electrically connecting the docking station
► Route the guide wire (1) through the center of
the wire loop (7).
► Using a wire cutter, cut through the guide
wire (1) at the end of the wire loop (7) and
make all wire ends the same length.
8
1
9
► Insert the ends of the perimeter wires (8) and
the guide wire (1) into the wire connector (9)
up to the limit stop.
Do not strip the wire ends.
► Press the wire connector (1) together up to the
limit stop with a pair of pliers.
1
► Route the perimeter wires (8) and guide
wire (1) in parallel and close to each other
without the wires touching.
► Secure the wires using additional fixing pins.
11 Electrically connecting the
docking station
11.1 Connecting the perimeter wire
and guide wire
2
► Slightly tension the wire ends (1) and cut to
length along the edge (2) with a wire cutter.
8
8
1
