Confined section with guide wire
1
2
1
1
2
1

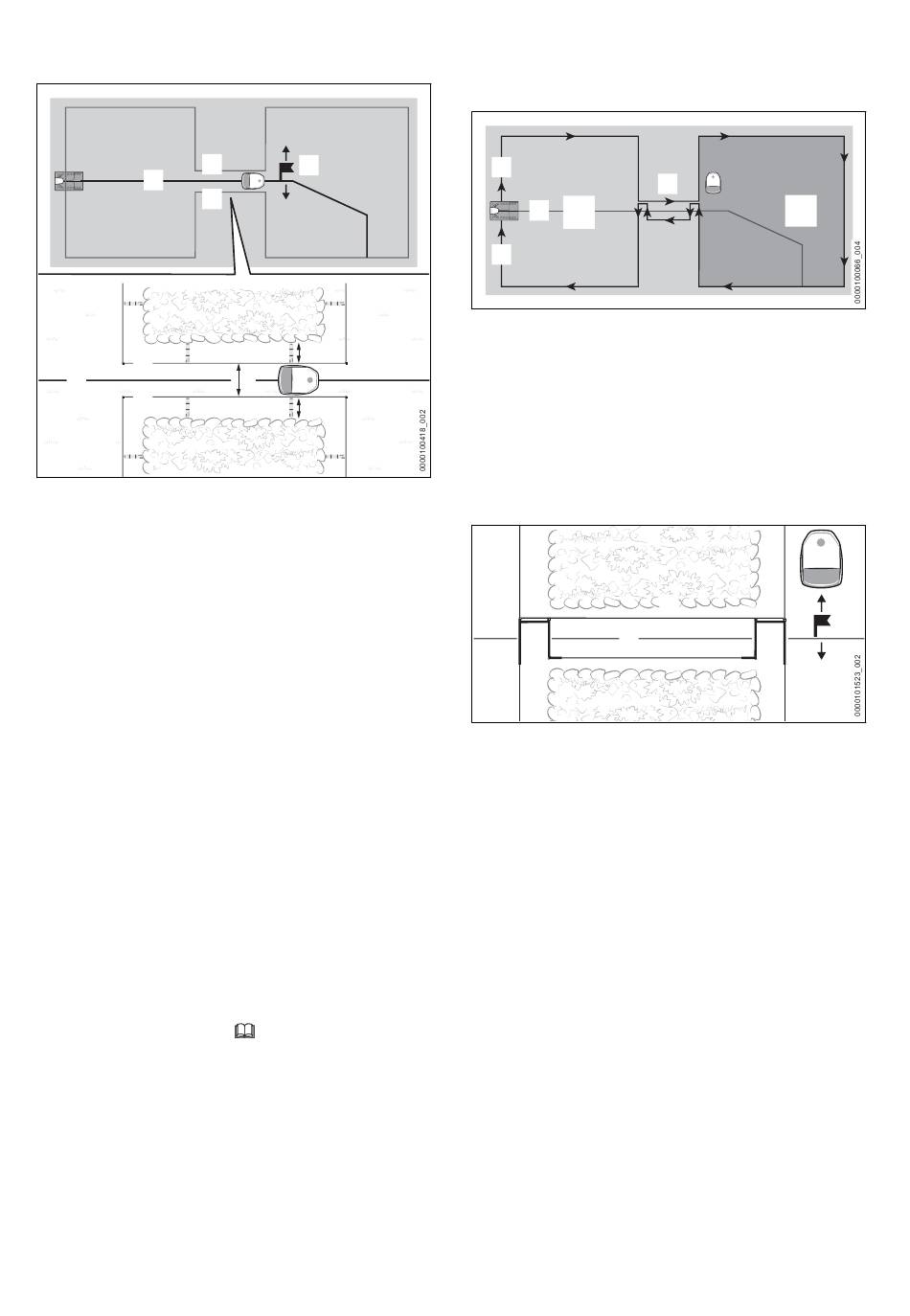

A guide wire (2) directs the robot mower through
the confined area, provided that a minimum
width (a) is maintained between the perimeter
wires (1).
On completing commissioning, it is mandatory to
place a starting point (3) behind the confined
section and the starting point's approach fre‐
quency. Otherwise, the robotic mower will not
find its way through the confined section. Starting
points can be set using the MY iMOW
► Route the perimeter wire (1) as illustrated and
make sure that the following dimensions have
been maintained:
– Minimum distance between the perimeter
wires (1) in the confined section: a = 55 cm
– If the confined section is restricted by side
obstacles: Include an additional distance of
b = 37 cm (length: 1x iMOW
► Route the guide wire (2) in the middle of the
confined section.
► If the side distance b = 37 cm (length:
®
1x iMOW Ruler) is not possible: Install a cor‐
ridor to be able to guide the robot mower to
another mowing area
confined section from the mowing area.
74
3
b
a
b
®
app.
®
Ruler)
8.11 or block off the
8 Installing the Perimeter Wire
8.11 Corridor
Functional description
2
A
3
2
Use a corridor (1) to overcome confined sections
in a precise way or to define passageways. The
corridor divides the mowing area into a main
mowing area (A) and another mowing area (B).
The perimeter wire (2) is routed without interrup‐
tions. It forms a corridor at the transition from the
main mowing area (A) to the other mowing
area (B).
4 3
Wire loops (4) indicate to the robotic motor when
a corridor starts or ends.
A guide wire (3) must be installed in the middle
of the corridor.
A corridor must be followed by a starting point (5)
within the mowing area (B). Otherwise, the
robotic mower will not find its way from the main
mowing area (A) through the corridor to the other
mowing area (B). Starting points and their
approach frequency can be set using the
®
MY iMOW app.
There is no mowing within a corridor.
1
B
1
4
