3 Overview

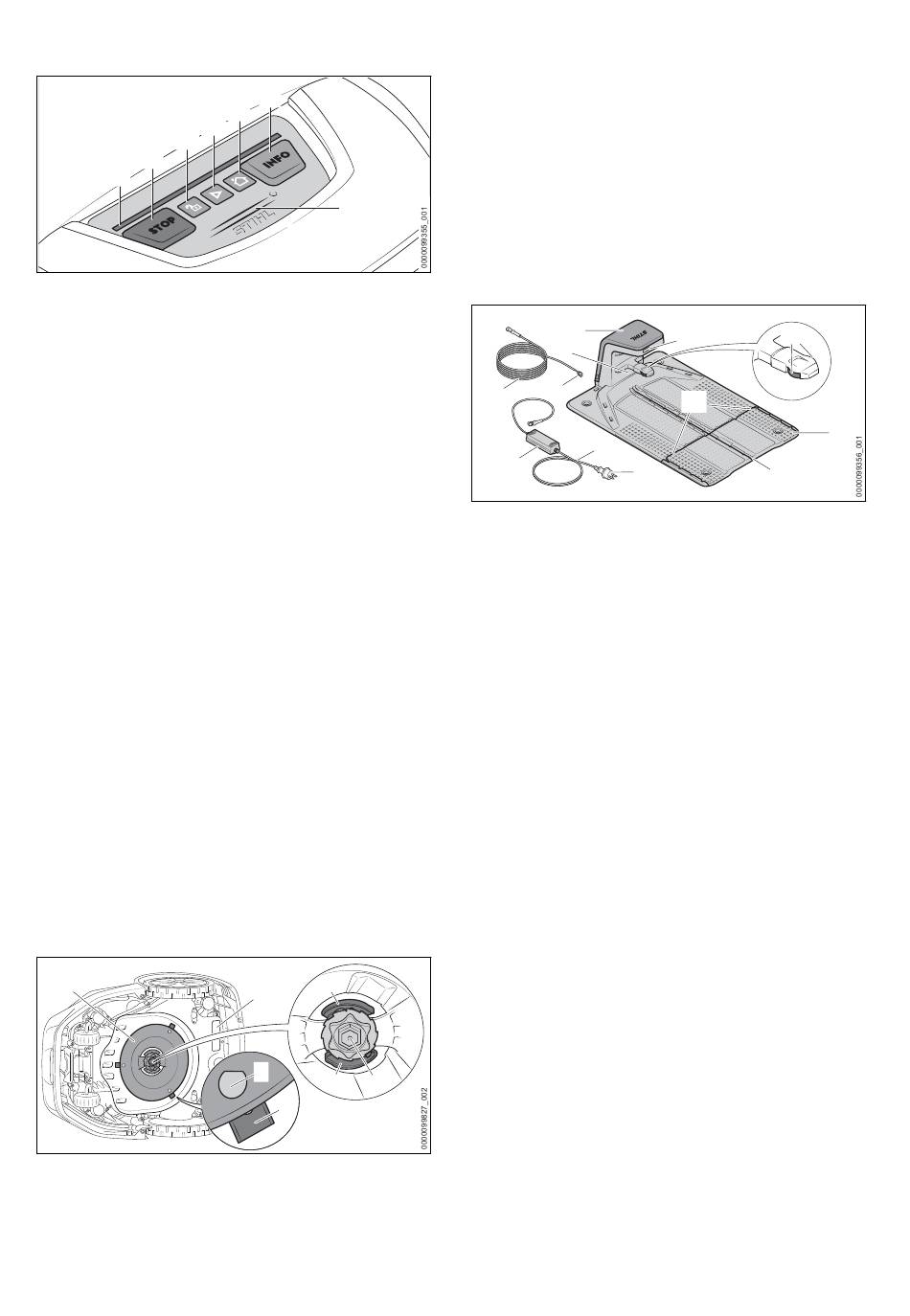

3.2 Control panel
4
3
2
1
1 Light strip
The light strip shows the robot mower's status
and signals which key combination to press
for a certain action.
2 STOP pushbutton
The pushbutton stops the robot mower and
mowing unit. The pushbutton also activates
the device lock.
3 LOCK pushbutton
This pushbutton unlocks the robot mower in
conjunction with a displayed key combination.
4 START pushbutton
This pushbutton starts mowing operations.
5 HOME pushbutton
This pushbutton makes the robot mower
return to the docking station or cancels the
current mowing job if the robot mower is in
the docking station.
6 INFO pushbutton
This pushbutton starts voice output about the
current status of the robot mower.
7 Rain sensor
The rain sensor reacts to moisture. Depend‐
ing on the setting, the robot mower can take
weather conditions into account for the mow‐
ing plan.
3.3 Mowing unit
1
1 Blade disk
The blade disk serves to attach the blades.
2 L-pins
The L-pins are for mounting the blades.
0458-011-9801-A
6
5
7
4
#
2
4
5
3
3 Blades
The blades mow the lawn.
4 Levers
The levers secure the nut.
5 Nut
The nut secures the blade disk.
# Rating plate with machine number
3.4 Docking station and power sup‐
ply
6
#
5
4
2
3
1
1 Mains plug
The mains plug connects the connecting
cable to a socket.
2 Connecting cable
The connecting cable connects the power
supply to the mains plug.
3 Power supply
The power supply supplies the docking sta‐
tion with energy.
4 Charging cable
The charging cable connects the power sup‐
ply to the docking station.
5 Plug
The plug connects the charging cable to the
docking station.
6 Hood
The hood covers the docking station and pro‐
tects the internal electronics.
7 LED
The LED indicates the status of the docking
station.
8 Charging contacts
The charging contacts connect the docking
station with the robot mower.
9 Base plate
The base plate is the base for the docking
station.
10 Cable duct
The guide wire is routed in the middle cable
duct.
