9 Completing the Perimeter Wire Installation
8.14 Small Mowing Area
The STIHL AKM 100 small area module must be
used for a small mowing area where less than
20 m of perimeter wire is required.
The STIHL AKM 100 stabilizes the wire signal
and is incorporated into the perimeter wire by
means of wire connectors.
9 Completing the Perimeter
Wire Installation
9.1 Completing the routing of the
perimeter wire
Docking station on the edge of the mowing area,
docking station on the edge of the lawn area
3

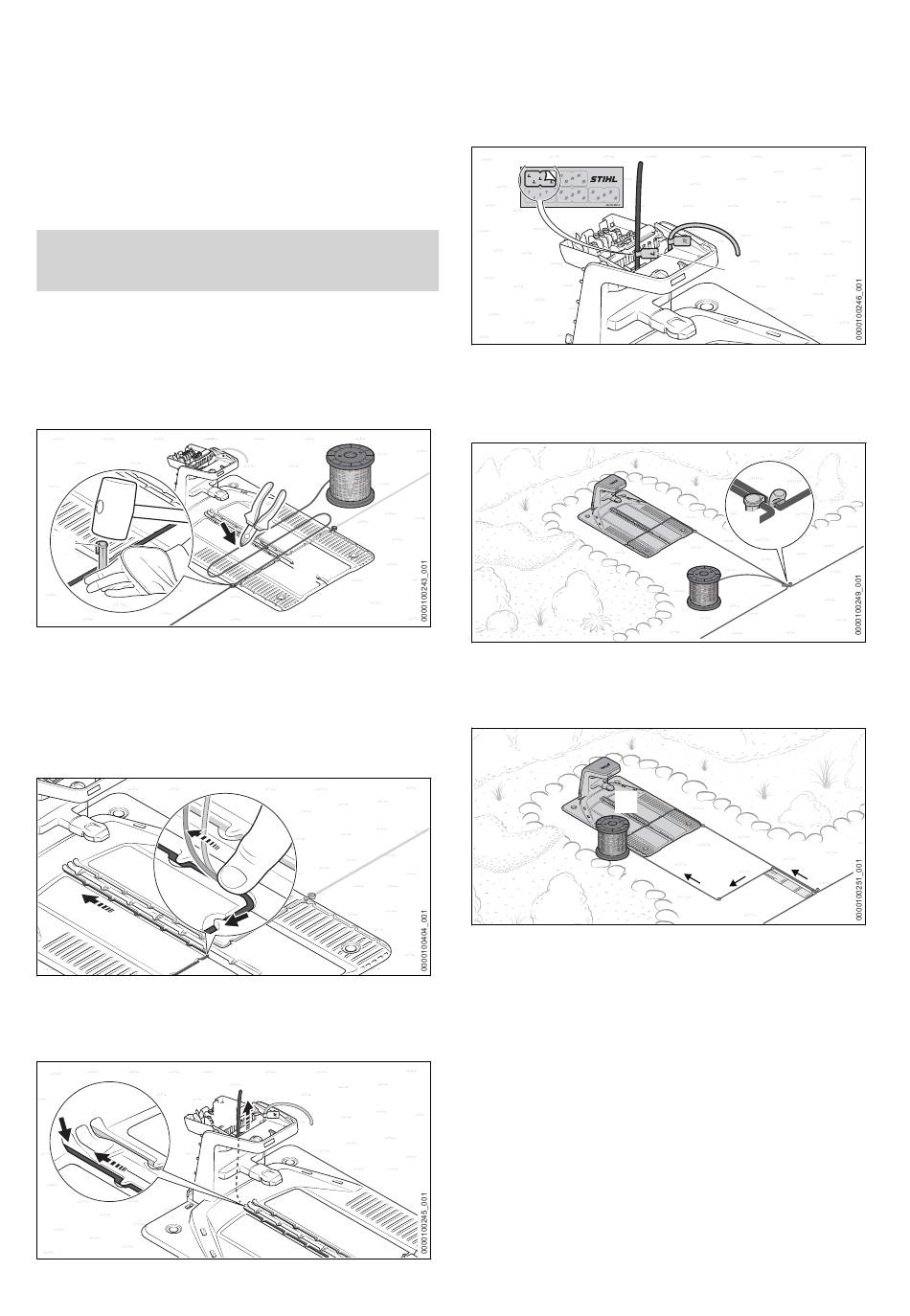

► Attach the perimeter wire (1) directly on the
base plate (2) with a fixing pin (3).
► Use the perimeter wire (1) to measure two
times the width of the base plate (2) and then
cut the perimeter wire (1) to length with a wire
cutter.
4
1
► Install the perimeter wire (1) in the base plate
so that the guide wire lies flat in the cable duct
and is secured by the hook (4).
5
0458-011-9801-A
1
2
1
► Insert the perimeter wire (1) into the left con‐
duit (5) and feed it through.
Push the wire end (1) upward inside the docking
station.
► Mark the wire end (1) near the housing using
the matching cable marker (6).
Docking station outside the mowing area
► Route the perimeter wire (1) close to the
already routed perimeter wire and secure with
a fixing pin (2).
3
1
► Route the perimeter wire (1) parallel and
closely to the other perimeter wire for 37 cm
®
(length: 1x iMOW
station without crossing over the perimeter
wires.
► Route the perimeter wire (1) back to the edge
and further toward the base plate (3).
