English
11 Cable duct
The perimeter wire is routed in the outer
cable ducts.
# Rating plate with the machine number
12

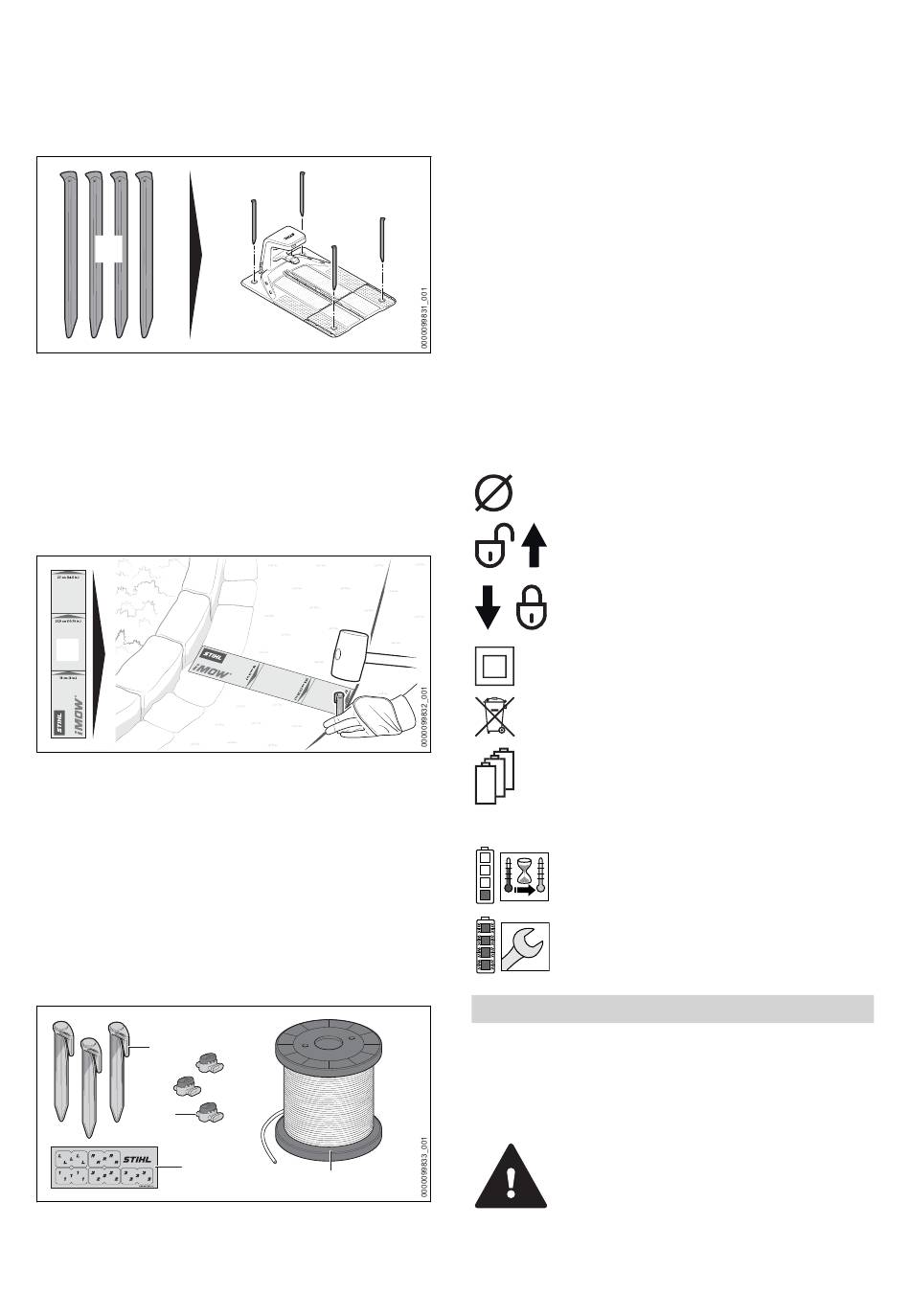

12 Ground peg
The four ground pegs secure the docking sta‐
tion to the ground.
3.5
iMOW
Ruler and Installation
®
Kit
®
iMOW
Ruler
1
1 iMOW
®
Ruler
The ruler makes it easier to install wires and
serves to maintain the correct distance.
Installation Kit
An installation kit is required to commission the
robot mower; it is not included in the scope of
delivery of the robot mower. Appropriate installa‐
tion kits are available as accessories for different
garden sizes.
1
2
3
52
1 Fixing pin
2 Wire connector
3 Cable markers
4 Wire coil
3.6
Meanings of symbols on the robot mower, dock‐
ing station, power supply or installed battery:
4
4.1
Meanings of warning symbols on the robot
mower, docking station, power supply or installed
battery:
4
The fixing pin secures the perimeter wire and
guide wire to the ground.
The wire connector connects wire ends to
each other.
The cable markers serve to mark wire ends
on the inside of the docking station. They
facilitate the assignment of the wire ends
when connecting to the correct terminal.
The wire coil is required to install the perime‐
ter wire and guide wire.
Symbols
This symbol shows the diameter of the
blade disk.
This symbol indicates the direction for
unlocking the blade carrier when
changing blades.
This symbol indicates the direction for
locking the blade carrier when chang‐
ing blades.
Protection class 2, double insulated.
Do not dispose of the product with domes‐
tic waste.
The information next to this symbol indi‐
cates the energy content of the battery
according to the cell manufacturer's specifi‐
cation. The energy content available during
use is lower.
1 LED lights up red. The battery is too
warm or too cold.
4 LEDs flash red. There is a fault in the
battery.
Safety Precautions
Warning symbols
Observe safety instructions and take
the necessary precautions.
4 Safety Precautions
0458-011-9801-A
