English

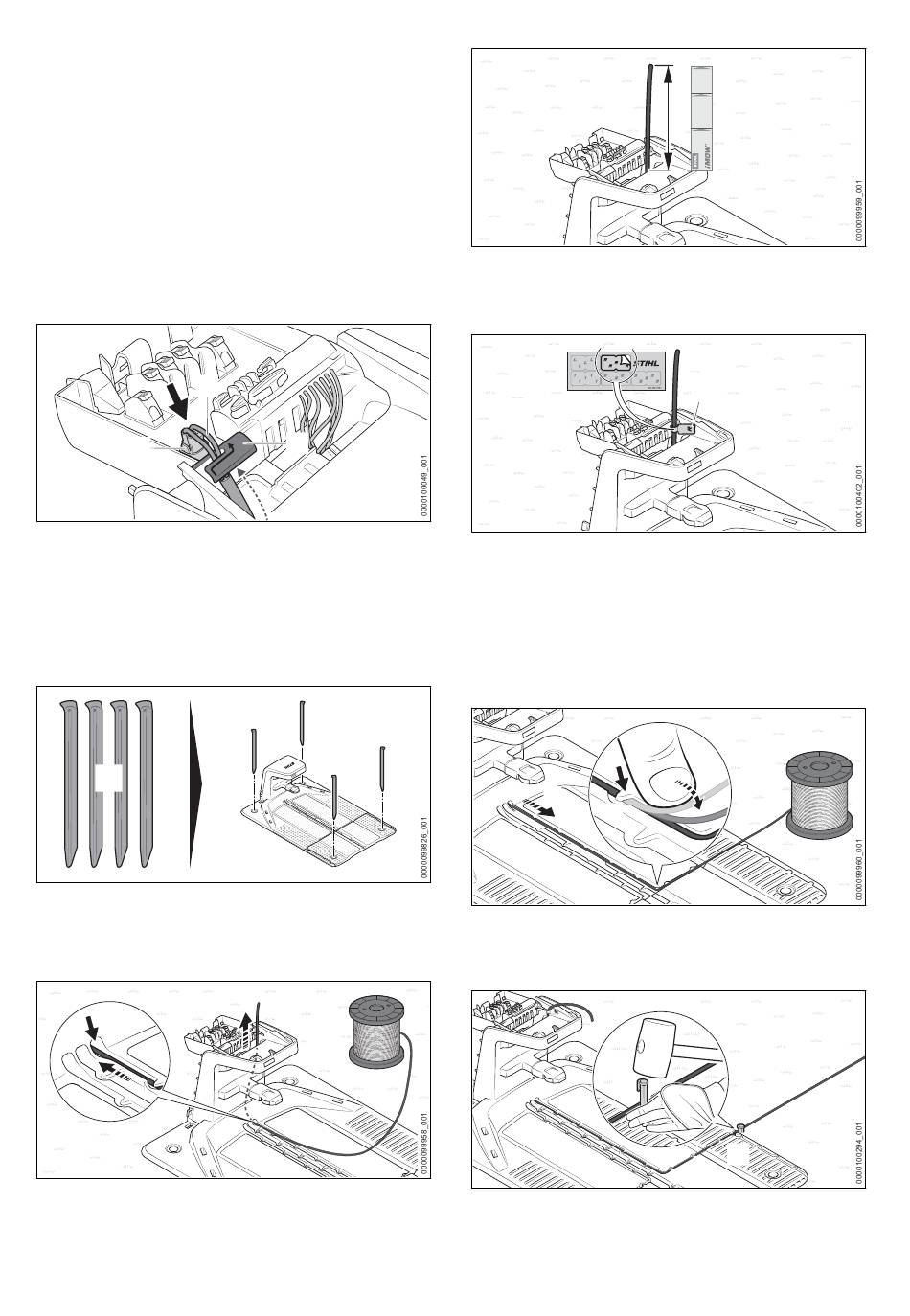

► If the docking station has been positioned
directly against a wall or you want to route the
charging cable underneath the base plate
toward the side:
► Open the edge and deburr it on the desired
side of the base plate at position (A).
► Cut out and deburr an opening in the center
of the base plate (B).
► Insert the plug (4) into the opening (B) and
feed the charging cable (6) through.
Push the charging cable (6) upward inside
the docking station.
6
4
► Secure the charging cable (6) in the cable
holder (7).
► Insert the plug (4).
The plug (4) audibly and noticeably engages
on both sides.
Securing the docking station
8
► Secure the docking station on the ground with
four ground pegs (8).
Feeding the perimeter wire
10
► Insert the beginning of the wire (9) into the
right conduit (10) and feed it through.
Push the perimeter wire (9) upward inside the
docking station.
66
7
9
7 Positioning the docking station
► Feed the perimeter wire through until it pro‐
trudes upward for a = 37 cm (length:
®
1x iMOW Ruler).
► Using the appropriate cable marker (11), mark
the beginning of the wire (9) near the housing.
Marking will facilitate the subsequent connec‐
tion to the correct terminal.
7.4 Positioning the docking station
within the mowing area
1
2
► Install the perimeter wire (1) in the base plate
so that the guide wire lies flat in the cable duct
and is secured by the hook (2).
4
► Attach the perimeter wire (1) directly on the
base plate (3) with a fixing pin (4).
If the docking station is against a wall:
37 cm (14.5 in.)
27,5 cm (10.75 in.)
a
15 cm (6 in.)
9
11
1
3
0458-011-9801-A
