11 Electrically connecting the docking station

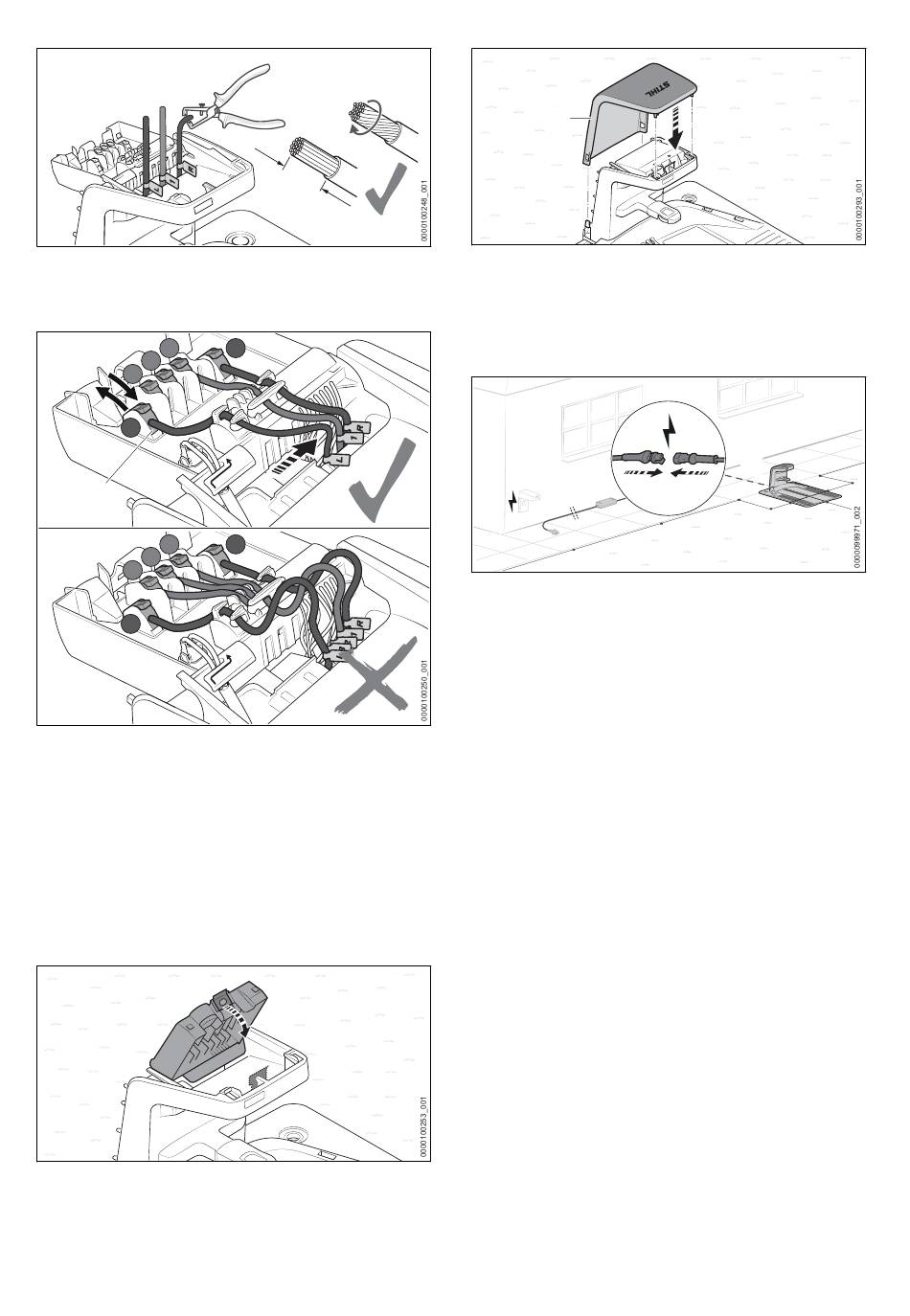

► Strip a = 10 mm of the wire ends.
► Twist wire strands so that no individual strands
stick out.
1
2
3
L
3
1
2
3
L
► Assign the labeled wire ends to the respective
terminals.
► Fold the lever (3) of the corresponding termi‐
nal backward.
► Insert the stripped wire end into the corre‐
sponding terminal and fold the lever (3) for‐
ward again to close.
► Secure the perimeter wires and guide wire in
the cable holders as shown and press toward
the right.
► Fold the cover (4) toward the front.
The cover (4) engages with an audible and
noticeable click.
0458-011-9801-A
a
R
R
4
5
► Put on the hood (5).
The hood (5) engages with an audible click.
11.2 Routing the charging cable and
connecting the power supply
3
2
► Route the charging cable (1) to the location of
the power supply (2).
► Choose the power supply (2) location so that
the following conditions are met:
– The power supply (2) and the connecting
cable are outside of the mowing area.
– A suitable wall socket is within reach of the
power supply (2).
– The power supply (2) rests on a flat and not
permanently wet surface.
– The power supply (2) is installed elevated
above the ground in case it is exposed to
more protracted wet conditions.
– If possible, protect the location against
adverse weather conditions and direct sun‐
light.
► Route the charging cable so that the following
conditions are met:
– The charging cable (1) is outside of the
mowing area.
– The charging cable (1) is routed so that
people cannot trip over it.
– The charging cable (1) is not under tension
or tangled.
– The charging cable (1) is completely
unwound and is not under the docking sta‐
tion.
– The charging cable (1) is not on a perma‐
nently wet surface.
► Connect charging cable (1) with the plug (3) of
the power supply (2).
