7 Positioning the docking station
With this variant, the perimeter wire is routed
around the docking station toward the rear and
the edge of the mowing area. The guide wire is
routed toward the front to the edge of the mow‐
ing area.
The minimum lateral distance to adjacent areas
must be at least a = 37 cm (length: 1x iMOW
Ruler).
The minimum distance between the rear edge of
the docking station and the edge of the mowing
area must be b = 2 m.
It must be possible to route the guide wire (1) for
c = 2 m in a straight line from the docking station
to the mowing area.
► Prepare the docking station,
► Set up the docking station in the center of the
mowing area, 7.6.
7.3 Preparing the docking station
Connecting the charging cable.
NOTICE
■ In assembled condition, the plug connections
of the charging cable are protected against
contamination, e.g. dust and dirt. Contamina‐
tion of the plug connections may result in
breakdowns of the docking station.
► Protect open plug connections against con‐
tamination.
► Clean the contaminated plug connections
as described in this User Manual.
Normally the charging cable is connected from
the rear.
0458-011-9801-A

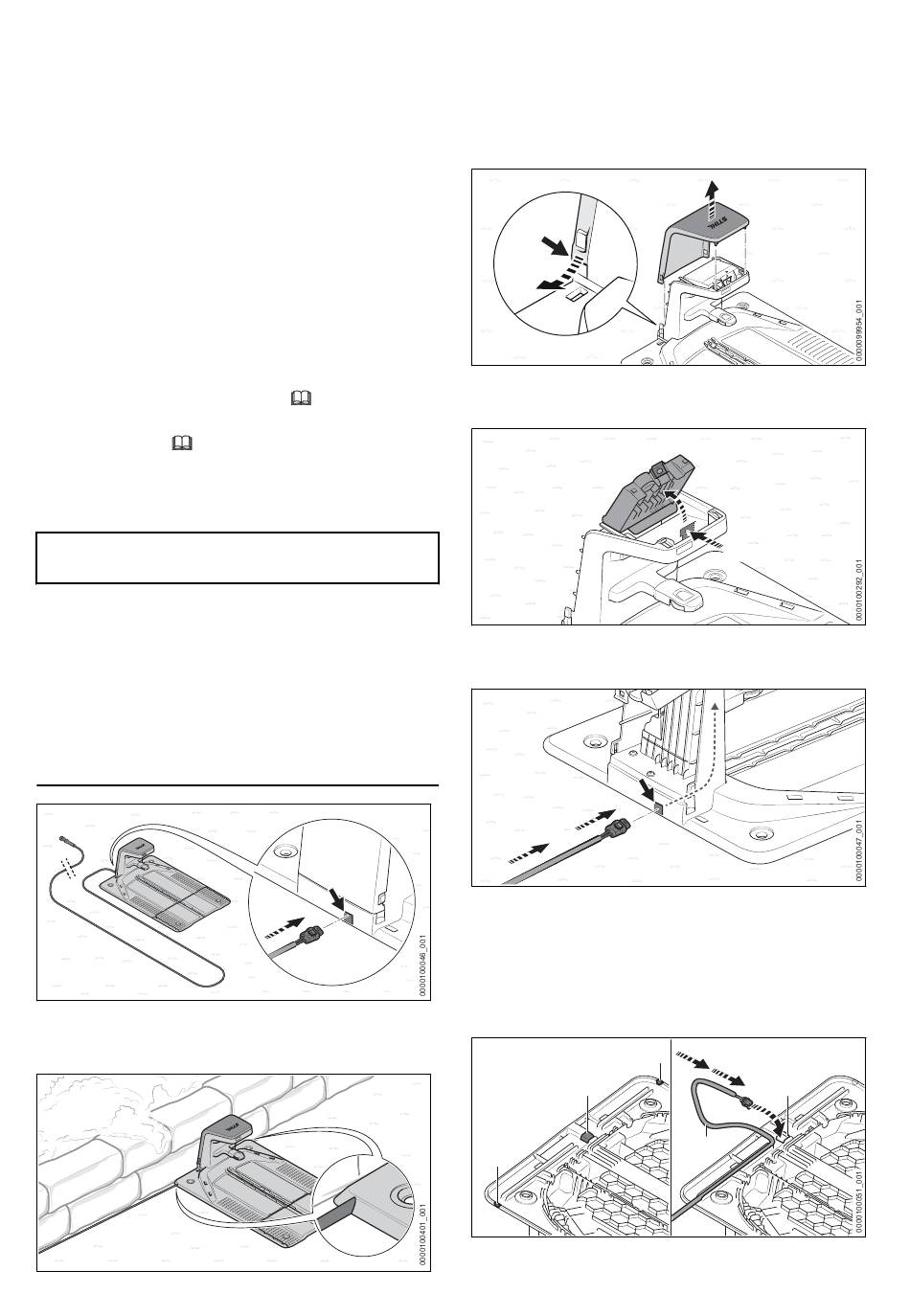

If the docking station has been positioned
directly against a wall, it is also possible to install
the charging cable under the base plate. The
charging cable can be routed out of the base
plate to the left or right.
®
► Slightly bend the hood (1) toward the outside
7.3.
► Press the retaining latch (2) and open the
► If you intend to connect the docking station
1
on both sides and remove it upward.
cover (3).
from the rear:
► Insert the plug (4) into the conduit (5) and
feed the charging cable (6) through.
Push the charging cable (6) upward inside
the docking station.
A
B
A
English
3
2
B
4
6
