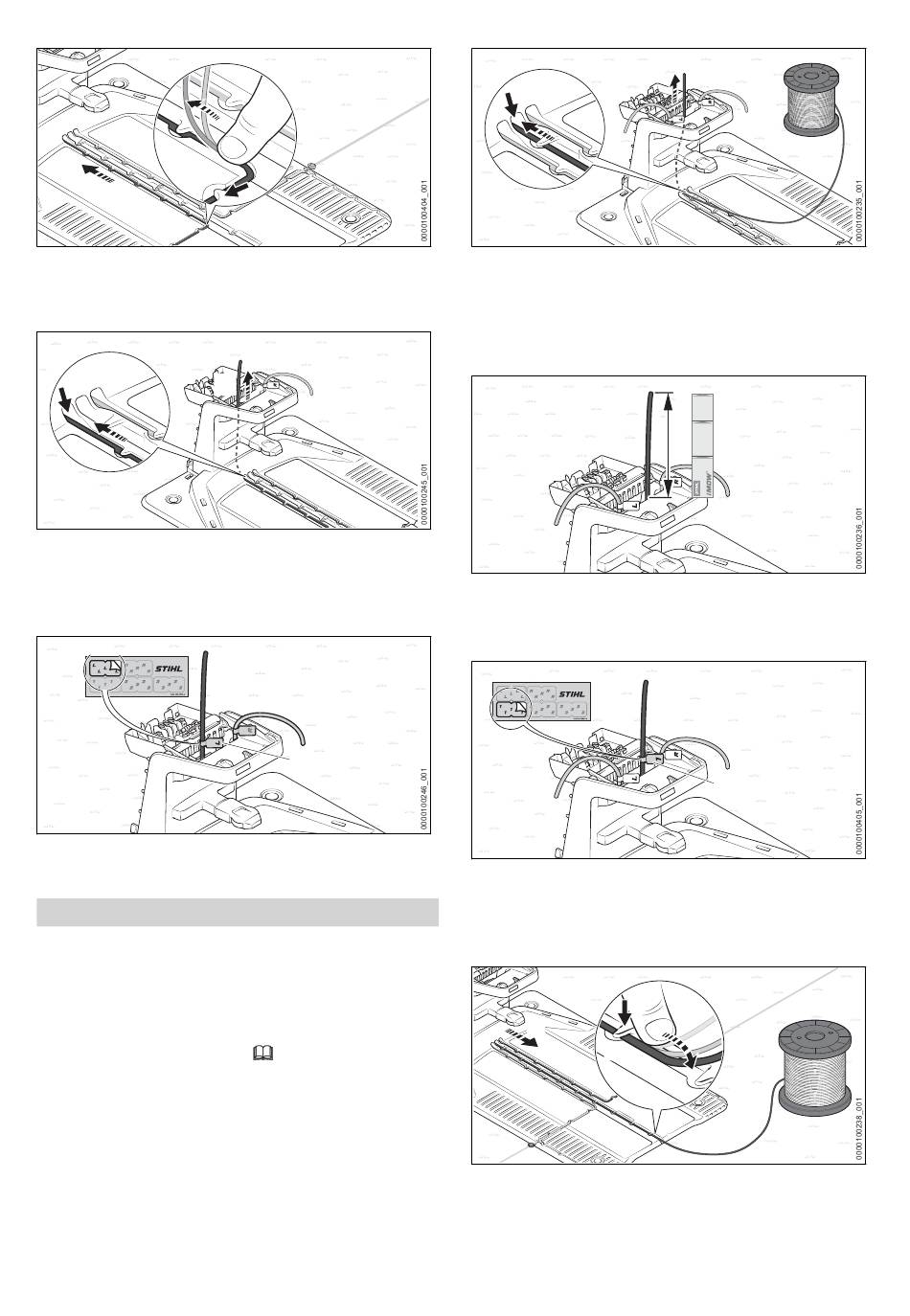

10 Installing Guide Wire
4
1
► Install the perimeter wire (1) in the base plate
so that the guide wire lies flat in the cable duct
and is secured by the hook (4).
5
► Insert the perimeter wire (1) into the left con‐
duit (5) and feed it through.
Push the wire end (1) upward inside the docking
station.
► Mark the wire end (1) near the housing using
the matching cable marker (6).
10 Installing Guide Wire
10.1 Installing guide wire
Take into account the position of all guide wires
when installing the perimeter wire.
► Take into account the general guidelines for
installing the guide wire
0458-011-9801-A
1
1
6
8.1.
2
► Insert the beginning of the guide wire (1) into
the middle conduit (2) and feed the wire
through.
Push the guide wire (1) upward inside the
docking station.
► Feed the guide wire (1) through until it pro‐
trudes upward for a = 37 cm (length:
®
1x iMOW Ruler).
► Using the appropriate cable marker (3), mark
the guide wire (1) near the housing.
Marking will facilitate the subsequent connec‐
tion to the correct terminal.
1
4
► Install the guide wire (1) in the base plate so
that the guide wire lies flat in the cable duct
and is secured by the hook (4).
English
1
37 cm (14.5 in.)
27,5 cm (10.75 in.)
a
15 cm (6 in.)
1
3
