English

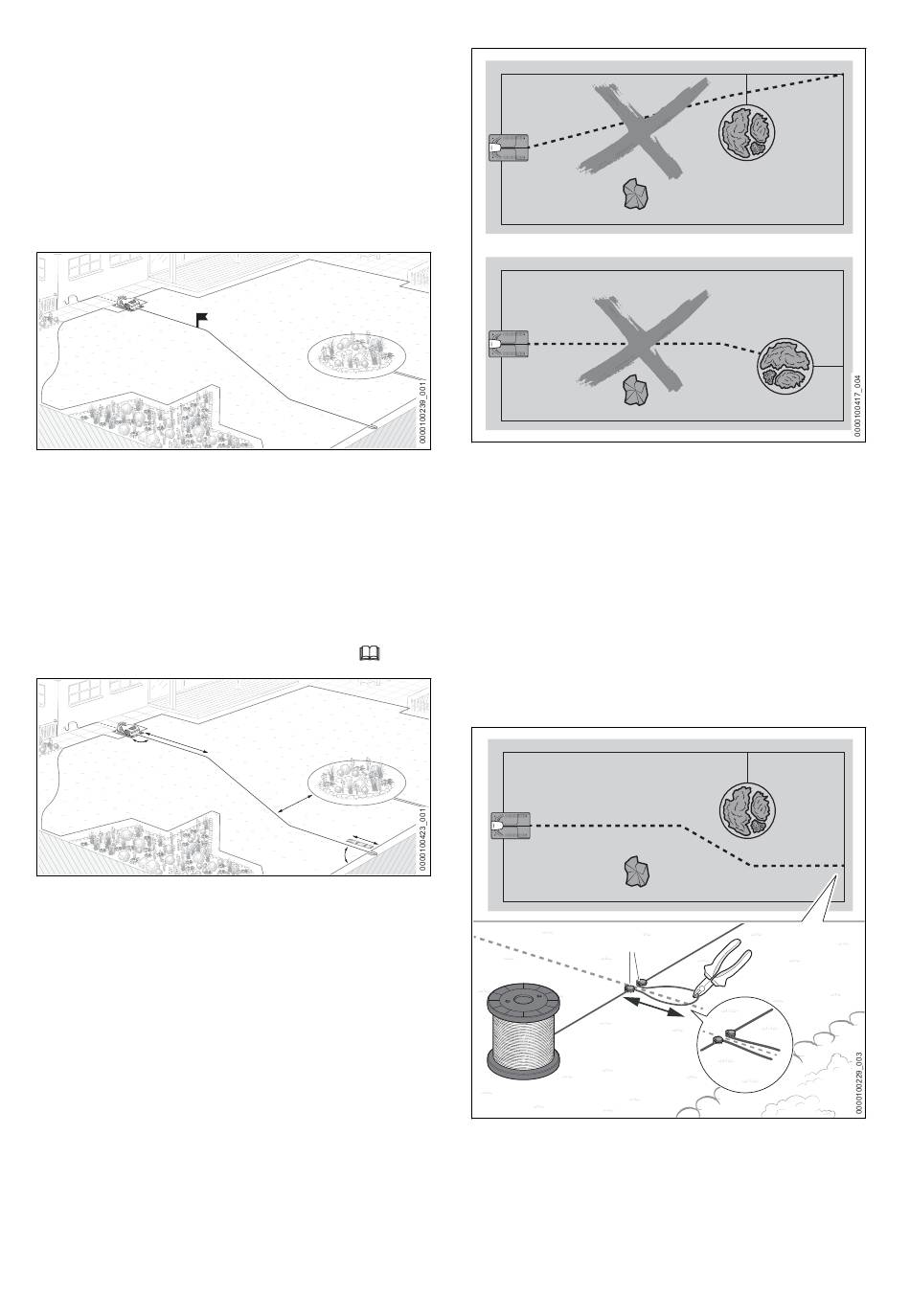

8.2 Planning guide wire and routing
connection point in the perime‐
ter wire
Carefully plan the routing of one or several guide
wires in advance. Take into account the position
of all guide wires when installing the perimeter
wire. At least one guide wire must be installed;
two guide wires may be installed.
2
B
A guide wire (1) fulfills the following functions:
– Orientation for returning to the docking station
(2)
– Moving toward a starting point (3)
– Splits the mowing area into zones (A and B)
Starting at the docking station (2), install the
guide wire (1) across the mowing area and con‐
nect it to a point on the circumferential perimeter
wire (4) that is as far away as possible.
a
90°
► Plan the guide wire so that the following condi‐
tions are met:
– Route the guide wire for a length of a =2 m in
a straight line from the docking station to the
mowing area.
– The minimum distance between the guide wire
and the circumferential perimeter wire is
b = 27.5 cm
– Route the guide wire with a minimum distance
c = 37 cm (length: 1x iMOW
straight line and at a right angle to the perime‐
ter wire and connect it.
70
A
3
1
4
10.1
b
c
90°
®
Ruler) in a
8 Installing the Perimeter Wire
– The guide wire must not cross over a blocked-
off area connection.
– The guide wire must not be connected to the
perimeter wire in a corner.
– The guide wire must not be connected to the
perimeter wire of a blocked-off area.
– The guide wire must not cross over a perime‐
ter wire.
Exception: When installing a corridor, the
guide wire must cross the perimeter wire.
– The guide wire must not be kinked or under
tension, and it must not cross over itself.
5
d
4
The connection point for the guide wire must be
installed during the installation of the circumfer‐
ential perimeter wire (4).
► Secure the perimeter wire (4) at the intended
areas using a fixing pin (5).
0458-011-9801-A
