26.2.2 Attaching M2 logistics protective caps to the M2Smart SE
®

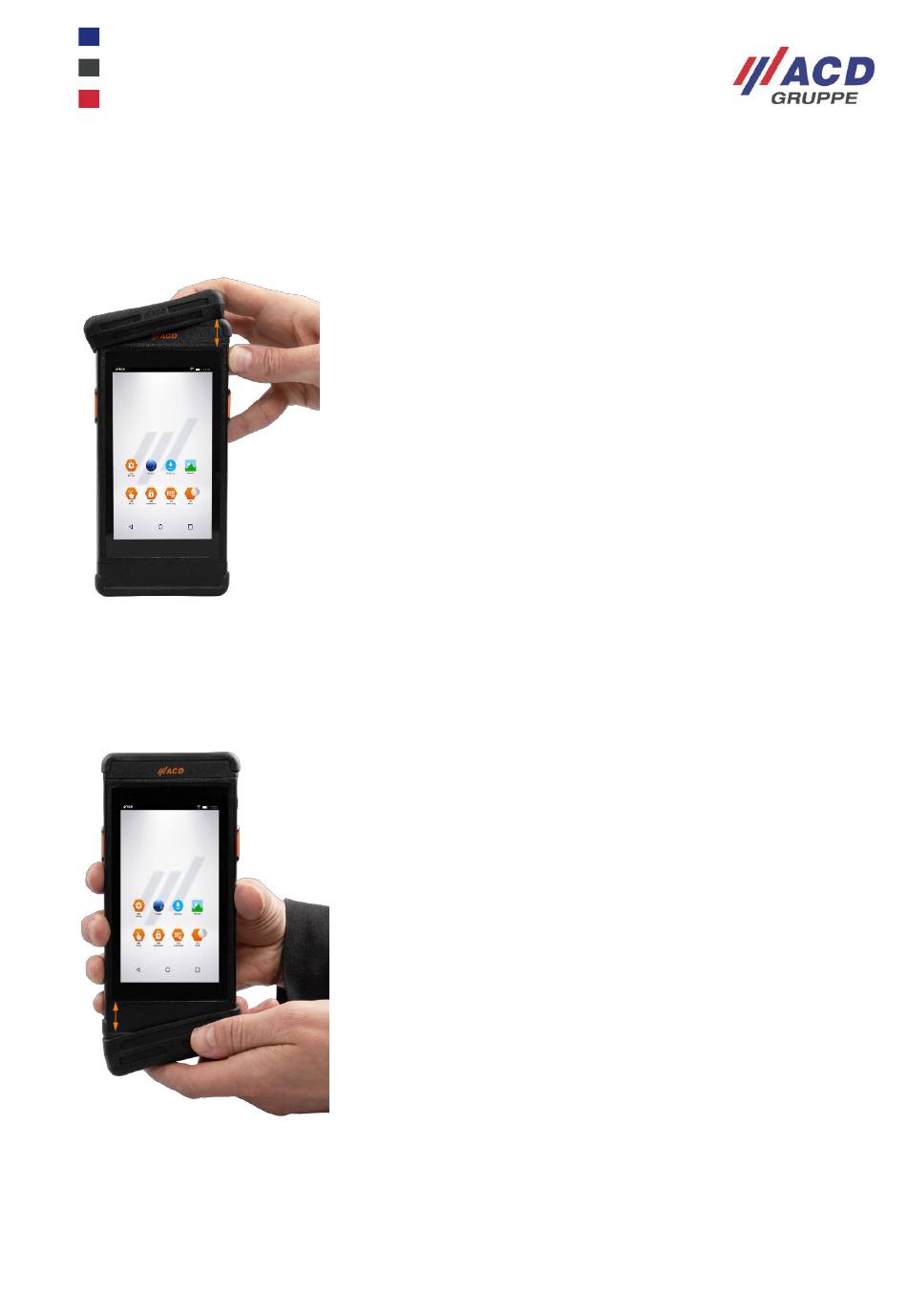

To attach the upper and lower M2 logistics protective cap to the M2Smart SE, place it over the
corresponding blind cap.
The upper logistics protective cap is marked by the ACD logo and also has a recess for the scanner.
Fig. 89: Attaching the upper logistics protective cap
The lower logistics protective cap is identified by the recess for the retaining strap and the charging contacts.
First loosen the retaining strap (see section 18.1.7) and then attach the lower logistics protective cap. You
can then reattach the retaining strap (see section 18.1.7).
Fig. 90: Attaching the lower logistics protective cap
®
