ACD GRUPPE M2Smart SE Set Kurzübersicht Seite 77

Complies with EN 60825-1:2014
P ≤ 1.0 mW
LASER RADIATION
DO NOT STARE INTO BEAM
Always switch off the Mobile Handheld Computer during cleaning.

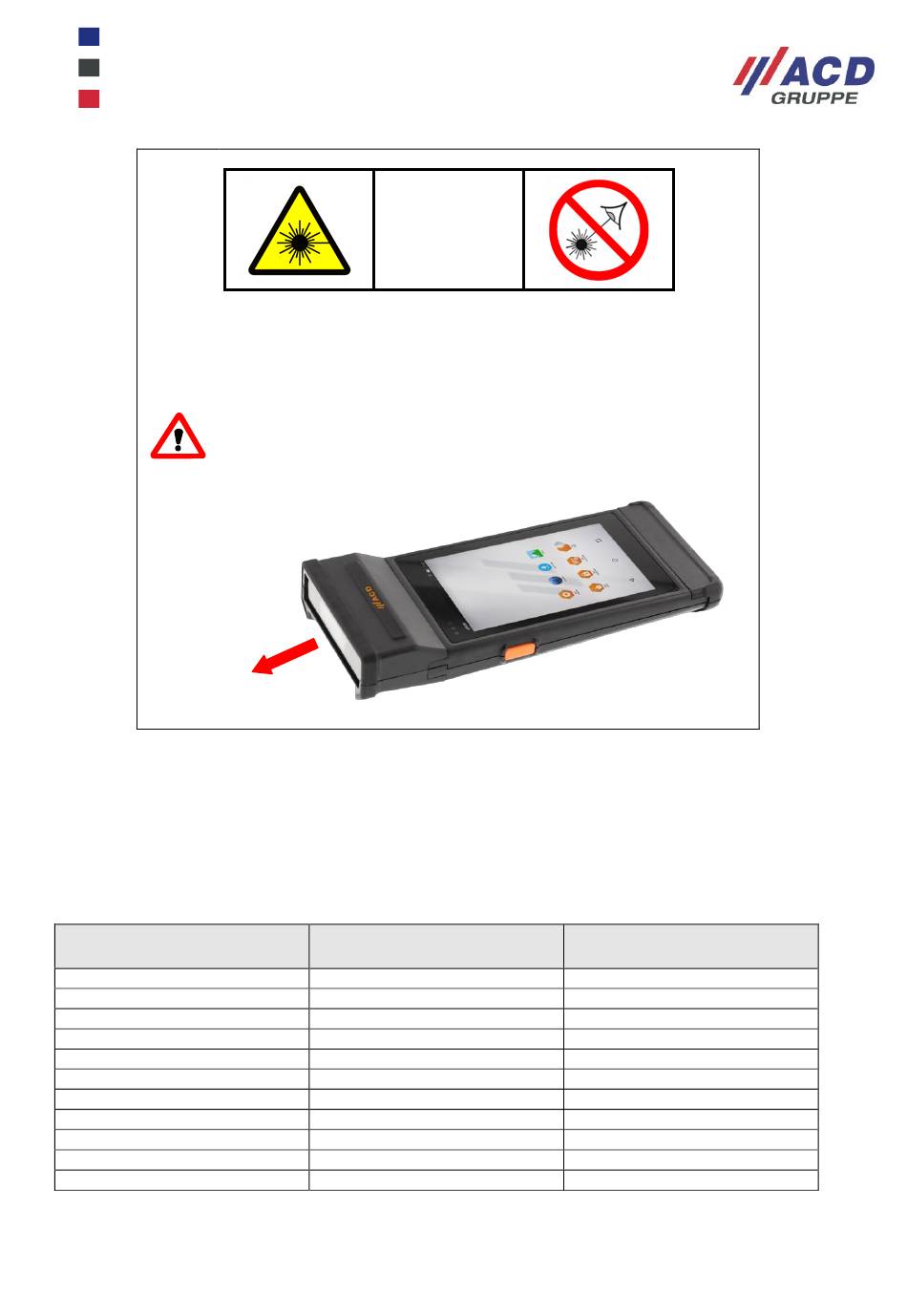

The laser warning label including laser classification is attached
CAUTION
on the bottom of the plug in module.
Laser
beam exit
25.6.4.3 Handling
After the M2Longrange attachable module has been plugged into the main device on the upper plug-slide
mechanism, it can be used for scanning 1D and 2D barcodes.
About pressing the buttons right or left of the main unit, the scanner can be triggered. After a succesfull
scanning an acoustic signal can be heard from the main unit.
25.6.4.4 Reading range
The table below contains the typical read distances of the M2Longrange SE4850 with laser aiming:
Barcode size
Code 39:
(Paper) 100 mil
Code 128:
(4 in. wide) 15 mil
(reflective) 100 mil
DataMatrix:
100% UPC:
* Depends on the width of the bar code (shorter bar codes can be read even closer, and wider bar code
farther)
** Range is reduced under lower ambient light level.
®
M2Smart SE_Set_Kurzübersicht_Brief Overview_V1.19_de_en
LASER
λ = 655 nm
min. distance
10 mil Approx. 7.6 cm *
20 mil Approx. 10.2 cm *
40 mil Approx. 15.2 cm *
55 mil Approx. 17.8 cm *
Approx. 50.8 cm *
15 mil Approx. 15.2 cm *
Approx. 20.3 cm *
Approx. 76.2 cm *
10 mil Approx. 12.7 cm
55 mil Approx. 12.7 cm
10 mil Approx. 8.9 cm
2
max. distance
Approx. 215.9 cm
Approx. 436.9 cm
Approx. 863.6 cm **
Approx. 1092.2 cm **
Approx. 1778.0 cm **
Approx. 254.0 cm
Approx. 254.0 cm
Approx. 1778.0 cm
Approx. 114.3 cm
Approx. 635.0 cm
Approx. 228.6 cm
77 / 88
